Hydraulic tools

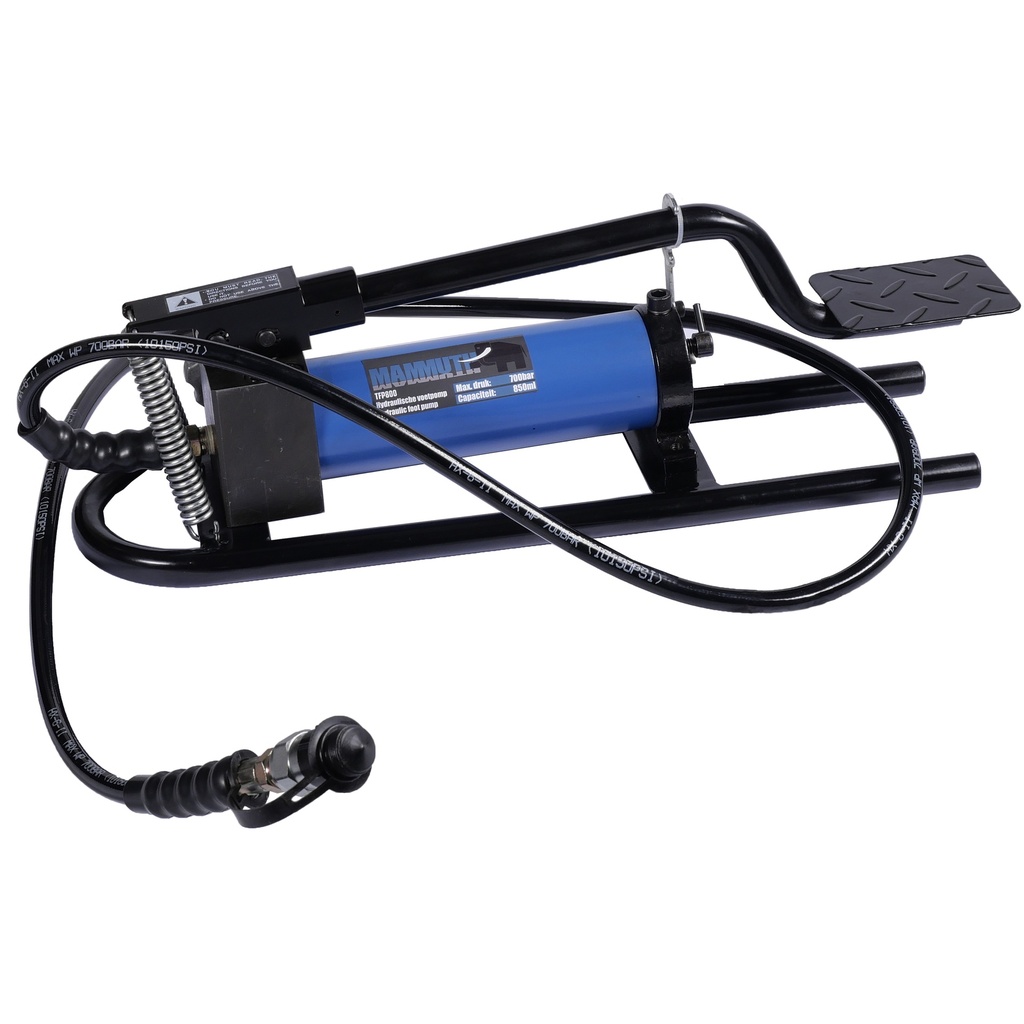

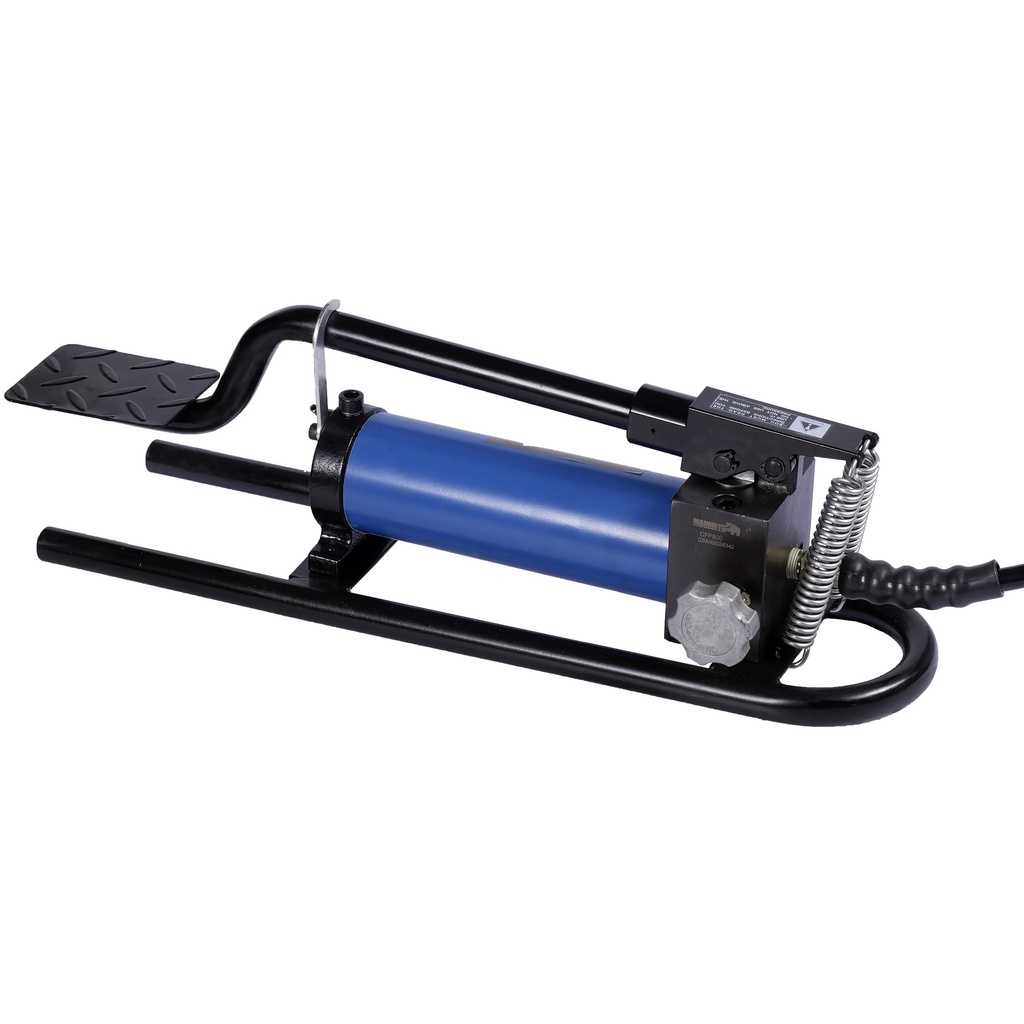

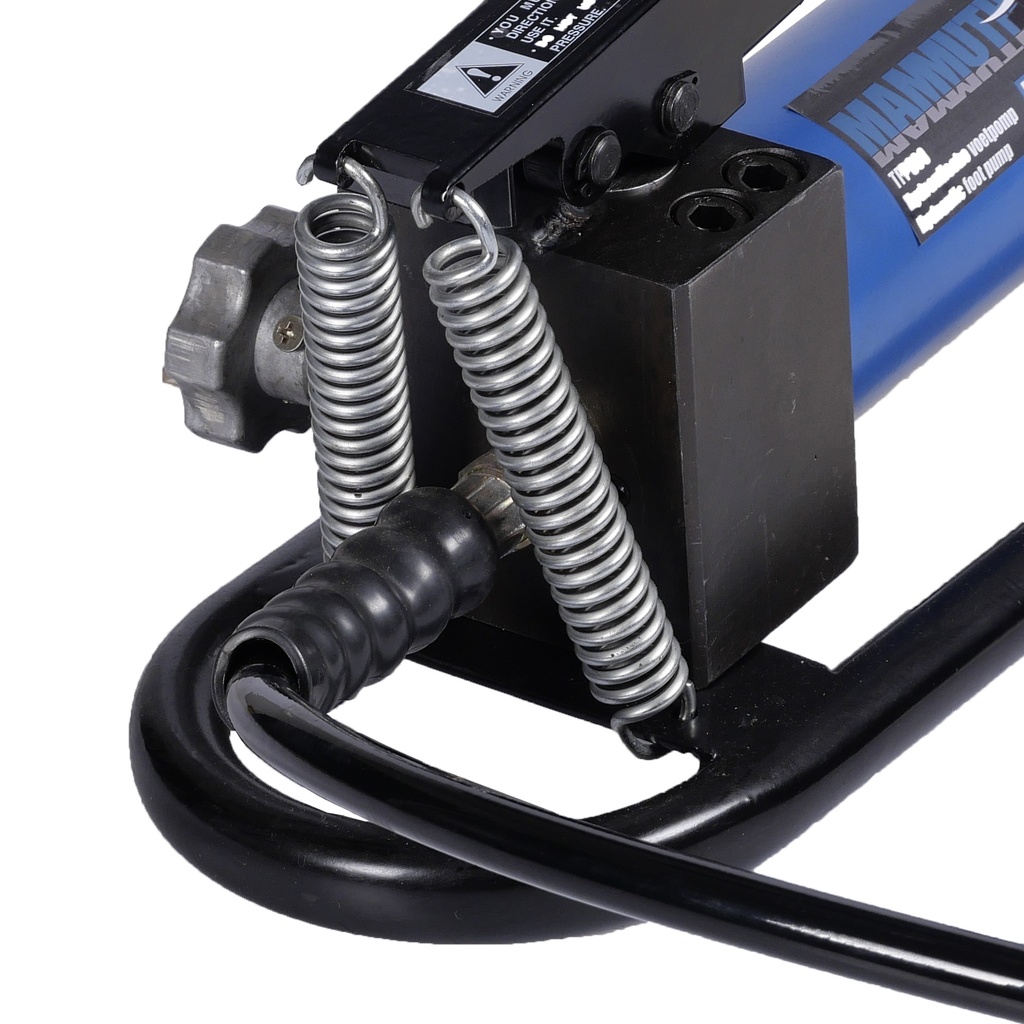

Hydraulic foot pump 700 bar 480ml

Article no. TFP800

Foot operation
700 bar working pressure
Dual-stage pump
Includes hose and C19M quick coupling

Working pressure max.: 700 bar
Oil capacity: 700 cc
Pressure low setting: 20 Bar
Pressure high setting: 700 Bar

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

Powerful hydraulic foot-operated pump with dual-stage function for fast and precise operation. Ideal for use with hydraulic tools in workshops or industrial environments.

Foot operation

Allows hands-free working, giving you full control over the connected tool.

700 bar working pressure

Suitable for heavy-duty applications requiring high pressure, such as presses, jacks, and pullers.

Dual-stage pump

Fast oil delivery at low pressure and precise control at high pressure — efficient and accurate.

Includes hose and C19M quick coupling

Ready to use straight out of the box with supplied hydraulic hose and universal coupling.

Specifications

Working pressure max.	700 bar
Oil capacity	700 cc
Pressure low setting	20 Bar
Pressure high setting	700 Bar
Output volume low pressure	11 ml per stroke
Output volume high pressure	1.4 ml per stroke
