Hydraulic tools

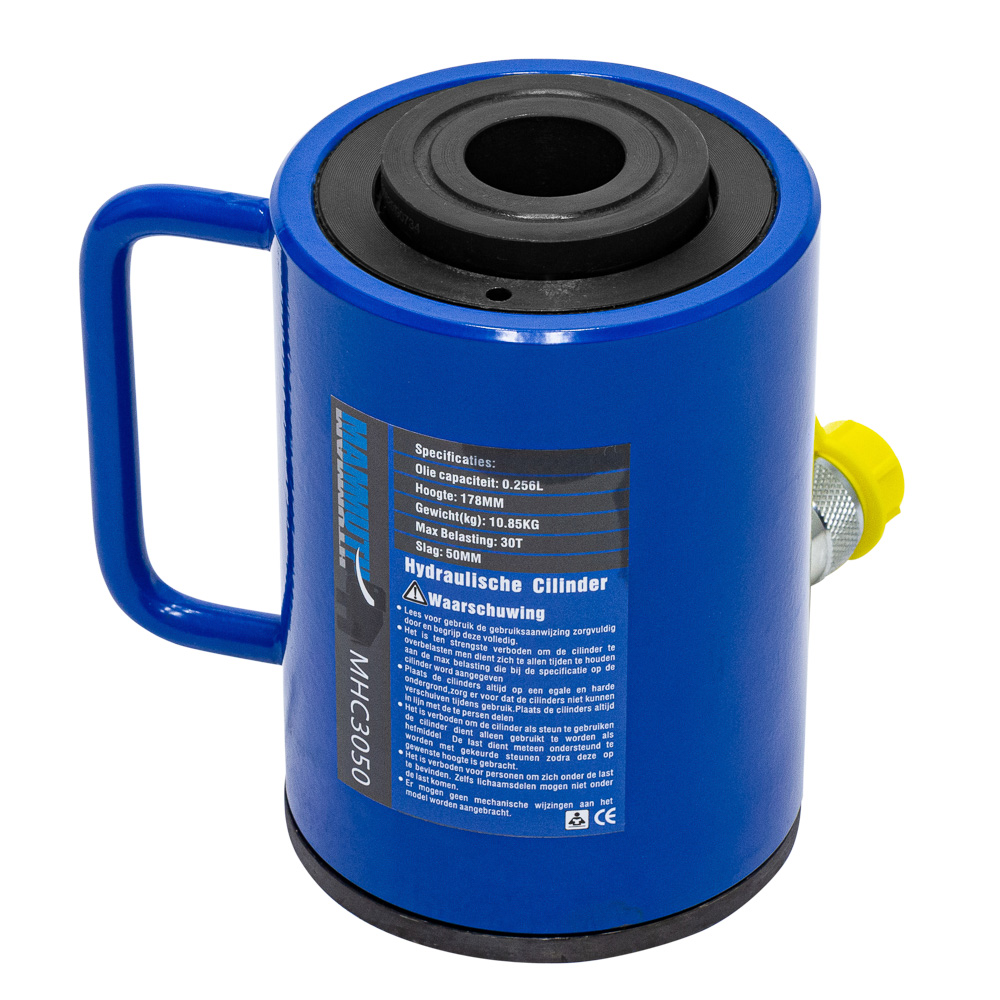

Hollow cylinder 30 ton stroke 50mm

Article no. MHC3050

Incl. side handles
700 bar max working pressure
Adjustable top saddle
Hard coat finish
High-strength

Capacity: 20 Ton
Stroke: 50 mm
Pressure max.: 700 Bar
Oil capacity: 0.256 L

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

Specifications

Capacity	20 Ton
Stroke	50 mm
Pressure max.	700 Bar
Oil capacity	0.256 L
Outside diameter	118 mm
Effective pressure area	51.1 cm²
Bore diameter	95 mm
Principal axis diameter	70 mm
Plunger diameter	34 mm
Oil supply hole thread (Rc)	3/8"
Top cap height	9 mm
