Hydraulic tools

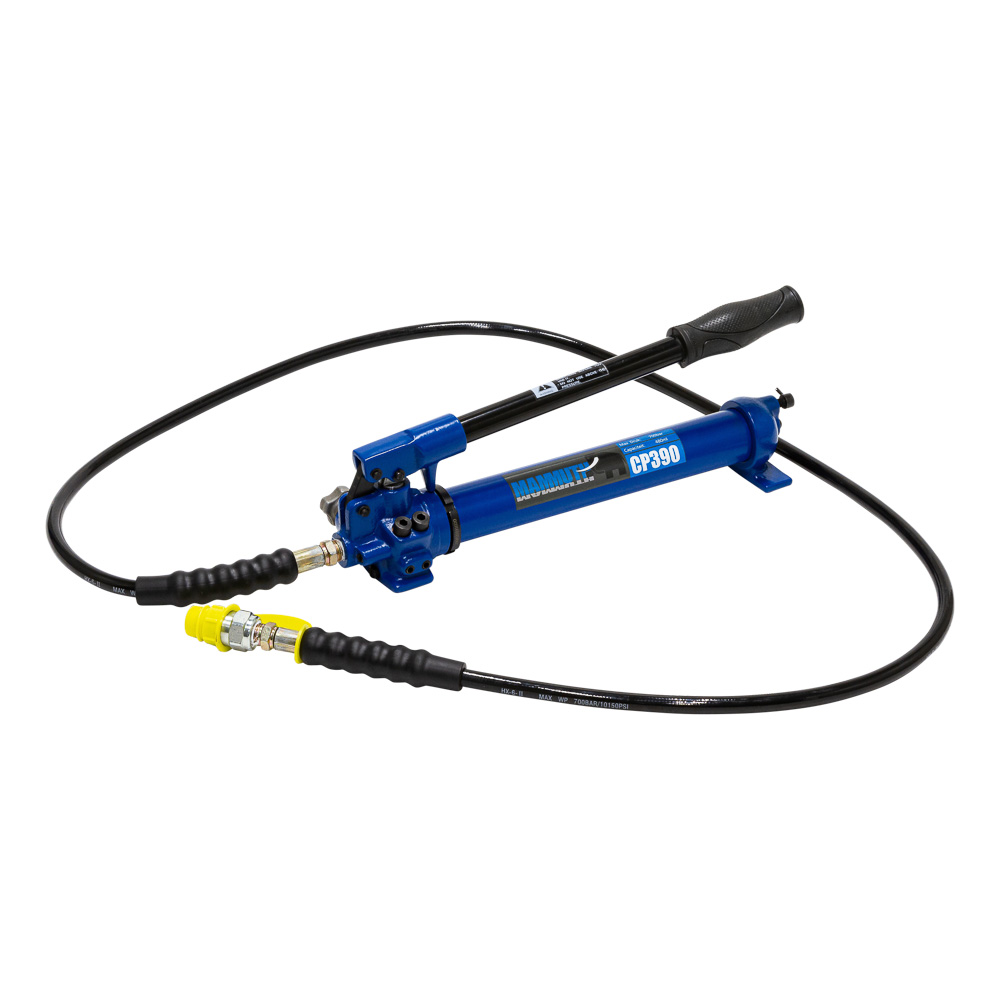

Hydraulic hand pump 700 bar 320ml
Article no. CP390
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic hand pump
Hydraulic operated pump to drive crimping head, cutting heads and punching head. Including high pressure hose and couple plug.
- max. output pressure: low pressure = 20 bar / 2MPa
high pressure = 700 bar / 70MPa
- output of the oil: low pressure = 10cc / 10ml
high pressure = 1.8cc / 1.8ml
- capacity of the oil = 320ml
Specifications
Product dimensions
| Weight | 5 kg |
|---|
Package dimensions
| Length | 610 mm |
|---|---|
| Width | 230 mm |
| Height | 145 mm |
| Weight | 6 kg |
EAN 8720028080441
