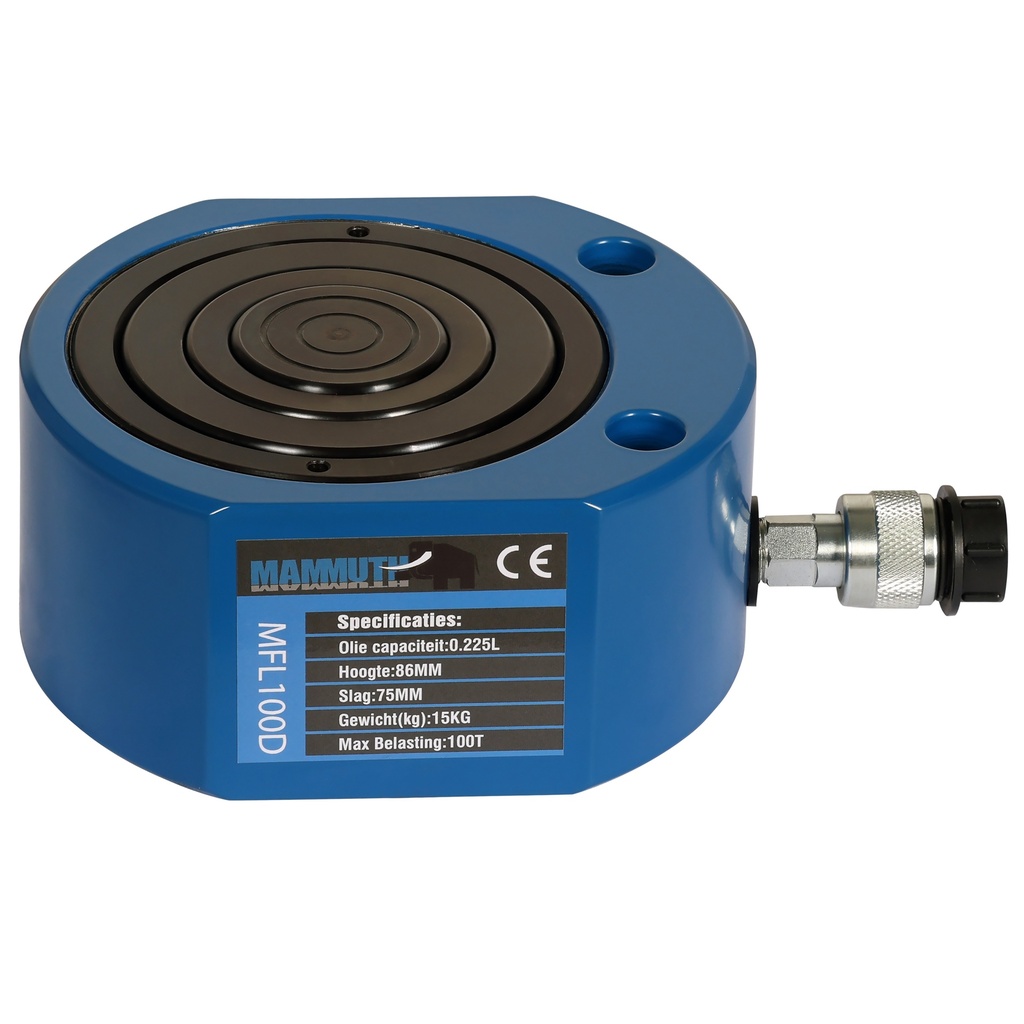

Flat cylinder double 100 ton stroke 75mm

Article no. MFL100D

Capacity: 100 ton
Pressure max.: 700 Bar
Stroke: 75 mm
Effective pressure area: 95cm²

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

Flat cylinder double

The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.

Specifications

Capacity	100 ton
Pressure max.	700 Bar
Stroke	75 mm
Effective pressure area	95cm²
Oil capacity	0.225 L
Cylinder height	86 mm
Outside diameter	185 x 160 mm
Bore diameter	130 mm
Plunger diameter	110 mm
