Hydraulic tools

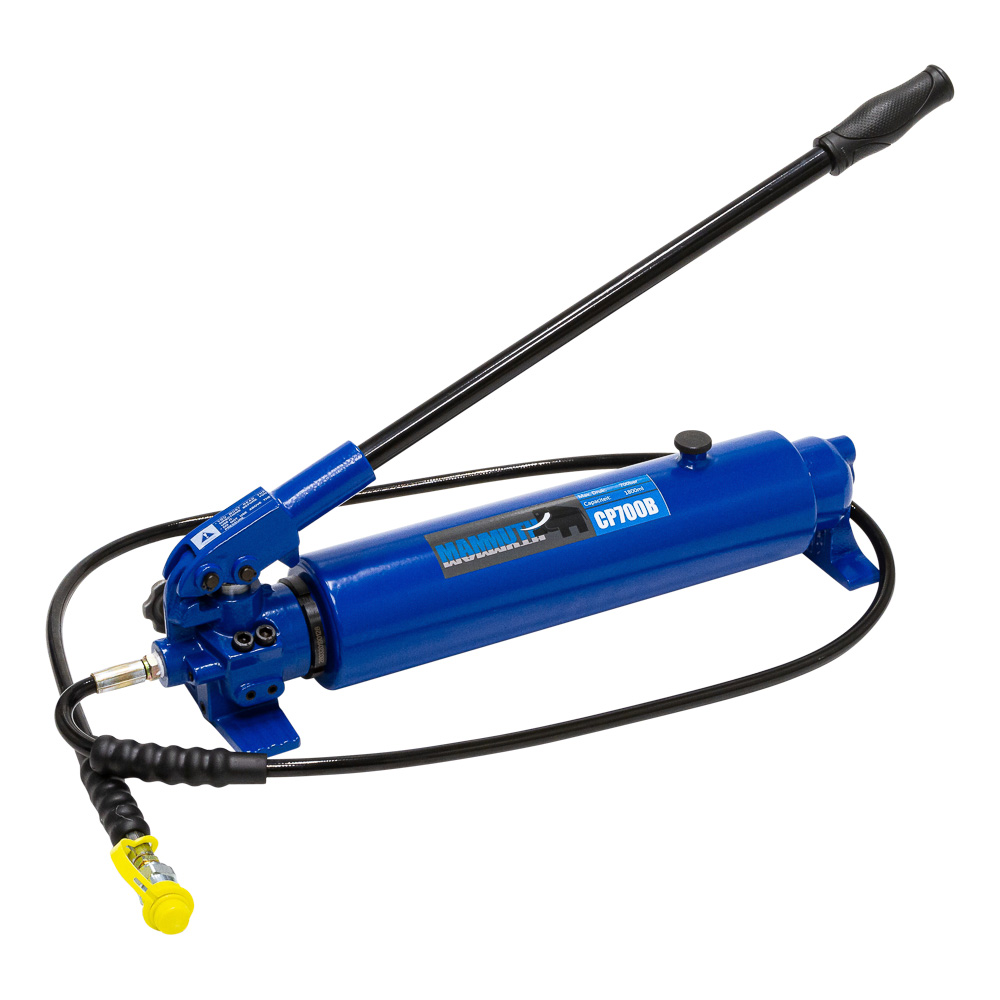

Hydraulic hand pump 700 bar 2000ml
Article no. CP700B
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic hand pump
Hydraulic operated pump to drive crimping head, cutting heads and punching head. Including 2M high pressure hose and couple plug.
- max. output pressure: low pressure = 20 bar / 2MPa
high pressure = 700 bar / 70MPa
- output of the oil: low pressure = 13cc / 13ml
high pressure = 2.3cc / 2.3ml
- capacity of the oil = 2000ml
Specifications
Product dimensions
| Length | 510 mm |
|---|---|
| Width | 140 mm |
| Height | 160 mm |
| Weight | 12.25 kg |
Package dimensions
| Length | 770 mm |
|---|---|
| Width | 225 mm |
| Height | 250 mm |
| Weight | 14 kg |
EAN 8720028080427
