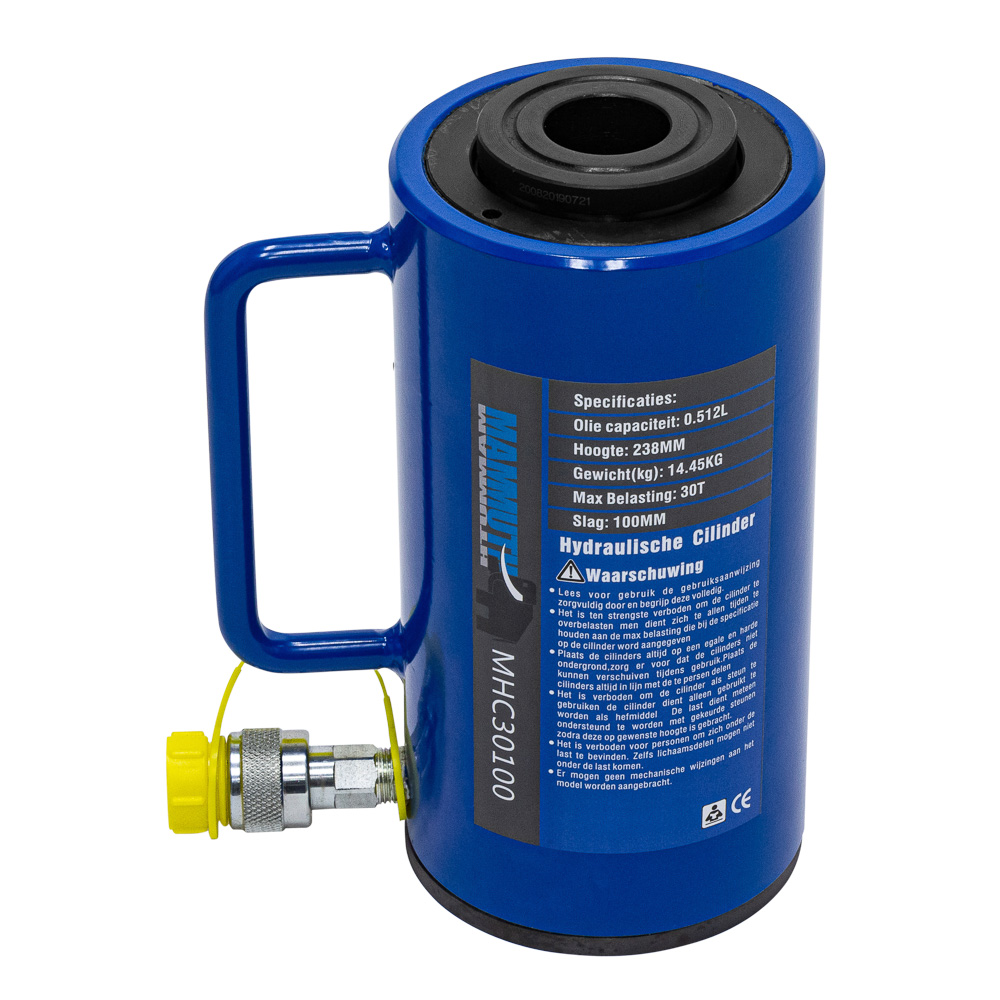

Hollow cylinder 30 ton stroke 100mm
Article no. MHC30100
- Incl. side handles
- 700 bar max working pressure
- Adjustable top saddle
- Hard coat finish
- High-strength
- Capacity
- 30 Ton
- Stroke
- 100 mm
- Pressure max.
- 700 Bar
- Oil capacity
- 0.512 L
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
Specifications
| Capacity | 30 Ton |
|---|---|
| Stroke | 100 mm |
| Pressure max. | 700 Bar |
| Oil capacity | 0.512 L |
| Outside diameter | 118 mm |
| Effective pressure area | 51.1 cm² |
| Bore diameter | 95 mm |
| Principal axis diameter | 70 mm |
| Plunger diameter | 34 mm |
| Oil supply hole thread (Rc) | 3/8" |
| Top cap height | 9 mm |
Product dimensions
| Length | 190 mm |
|---|---|
| Width | 120 mm |
| Height | 240 mm |
| Weight | 13.4 kg |
Package dimensions
| Length | 390 mm |
|---|---|
| Width | 190 mm |
| Height | 210 mm |
| Weight | 15 kg |
EAN 8720028053391
