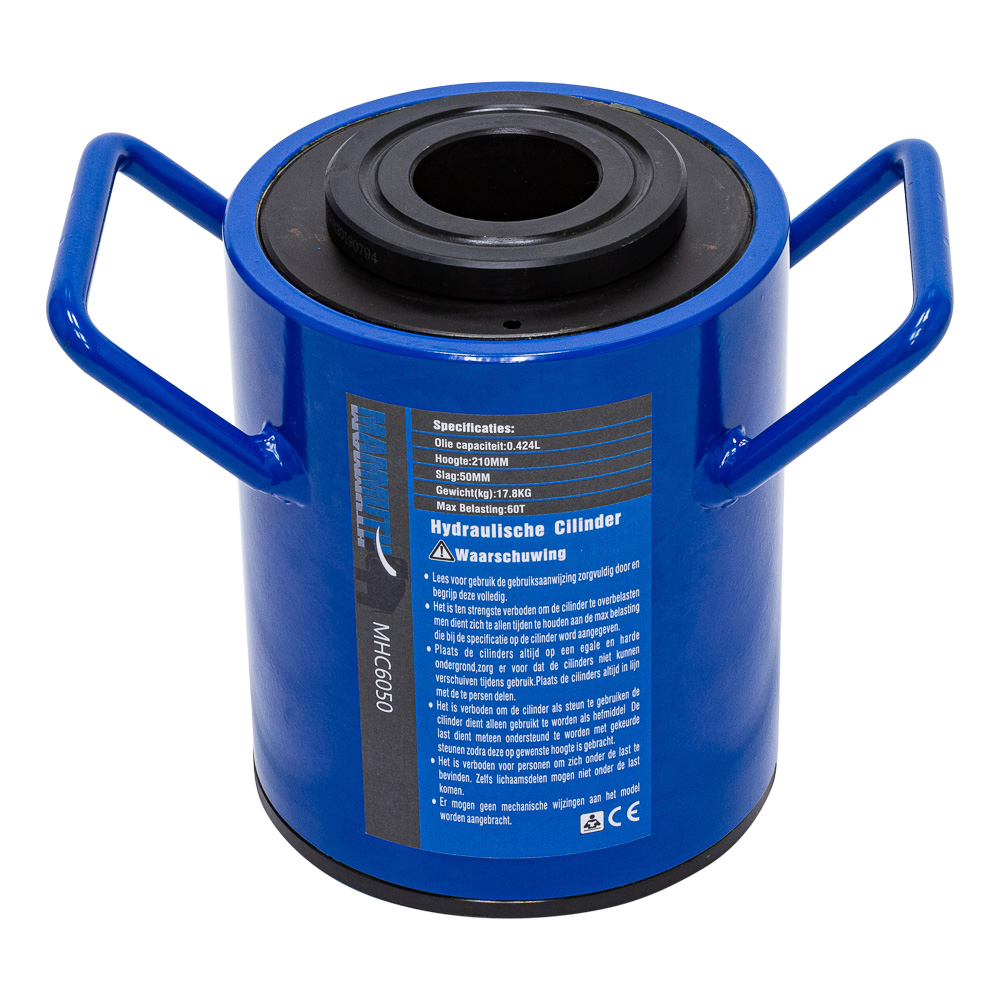

Hollow cylinder 60 ton stroke 50mm
Article no. MHC6050
- Incl. side handles
- 700 bar max working pressure
- Adjustable top saddle
- Hard coat finish
- High-strength
- Capacity
- 60 Ton
- Stroke
- 50 mm
- Pressure max.
- 700 Bar
- Oil capacity
- 0.424 L
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
Specifications
| Capacity | 60 Ton |
|---|---|
| Stroke | 50 mm |
| Pressure max. | 700 Bar |
| Oil capacity | 0.424 L |
| Outside diameter | 165 mm |
| Effective pressure area | 84.7 cm² |
| Bore diameter | 135 mm |
| Principal axis diameter | 100 mm |
| Plunger diameter | 54 mm |
| Oil supply hole thread (Rc) | 3/8" |
| Top cap height | 12 mm |
Product dimensions
| Length | 235 mm |
|---|---|
| Width | 165 mm |
| Height | 210 mm |
| Weight | 26 kg |
Package dimensions
| Length | 300 mm |
|---|---|
| Width | 295 mm |
| Height | 310 mm |
| Weight | 27 kg |
EAN 8720028053360
