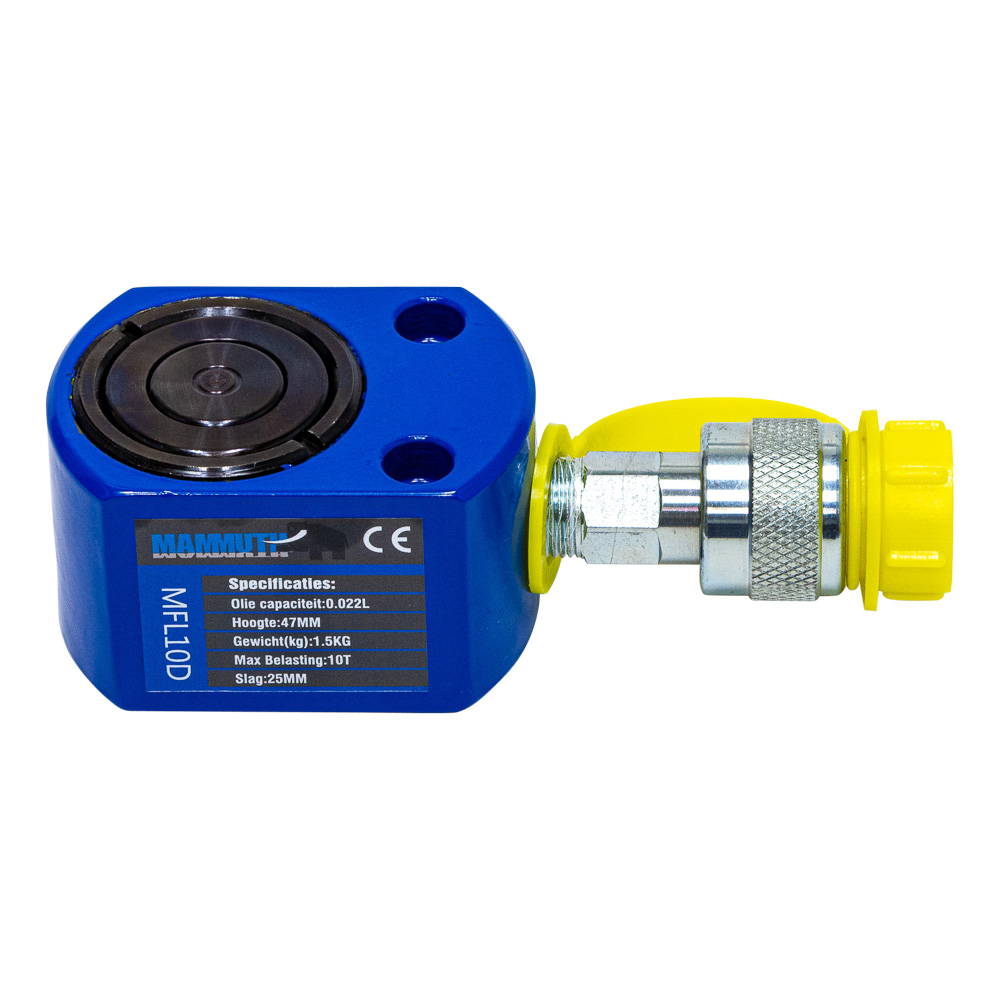

Flat cylinder double 10 ton stroke 25mm

Flat cylinder double

The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.

• output = 10 ton

• stroke = 25mm

• effective area = 11,3cm^2

• oil capacity = 0,022 L

• height of product = 47mm

• extended height = 74mm

• outside diameter = 81x56mm

• bore diameter = 43mm

• plunger diameter = 38mm

• max. pressure = 700bar
