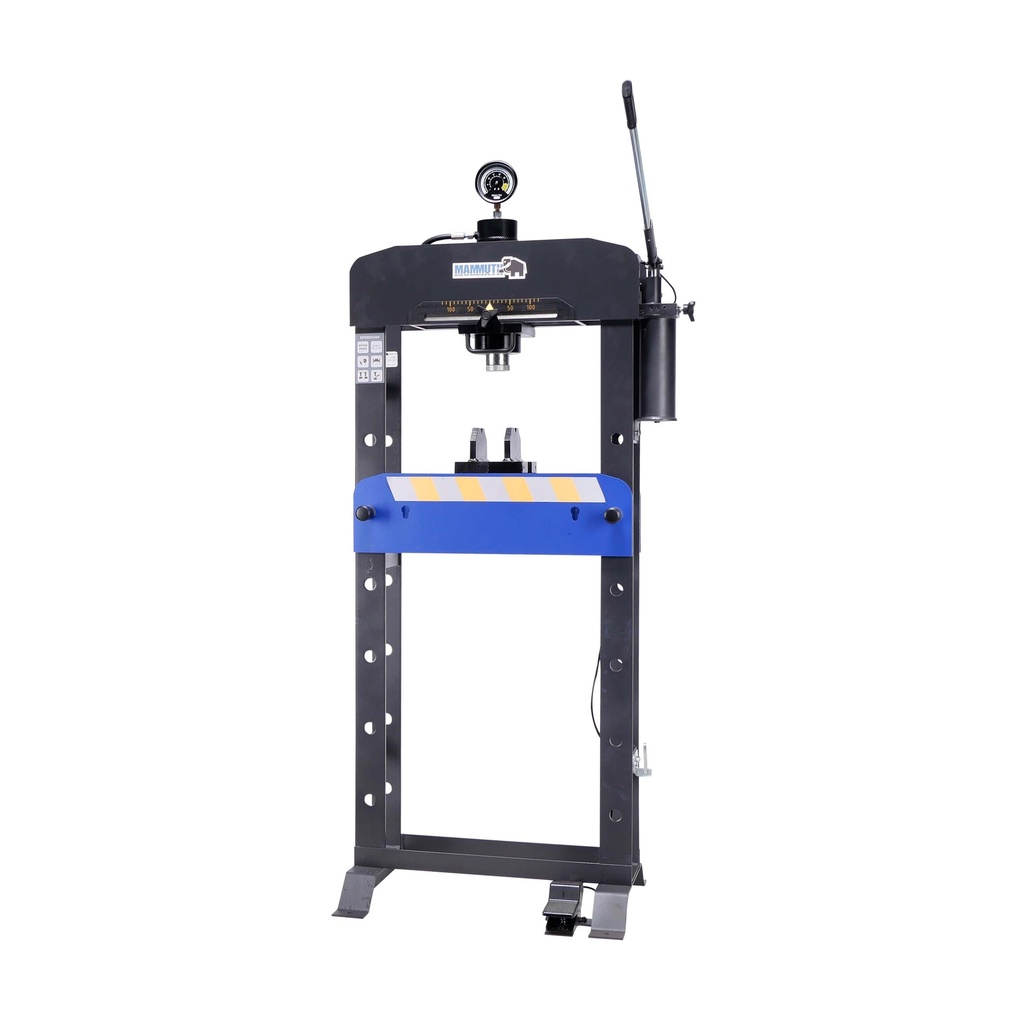

Workshop press air hydraulic with foot pedal 30 tons

Article no. SP30XHAM

Two-stage pump
Adjustable workbed
Side-adjustable cylinder with scale
Interchangeable press adapter
Pneumatic foot pedal

Capacity: 30 ton
Workbed width: 540 mm
Workbed depth: 148 mm
Minimum working height: 75 mm

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame and smooth operation, this press is a reliable choice for any workshop. The press comes with 2 press blocks.

Two-stage pump: First fast, then precise pressing.
Adjustable workbed: Easily secured at 6 different heights.
Side-adjustable cylinder with scale: For precise positioning.
Interchangeable press adapter: Easily removable for using other attachments.
Pneumatic foot pedal: Effortless operation and keeps your hands free.

Specifications

Capacity	30 ton
Workbed width	540 mm
Workbed depth	148 mm
Minimum working height	75 mm
Maximum working height	915 mm
Cylinder stroke	180 mm
Cylinder diameter	ø60 mm
Working air pressure	8 - 12 bar
Air connection	1/4 NPT
Oil capacity	1.2 L
Oil type	OKCH68
