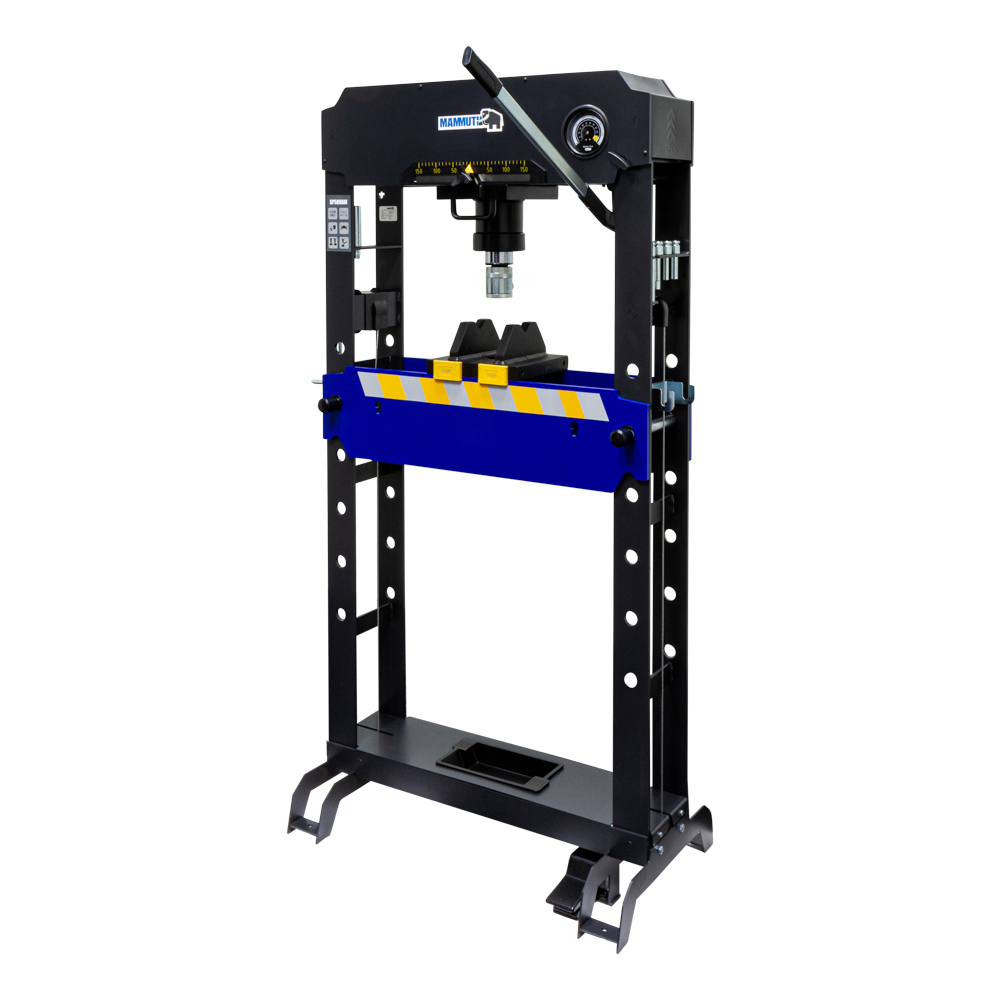

Shop press air hydraulic with foot pedal 50 ton

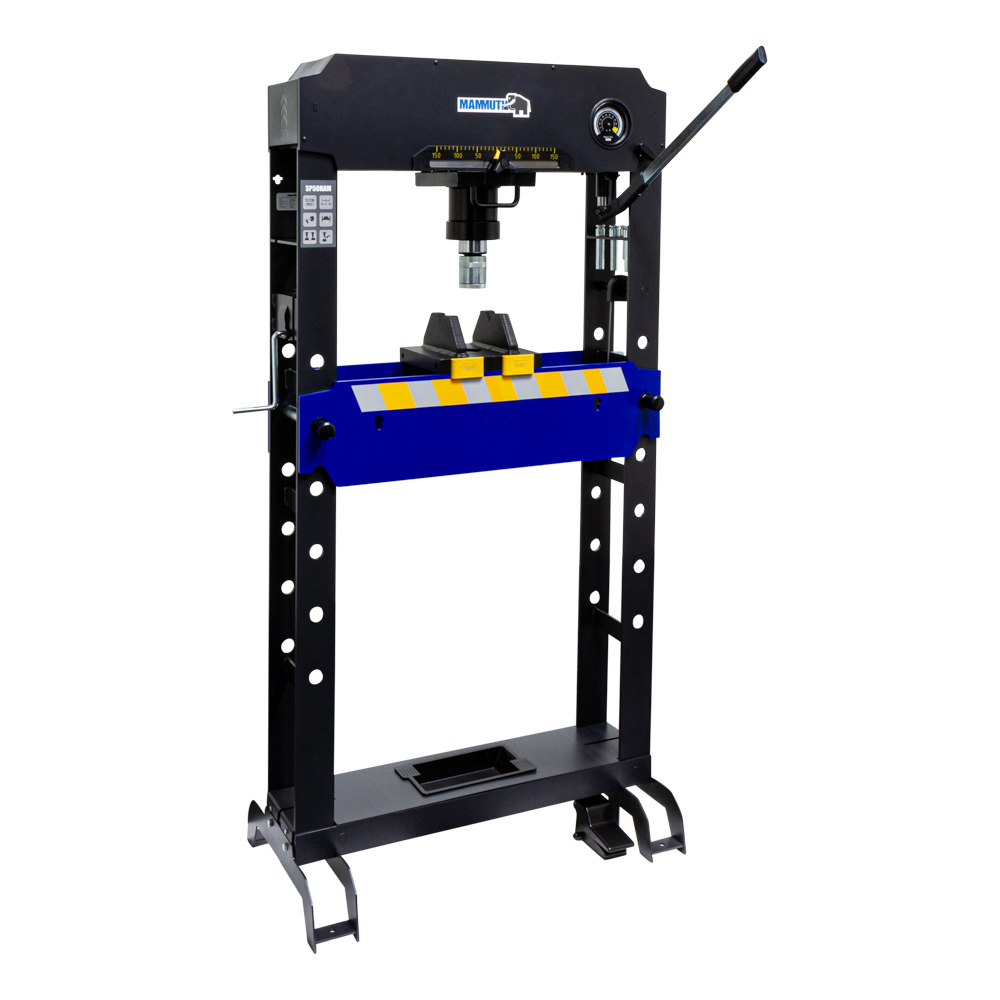

Shop press air hydraulic with foot pedal 50 ton (2)

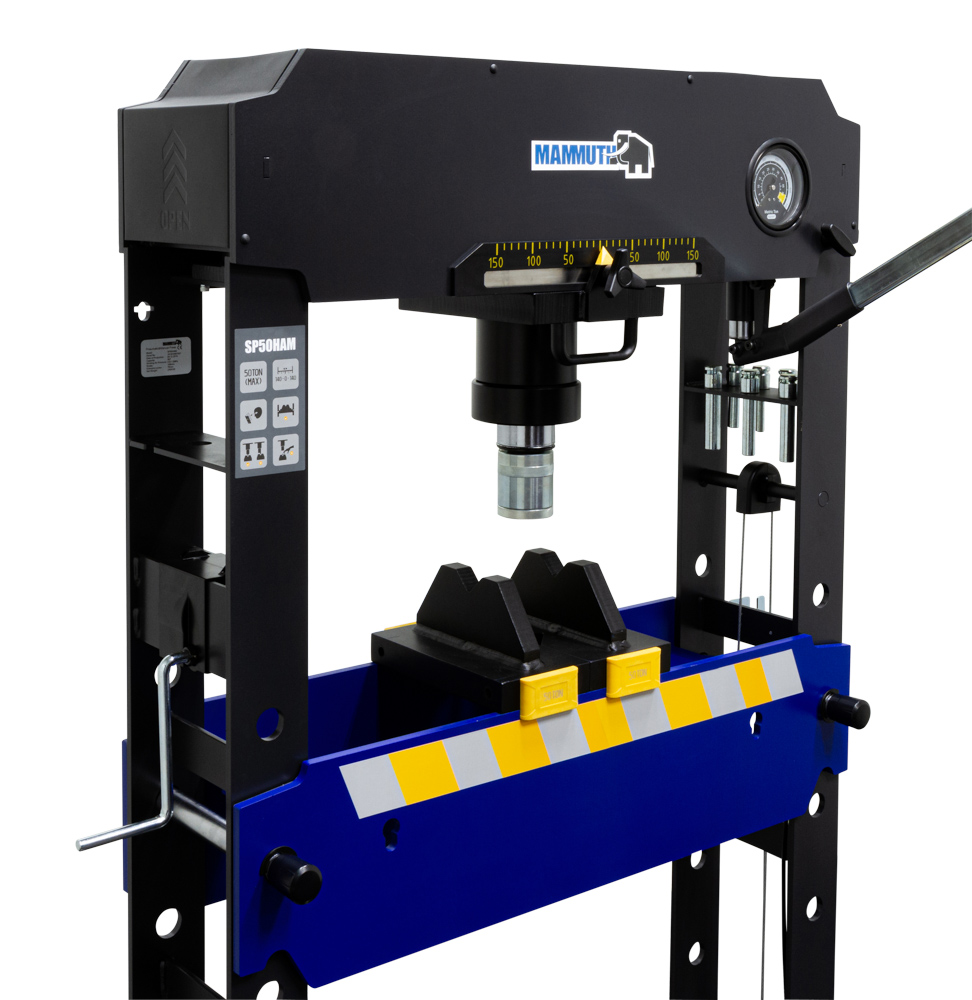

Shop press air hydraulic with foot pedal 50 ton (3)

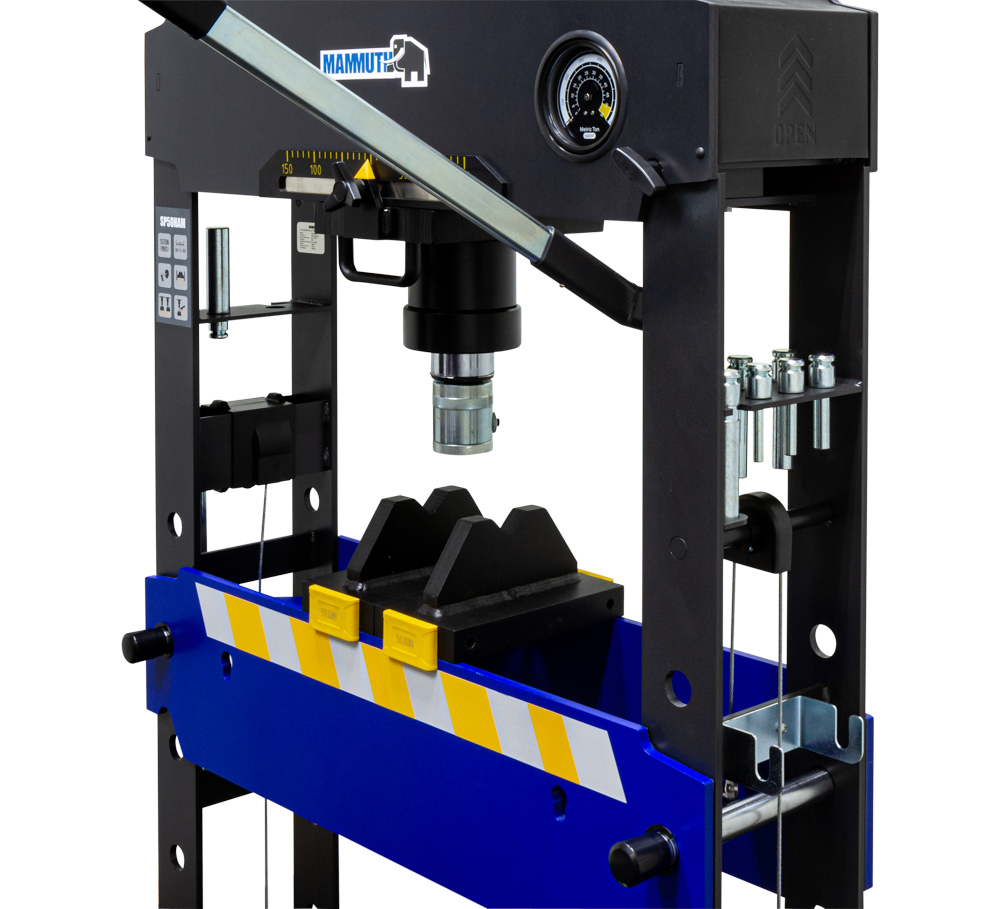

Shop press air hydraulic with foot pedal 50 ton (4)

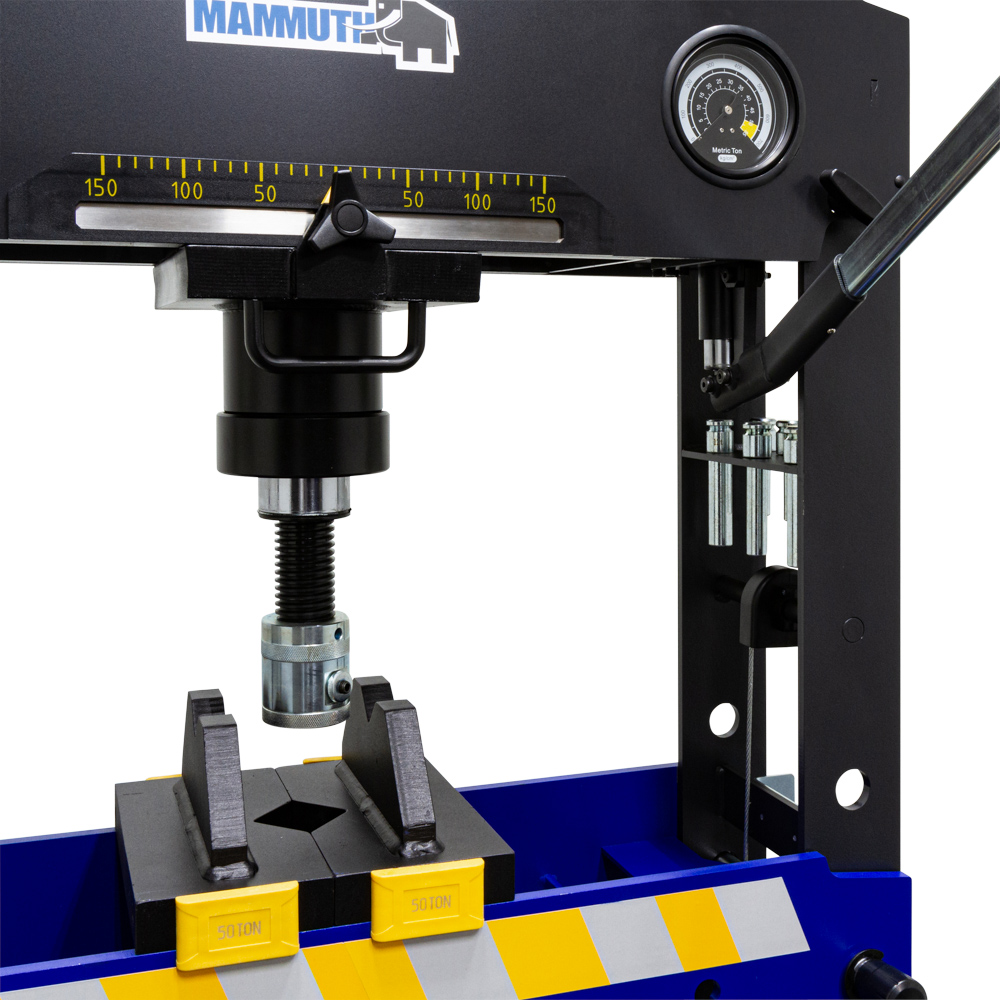

Shop press air hydraulic with foot pedal 50 ton (5)

Workshop presses

Shop press air hydraulic with foot pedal 50 ton

Article no. SP50HAM

Two-stage pump
Hand winch workbed
Adjustable cylinder with scale
Quick-change press head including 8 pressing pins
Pneumatic foot pedal

Capacity: 50 ton
Workbed width: 750 mm
Workbed depth: 200 mm
Minimum working height: 80 mm

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

This Mammuth workshop press is a powerful and versatile machine. Ideal for installing and removing bearings, straightening metal parts, and pressing shafts and bolts. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press offers power and precision. This makes it a reliable choice for any workshop. The press is supplied with 2 pressing blocks.

Two-stage pump: First fast, then precise pressing.
Hand winch workbed: Easily adjustable with the winch at 6 different heights.
Adjustable cylinder with scale: Side adjustable and extendable via the screw spindle for precise positioning.
Quick-change press head including 8 pressing pins: Easy to clip on and secure.
Pneumatic foot pedal: Effortless operation and keeps your hands free.

Specifications

Capacity	50 ton
Workbed width	750 mm
Workbed depth	200 mm
Minimum working height	80 mm
Maximum working height	780 mm
Length of screw spindle	75 mm
Cylinder stroke	220 mm
Cylinder diameter	ø67 mm
Working air pressure	8 - 12 bar
Air connection	1/4 NPT
Oil capacity	2.5 L
Oil type	OKCH68
