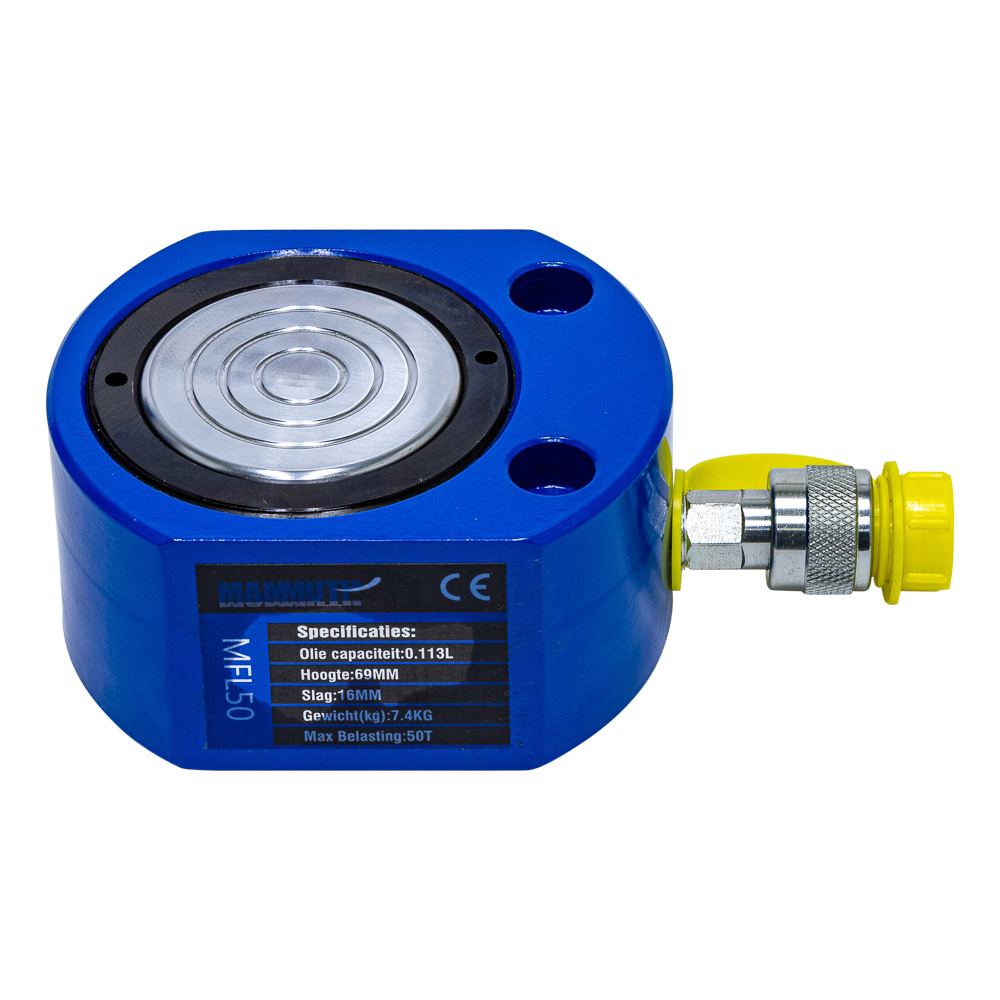

Flat cylinder 50 ton stroke 16mm

Flat cylinder

This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.

• output = 50 Ton

• stroke = 16mm

• effective area = 56,7cm^2

• oil capacity = 0.113 L

• height of product = 69mm

• extended height = 85mm

• outside diameter = 138x115mm

• bore diameter = 95mm

• plunger diameter = 85mm

• thread for oil input = 3/8''-19

• saddle protusion form Plgr = 2mm

• max. pressure = 700bar
