Workshop presses

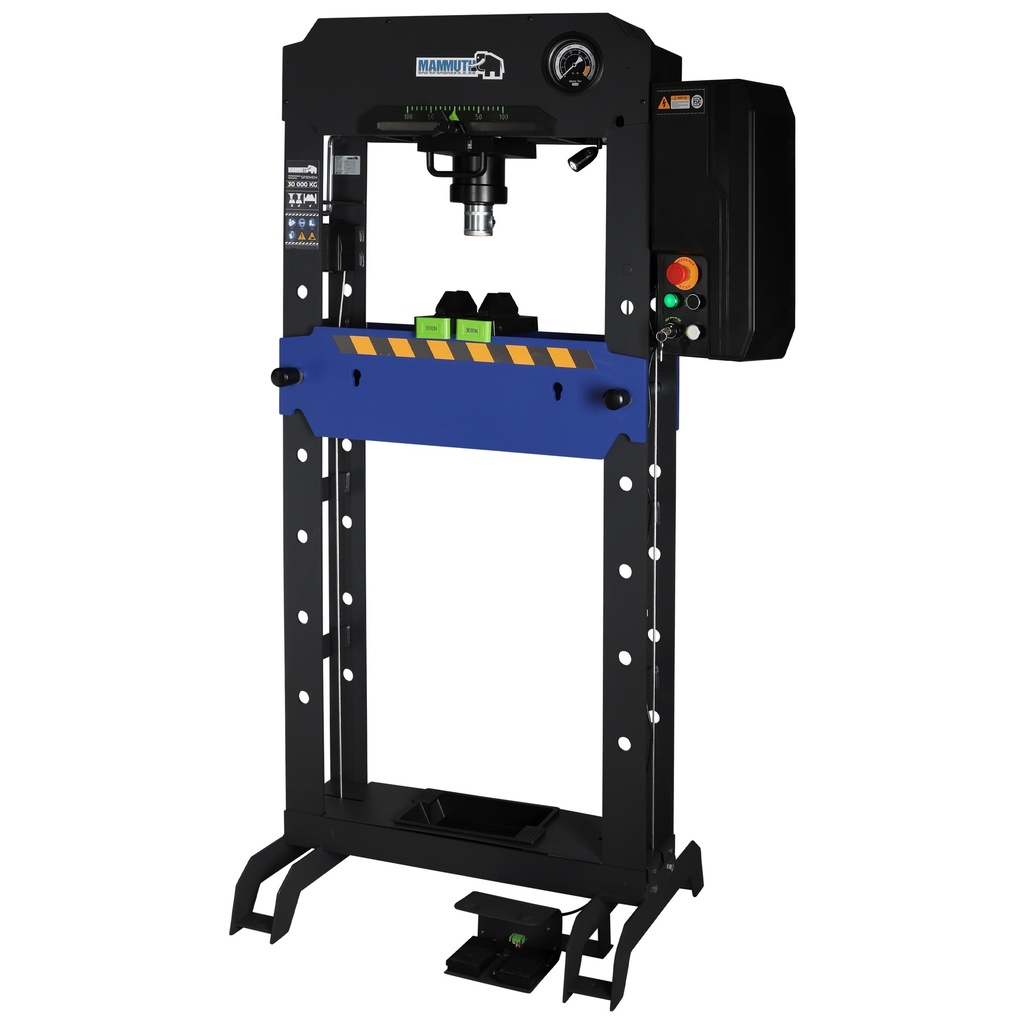

Mammuth 30 ton electric workshop press
Article no. SP30HEM
- Electric control and foot pedal
- Hand winch work table
- Adjustable cylinder with scale
- Quick-change press head
- LED lighting
- Press capacity
- 30 ton
- Suitable for professional use
- Yes
- Control type
- Electric with foot pedal
- Power supply
- 230V
- Available through our dealer network
- Advice on the right capacity from your dealer
Description

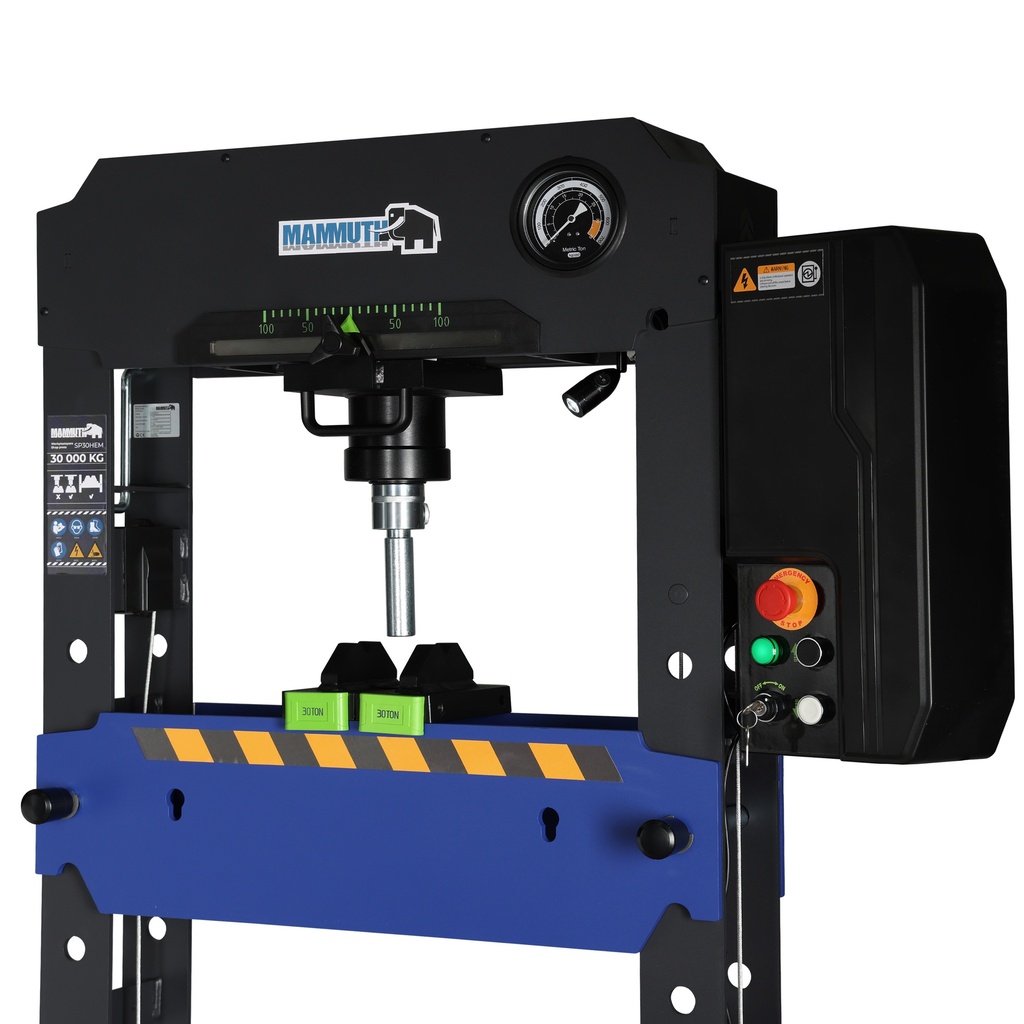

Mammuth 30 ton hydraulic shop press with electric control is designed for professional use in workshops, garages, and industrial environments. This press is suitable for various pressing tasks such as installing and removing bearings, shafts, bushings, bolts, and other mechanical components.

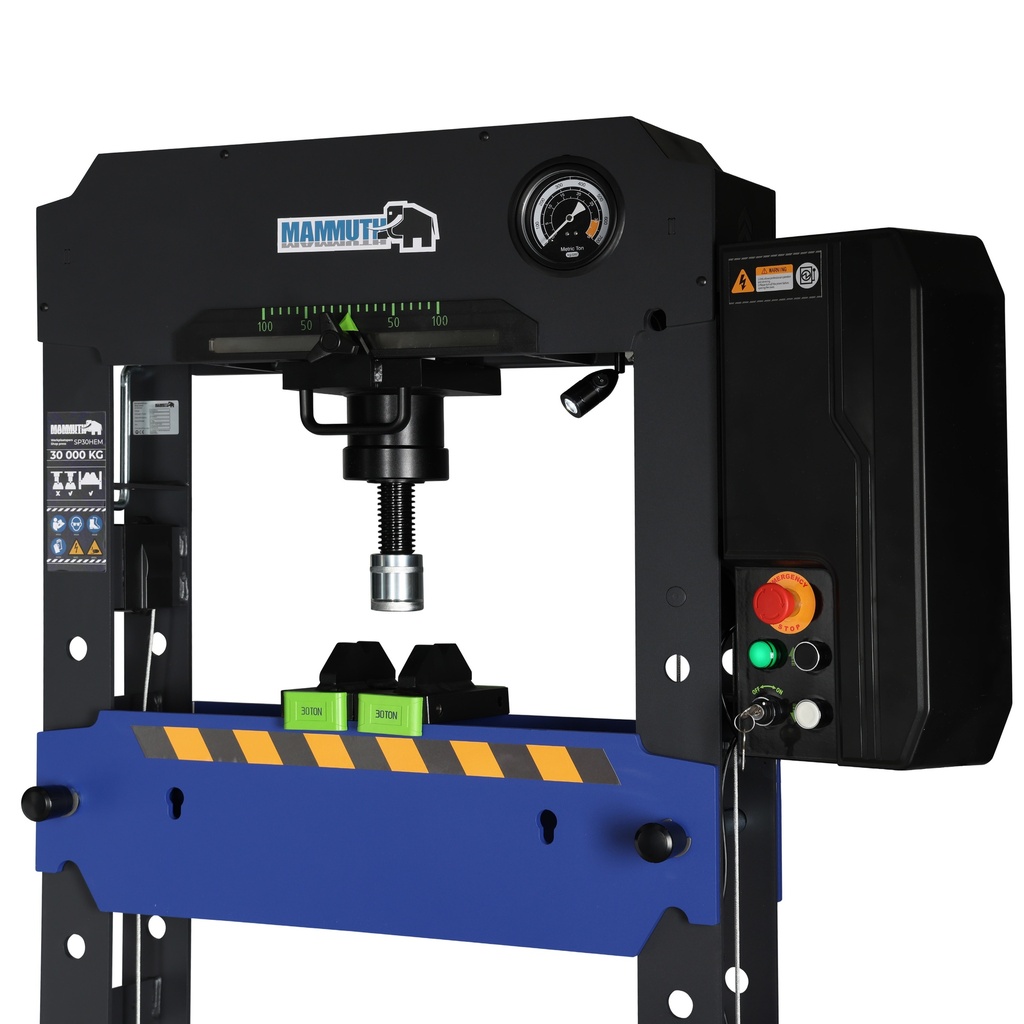

The laterally adjustable cylinder allows for precise positioning, while the screw spindle ensures accurate adjustment. With the scale and integrated pressure gauge, you always have clear insight into the exact position and pressure, making precise work easy.
Comfortable and controlled operation is enabled by electric control, which can be used both manually and via the foot pedal. Combined with the quick-change mounting adapter, work can be done quickly and effortlessly, without physical strain. The worktable is adjustable in six heights via a hand winch, providing extra flexibility during work.
A fully welded steel frame forms a sturdy base. Thanks to integrated LED lighting, you always have good visibility of the work area. The hydraulic press is delivered complete with two robust press blocks.
Key Features:
- Electric hand and foot control
Fast, effortless operation.

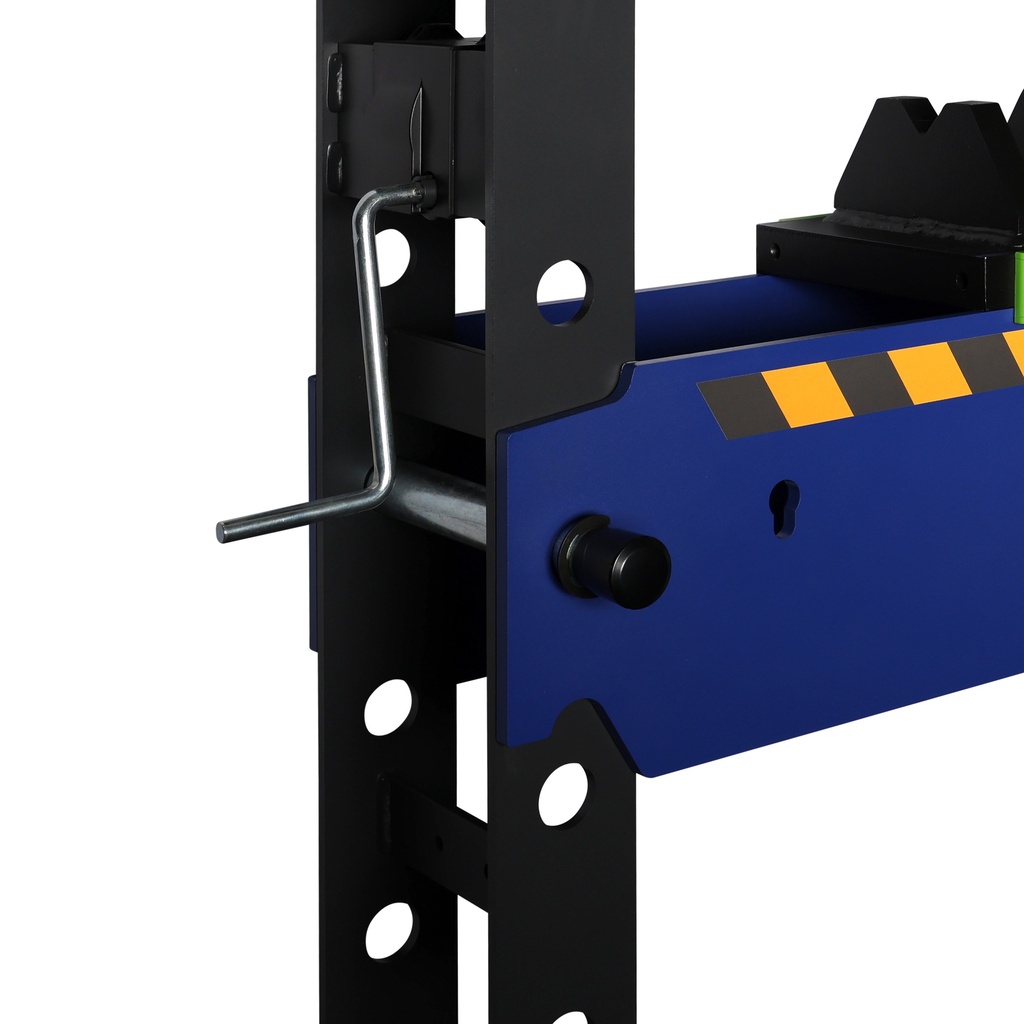

- Adjustable press bed with hand winch
Easily set height in 6 positions with hand winch.
-

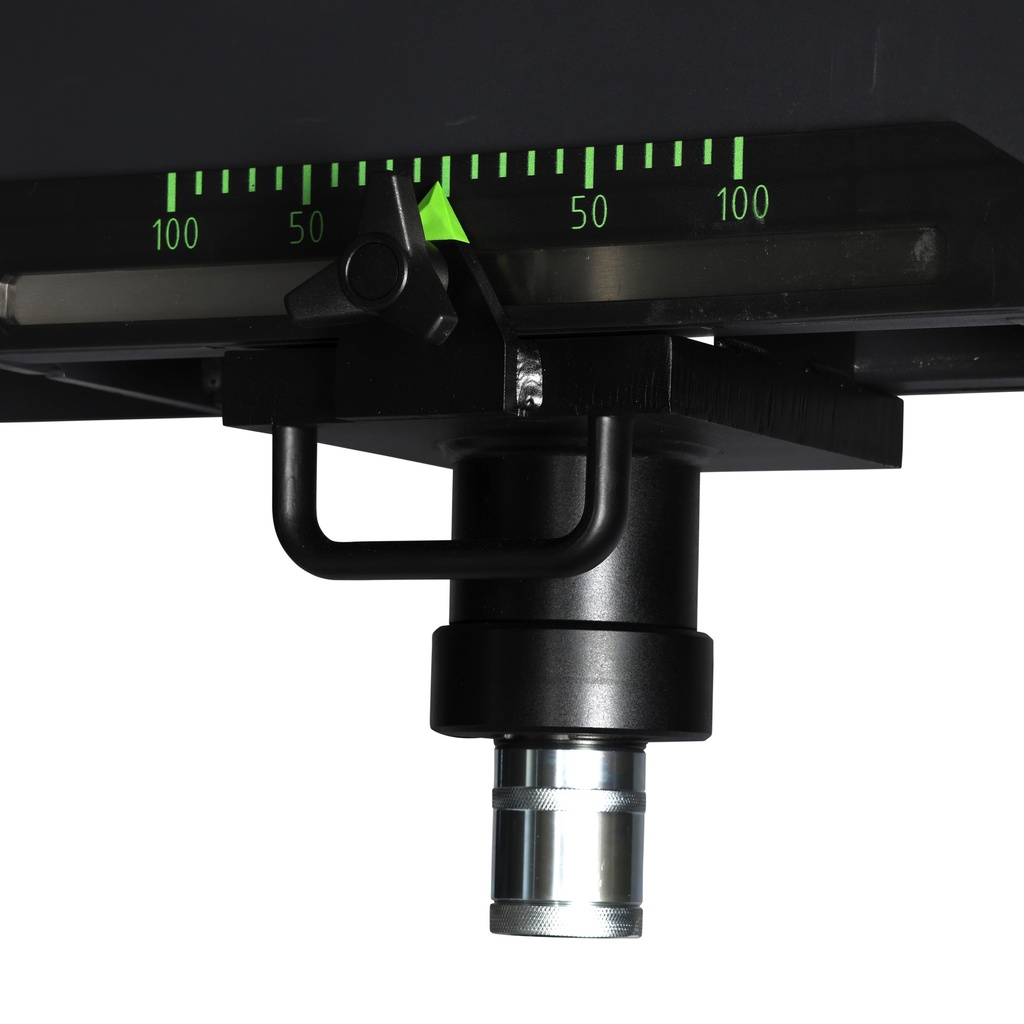

Adjustable cylinder with scale
Lateral adjustment and screw-out positioning.
- Quick-release mounting head
Easy to detach and secure for fast changing of press heads.

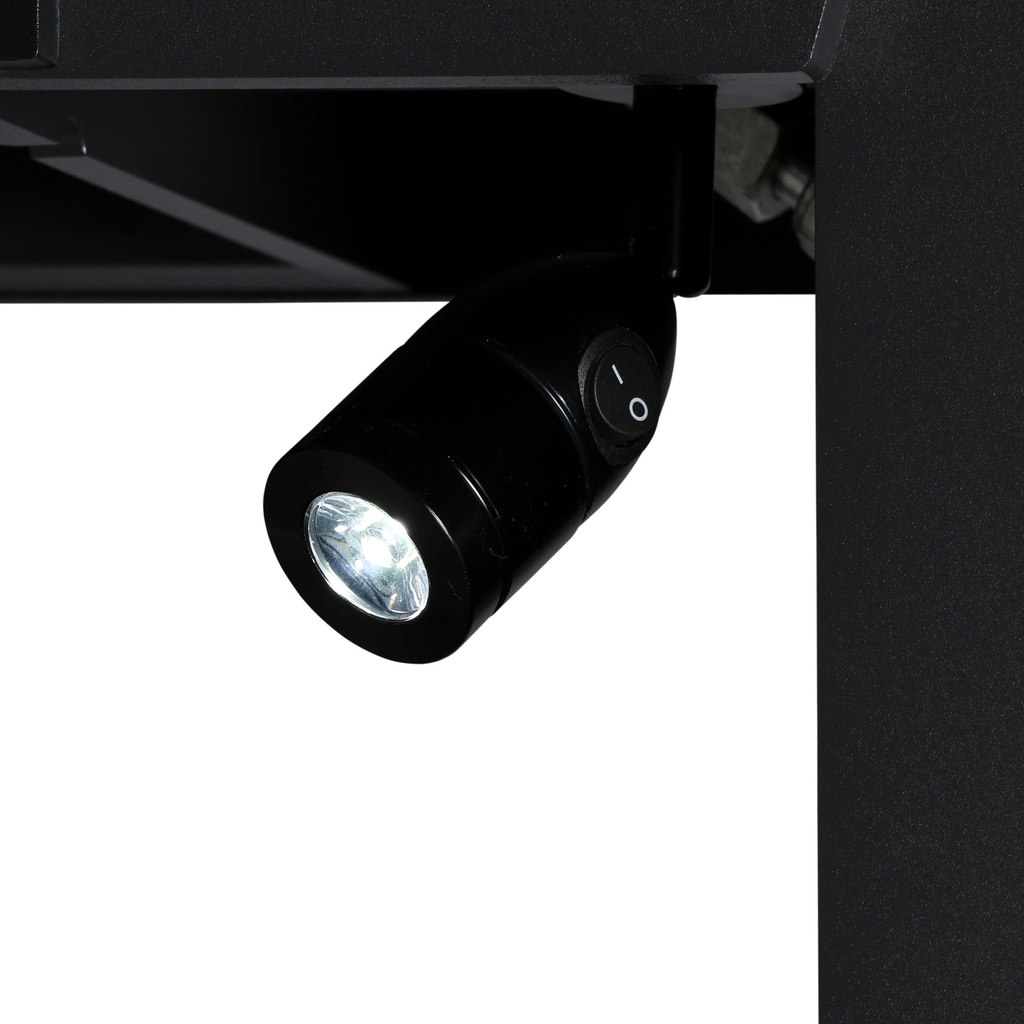

- LED lighting
Clear visibility at the work area.
This 30 ton hydraulic press from Mammuth is reliable and versatile, suitable for professional use in workshops, garages, and industrial environments.
Specifications
| Press capacity | 30 ton |
|---|---|
| Suitable for professional use | Yes |
| Control type | Electric with foot pedal |
| Power supply | 230V |
| Motor power | 500 W |
| Motor speed | 6000 rpm |
| Cylinder stroke (stroke length) | 220 mm |
| Cylinder diameter | ø55 mm |
| Length of screw spindle | 75 mm |
| Sideways adjustable cylinder | Yes |
| Scale marking | Yes |
| Pressure gauge | Yes, integrated |
| Pressing speed (outward) | 1.38 cm/sec |
| Pressing speed (inward) | 1.47 cm/sec |
| Adjustable workbed | Yes, with hand winch |
| Workbed width | 600 mm |
| Workbed depth | 148 mm |
| Working height min. (between worktable and cylinder) | 25 mm |
| Working height max. (between worktable and cylinder) | 850 mm |
| Material frame | Steel, fully welded |
| LED work light | Yes |
| Includes press blocks | Yes, 2 pieces |
| Oil-filled | Yes |
| Oil capacity | 2 L |
| Oil type | OCH22 |
Product dimensions
| Length | 770 mm |
|---|---|
| Width | 505 mm |
| Height | 1800 mm |
| Weight | 174 kg |
Package dimensions
| Length | 1750 mm |
|---|---|
| Width | 840 mm |
| Height | 345 mm |
| Weight | 205 kg |
EAN 8720028141159
