Workshop presses

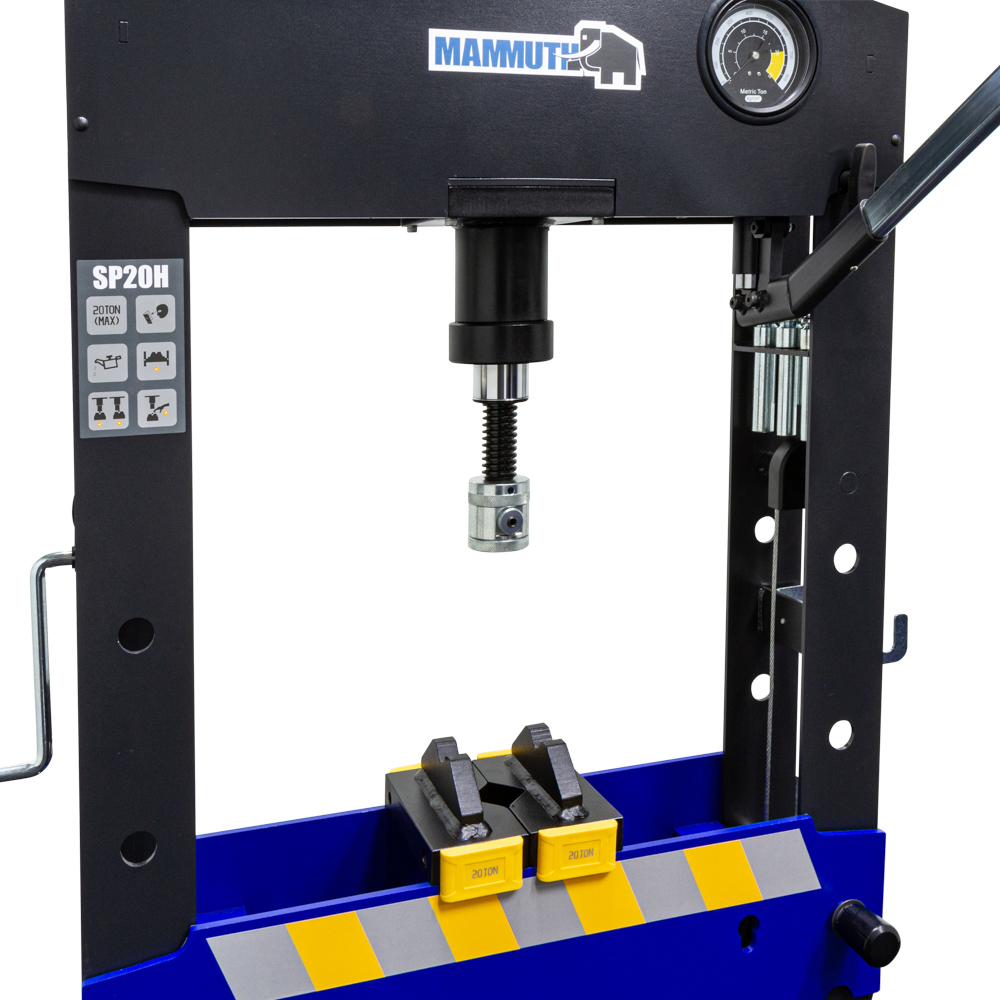

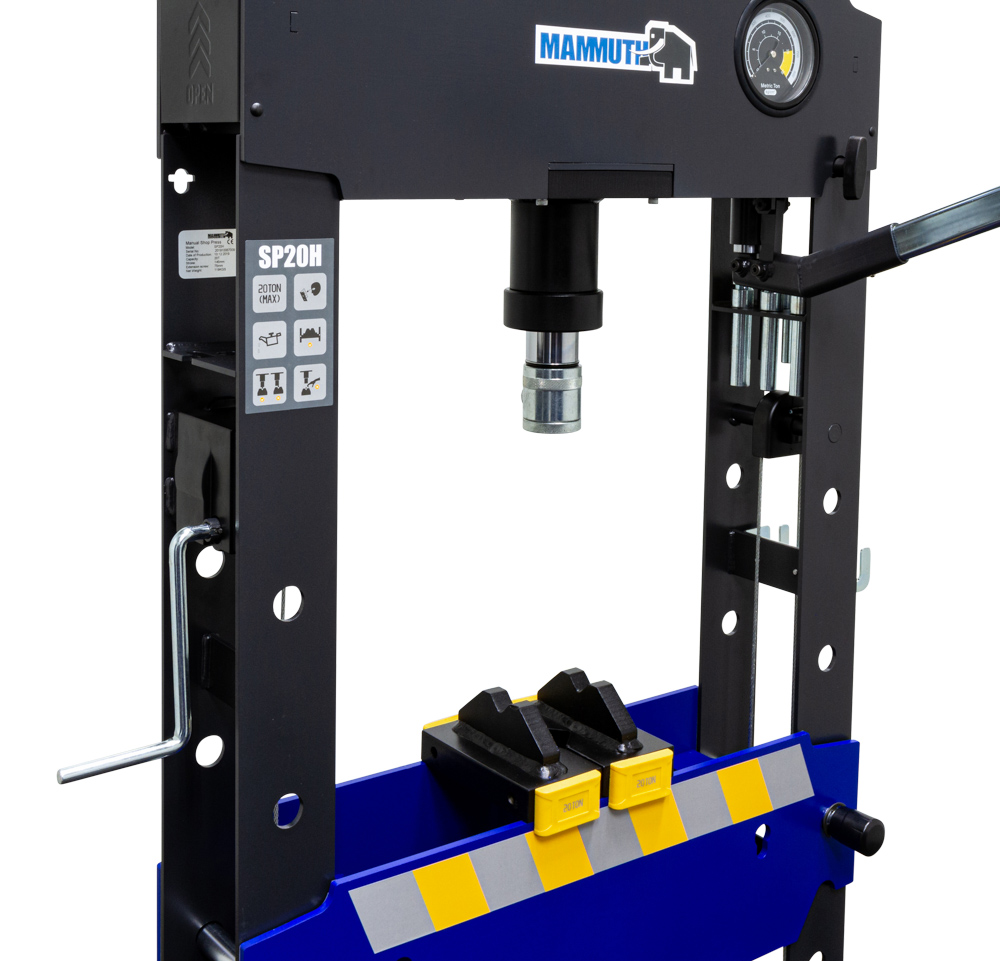

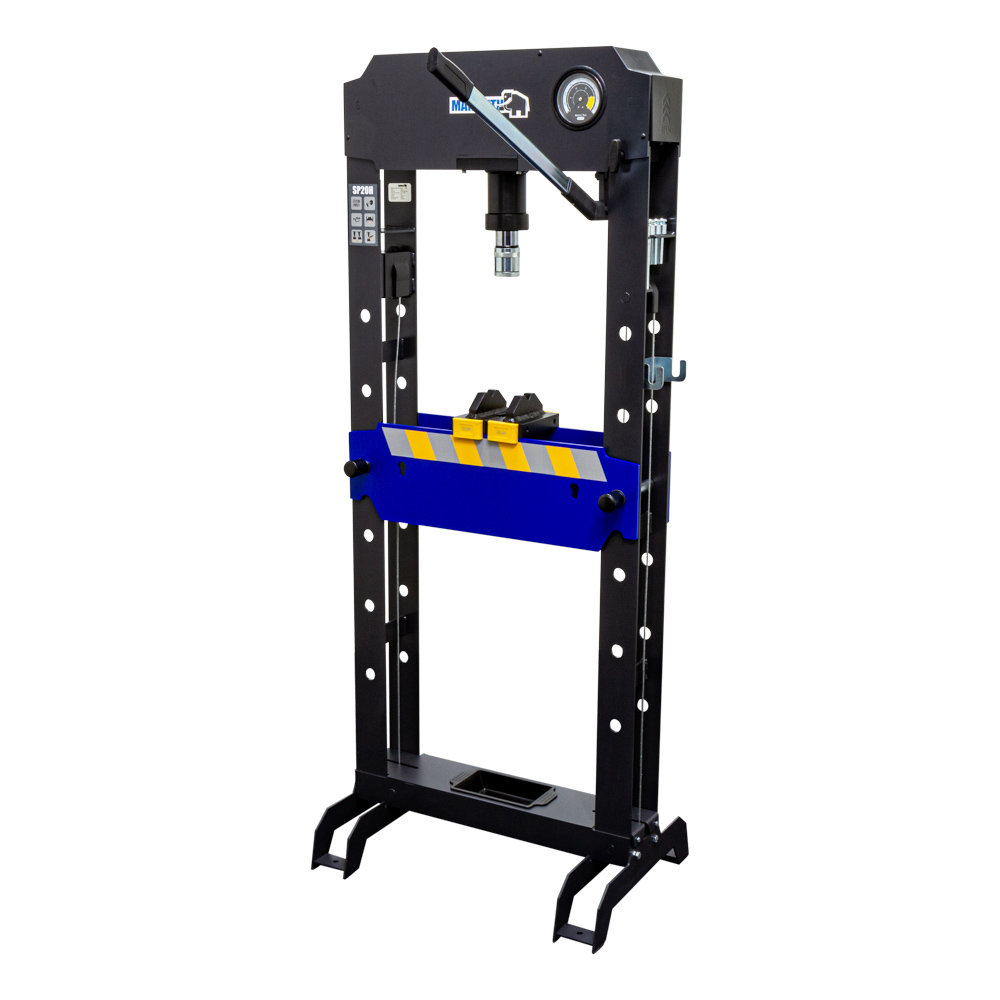

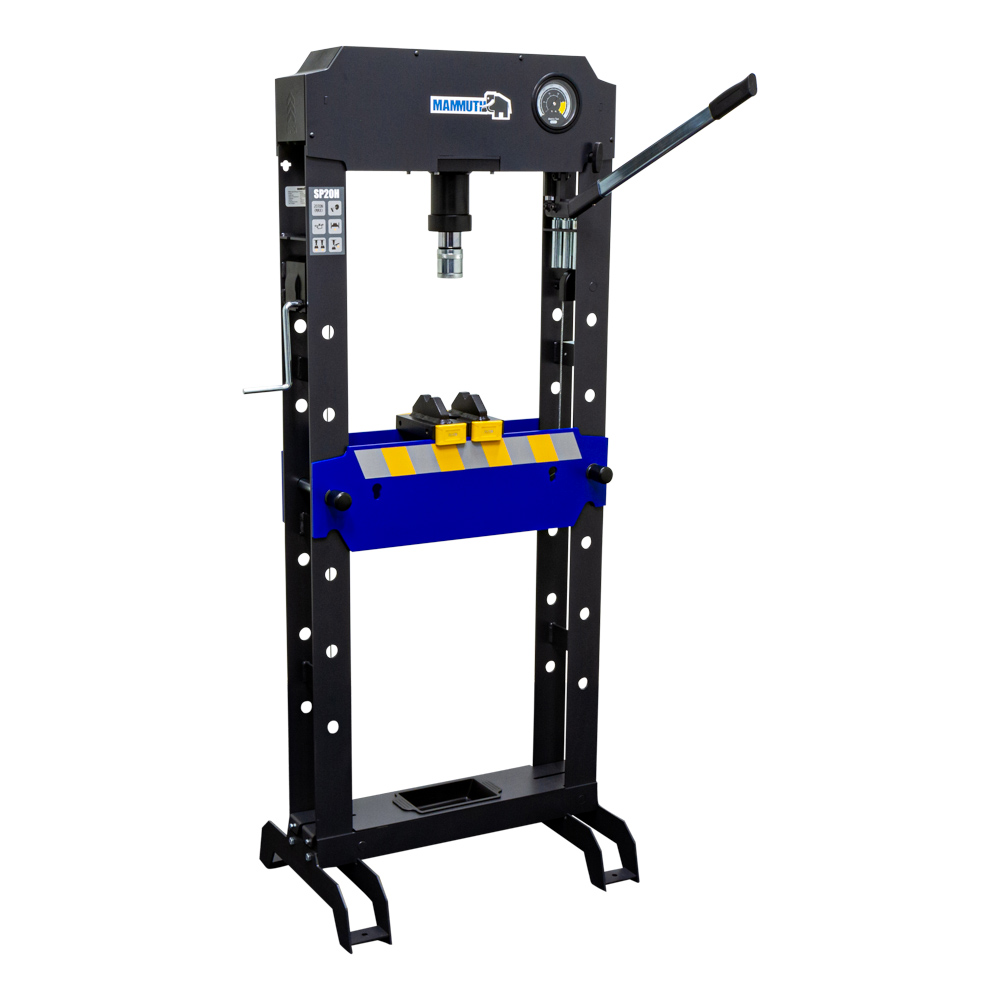

Shop press hand hydraulic 20 ton

Article no. SP20H

Two-stage pump
Hand winch workbed
Spindle-adjustable cylinder
Quick-change press adapter
Includes press blocks and pressing pins

Capacity: 20 ton
Workbed width: 540 mm
Workbed depth: 165 mm
Minimum working height: 25 mm

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press is a reliable choice for any workshop.

Two-stage pump: First fast, then precise pressing.
Hand winch workbed: Easily adjustable with a winch at 6 different heights.
Spindle-adjustable cylinder: Easily extendable for precise positioning.
Quick-change press adapter: Easily clicks on and off.

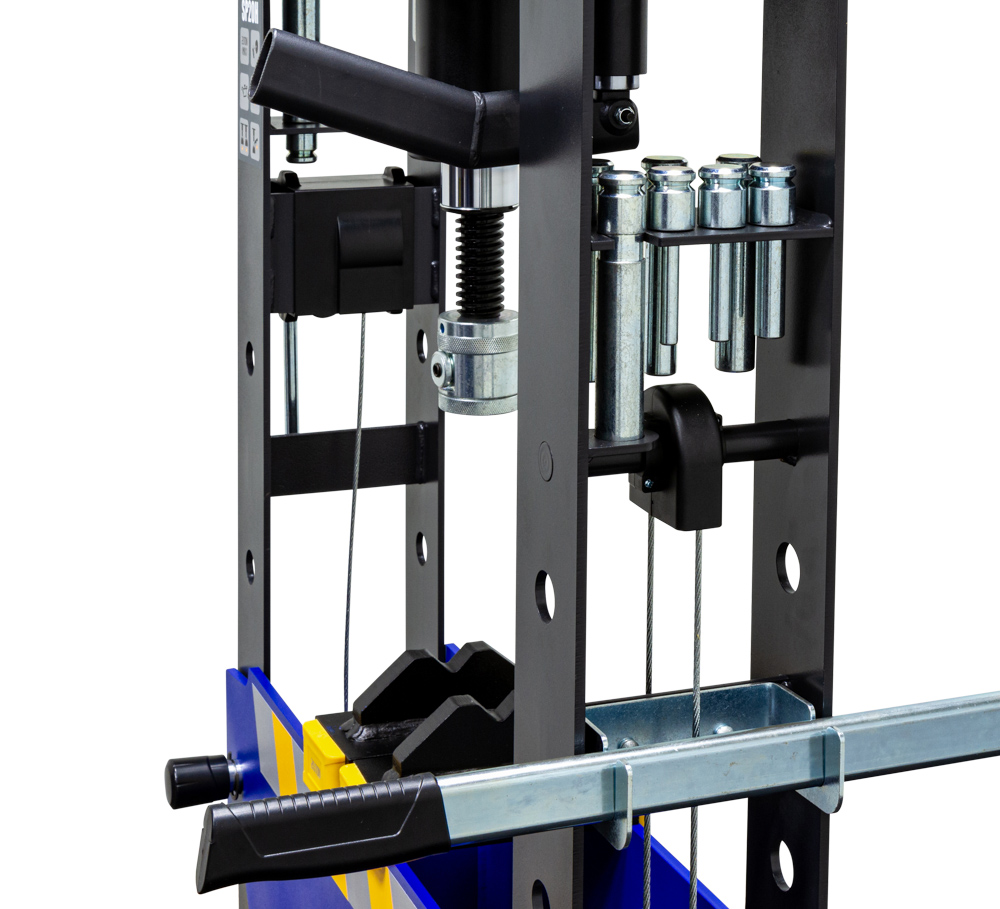

Includes press blocks and pressing pins: Comes with 2 press blocks and 8 pressing pins.

Specifications

Capacity	20 ton
Workbed width	540 mm
Workbed depth	165 mm
Minimum working height	25 mm
Maximum working height	850 mm
Cylinder stroke	220 mm
Cylinder diameter	ø50 mm
Length of screw spindle	75 mm
Oil capacity	0.9 L
Oil type	OKCH68
