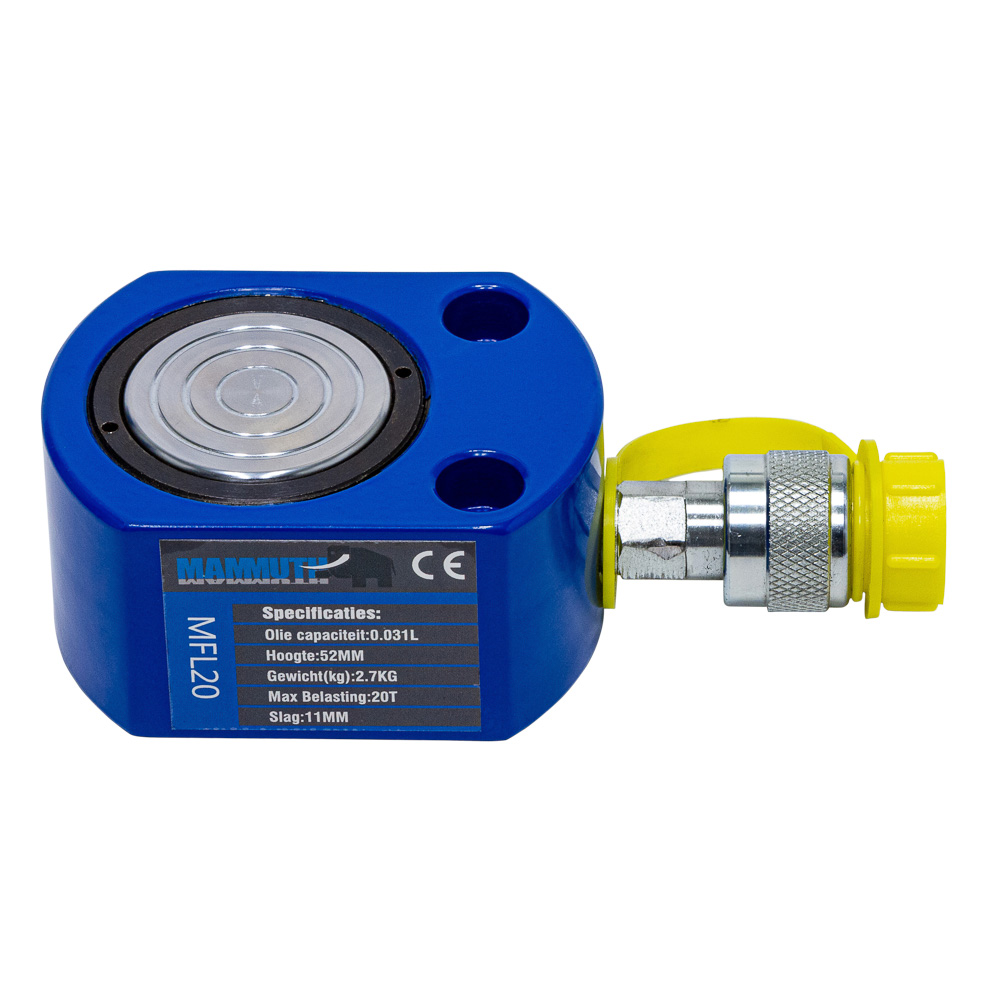

Flat cylinder 20 ton stroke 11mm

Flat cylinder

This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.

• output = 20 Ton

• stroke = 11mm

• effective area = 22cm^2

• oil capacity = 0.031 L

• height of product = 52mm

• extended height = 63mm

• outside diameter = 100x77mm

• bore diameter = 60mm

• plunger diameter = 53mm

• thread for oil input = 3/8''-19

• saddle protusion form Plgr = 2mm

• max. pressure = 700bar
