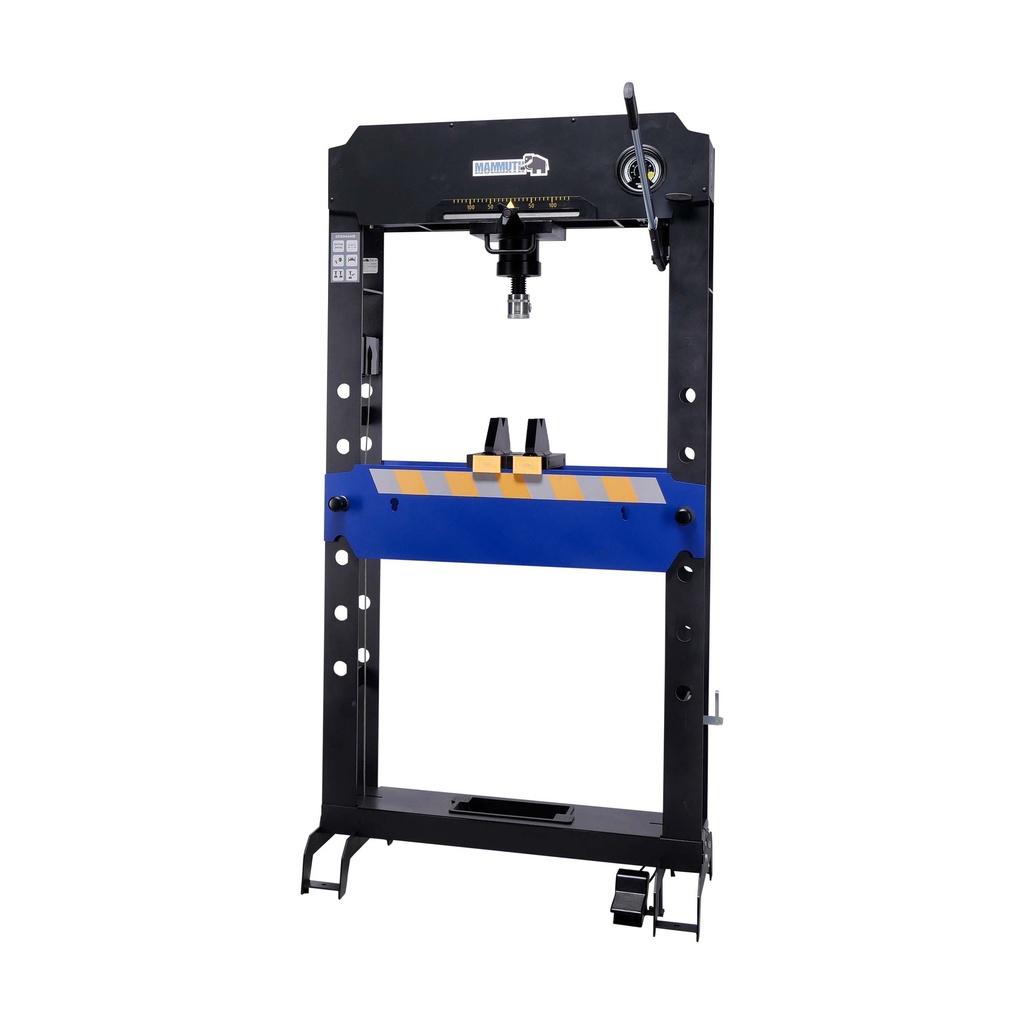

Workshop press Wide Work bed air hydraulic with foot pedal 30 tons
Article no. SP30HAMB
- Two-stage pump
- Hand winch workbed
- Adjustable cylinder with scale
- Quick-change press head including 8 pressing pins
- Pneumatic foot pedal
- Capacity
- 30 ton
- Workbed width
- 750 mm
- Workbed depth
- 200 mm
- Minimum working height
- 130 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. With a wide 750 mm workbed, this press is also suitable for larger workpieces. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press is a reliable choice for any workshop. The press comes with 2 press blocks.
- Two-stage pump: First fast, then precise pressing.
- Hand winch workbed: Easily adjustable with the winch at 6 different heights.
- Adjustable cylinder with scale: Side adjustable and extendable via the screw spindle for precise positioning.
-
Quick-change press head including 8 pressing pins: Easy to clip on and secure.
-
Pneumatic foot pedal: Effortless operation and keeps your hands free.
Specifications
| Capacity | 30 ton |
|---|---|
| Workbed width | 750 mm |
| Workbed depth | 200 mm |
| Minimum working height | 130 mm |
| Maximum working height | 830 mm |
| Length of screw spindle | 75 mm |
| Cylinder stroke | 220 mm |
| Cylinder diameter | ø55 mm |
| Working air pressure | 8 - 12 bar |
| Air connection | 1/4 NPT |
| Oil capacity | 1.2 L |
| Oil type | OKCH68 |
Product dimensions
| Length | 930 mm |
|---|---|
| Width | 535 mm |
| Height | 1900 mm |
| Weight | 208 kg |
Package dimensions
| Length | 1850 mm |
|---|---|
| Width | 1000 mm |
| Height | 405 mm |
| Weight | 215 kg |
EAN 8720028097791
