Workshop presses

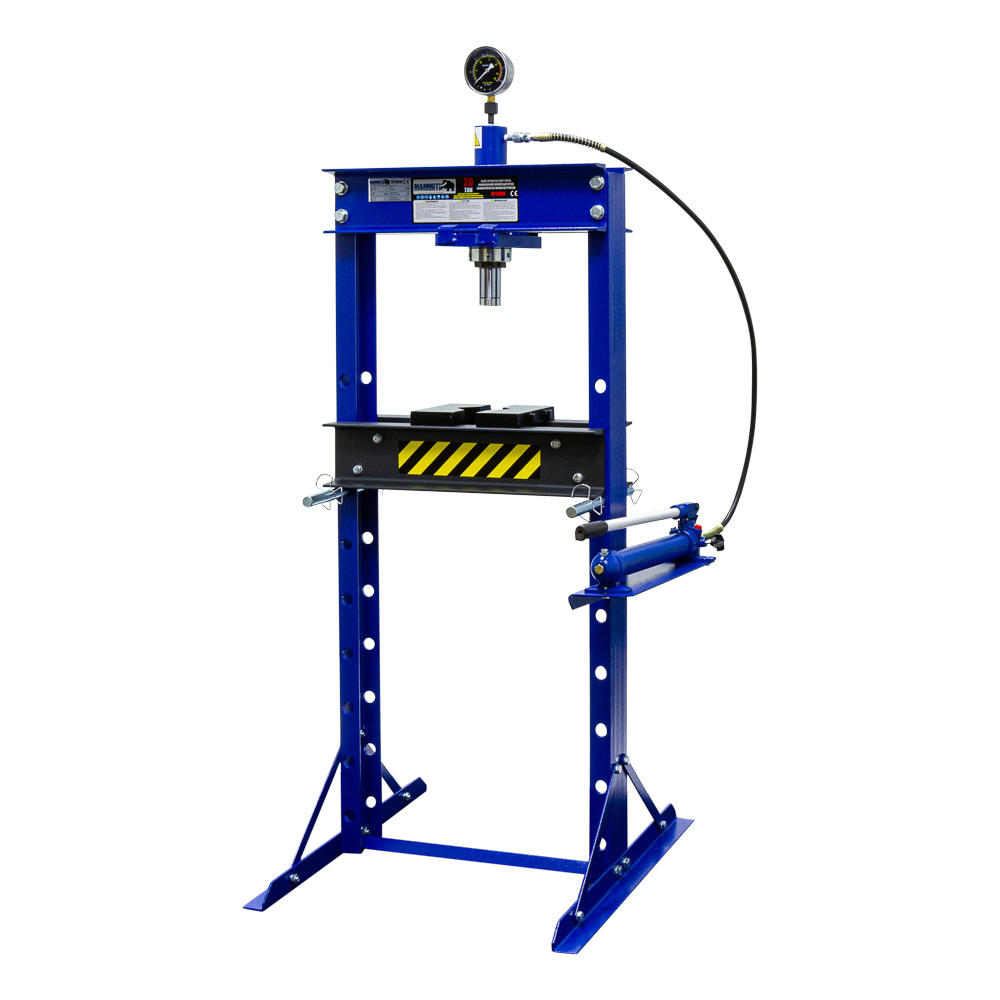

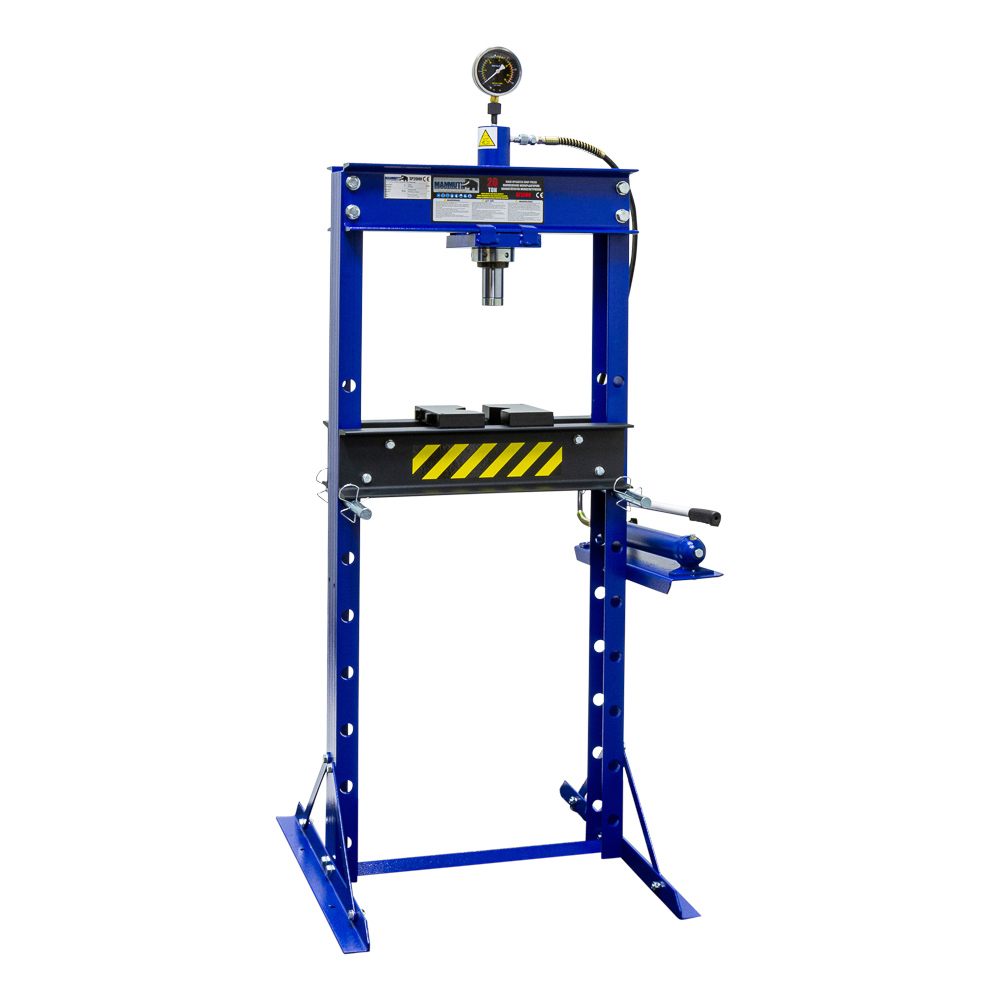

Shop press hand hydraulic 20 ton
Article no. SP20HH
- Adjustable workbed
-
Interchangeable press adapter
- Side-adjustable cylinder
- Includes press blocks
- Capacity
- 20 ton
- Workbed width
- 542 mm
- Workbed depth
- 105 mm
- Minimum working height
- 25 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to its sturdy construction and smooth operation, this press is a reliable choice for any workshop.

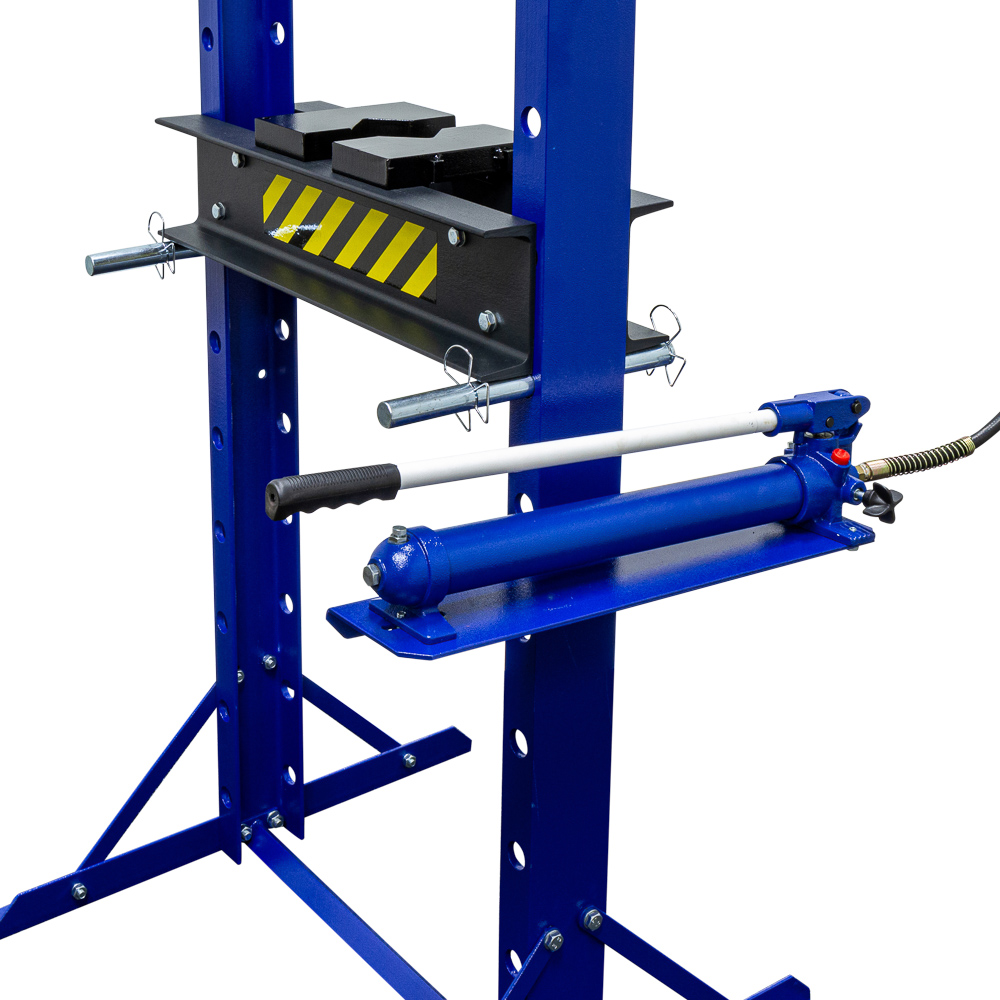

- Adjustable workbed: Easily secured at 9 different heights.
- Interchangeable press adapter: Easily removable for using other attachments.
- Side-adjustable cylinder: For precise positioning.
- Includes press blocks: Comes with 2 press blocks.
Specifications
| Capacity | 20 ton |
|---|---|
| Workbed width | 542 mm |
| Workbed depth | 105 mm |
| Minimum working height | 25 mm |
| Maximum working height | 985 mm |
| Cylinder stroke | 185 mm |
| Cylinder diameter | ø48 mm |
| Oil capacity | 0.7 L |
| Oil type | OKCH68 |
Product dimensions
| Length | 738 mm |
|---|---|
| Width | 700 mm |
| Height | 1787 mm |
| Weight | 92 kg |
Package dimensions
| Length | 1535 mm |
|---|---|
| Width | 270 mm |
| Height | 335 mm |
| Weight | 114 kg |
EAN 8720028058358
