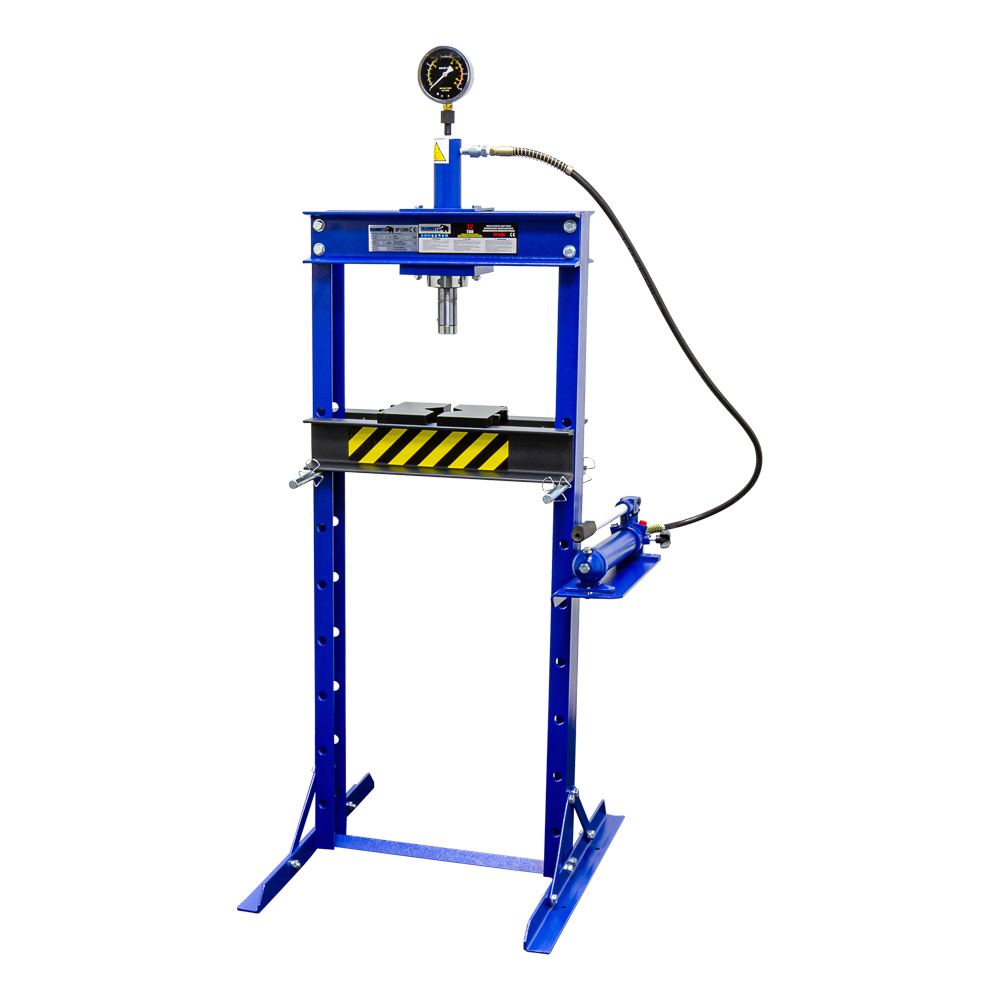

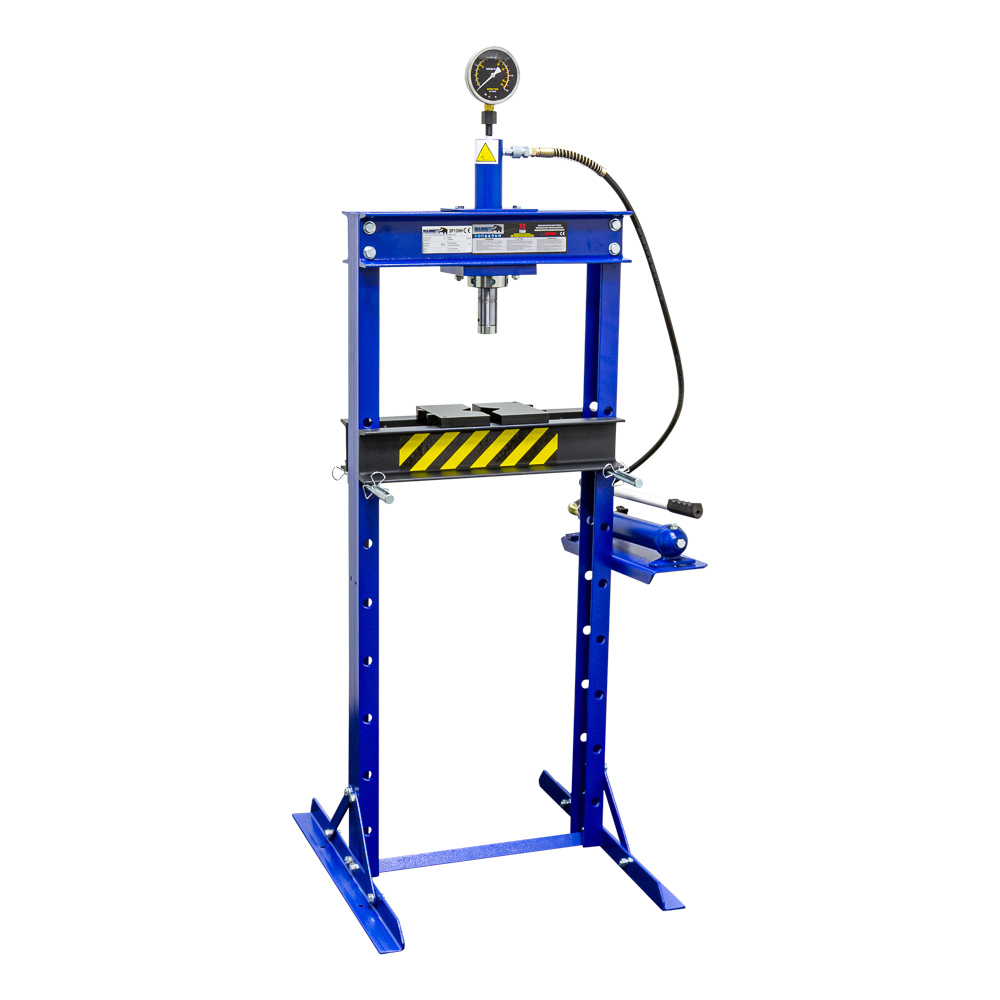

Shop press hand hydraulic 12 ton
Article no. SP12HH
- Adjustable workbed
- Interchangeable receiver cap
- Includes pressing blocks
- Capacity
- 12 ton
- Workbed width
- 454 mm
- Workbed depth
- 84 mm
- Minimum working height
- 77 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to its sturdy construction and smooth operation, this press is a reliable choice for any workshop.
-

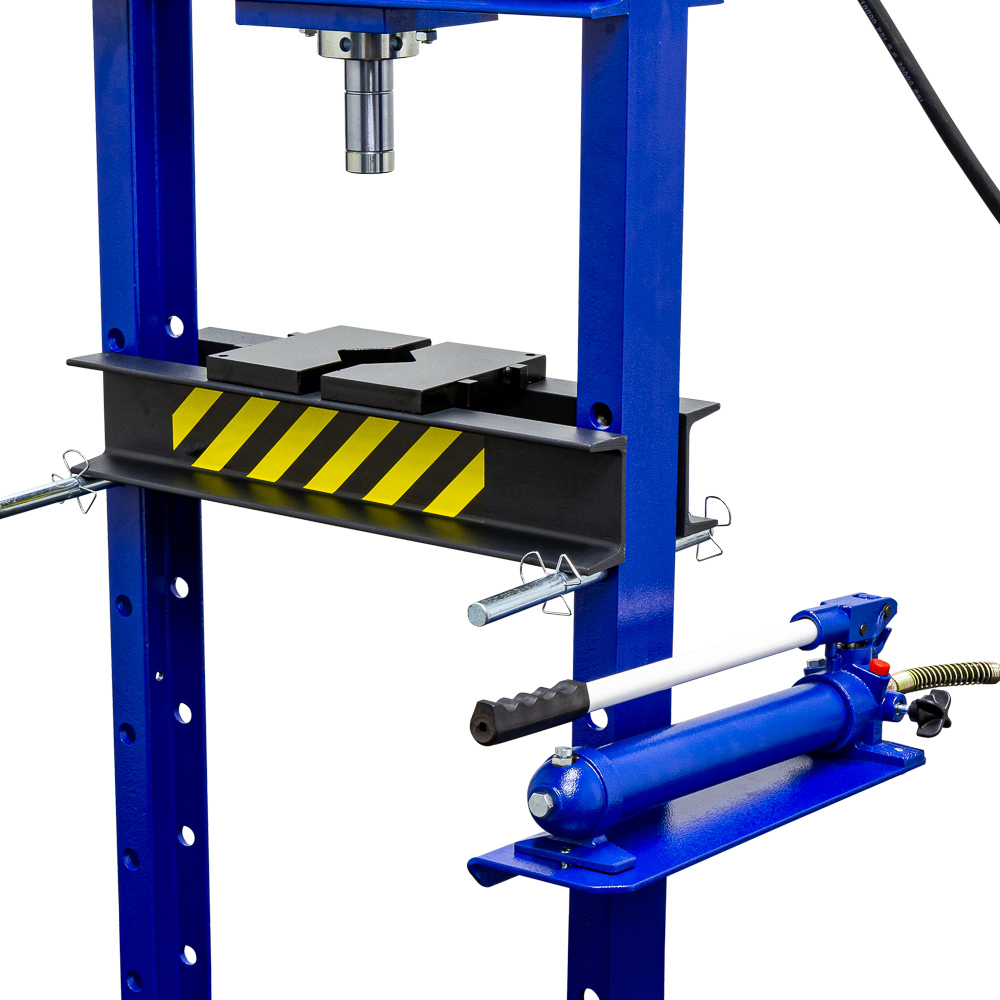

Adjustable workbed: Easily locked at 8 different heights.
-
Interchangeable receiver cap: Easily removed for the use of other attachments.
-
Includes pressing blocks: Comes with 2 pressing blocks.
Specifications
| Capacity | 12 ton |
|---|---|
| Workbed width | 454 mm |
| Workbed depth | 84 mm |
| Minimum working height | 77 mm |
| Maximum working height | 917 mm |
| Cylinder stroke | 180 mm |
| Cylinder diameter | ø39 mm |
| Oil capacity | 0.55 L |
| Oil type | OKCH68 |
Product dimensions
| Length | 640 mm |
|---|---|
| Width | 700 mm |
| Height | 1657 mm |
| Weight | 73 kg |
Package dimensions
| Length | 1560 mm |
|---|---|
| Width | 260 mm |
| Height | 170 mm |
| Weight | 75 kg |
EAN 8720028072750
