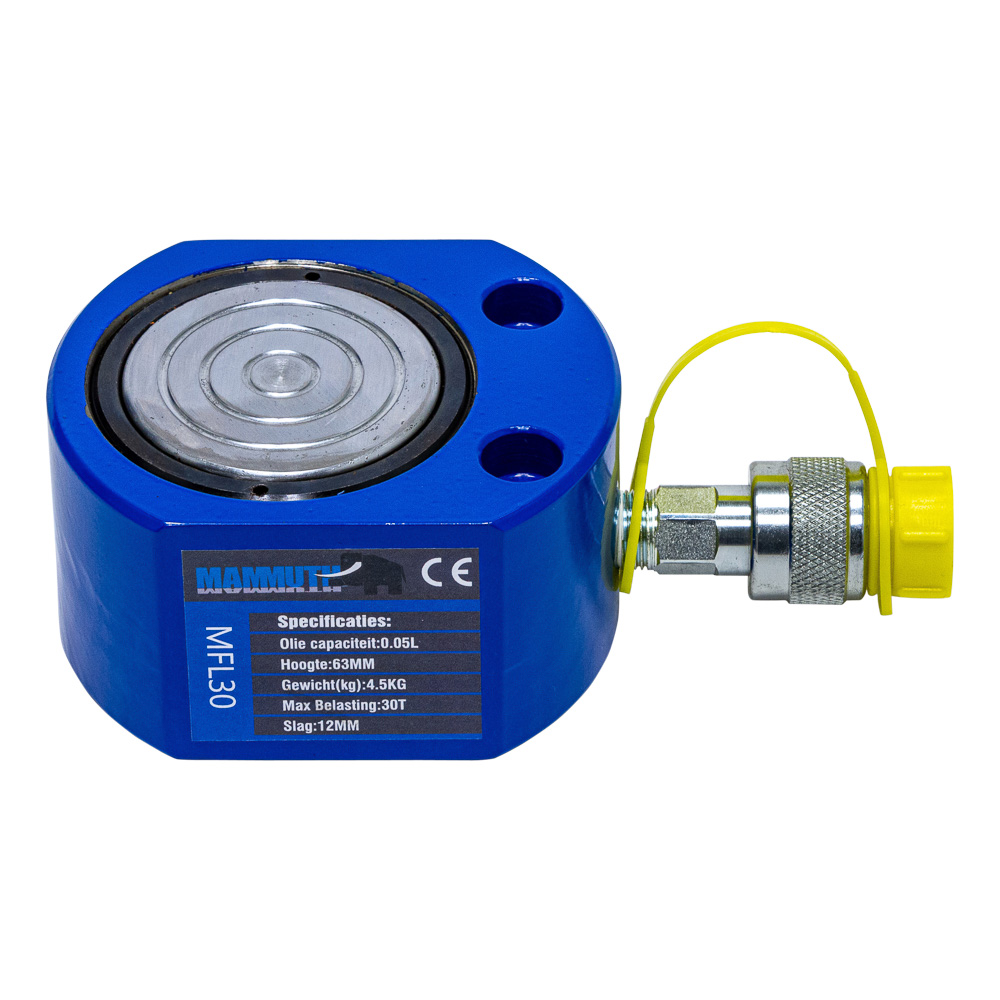

Flat cylinder 30 ton stroke 12mm

Flat cylinder

This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.

• output = 30 Ton

• stroke = 12mm

• effective area = 31,1cm^2

• oil capacity = 0.05 L

• height of product = 63mm

• extended height = 75mm

• outside diameter = 115x95mm

• bore diameter = 75mm

• plunger diameter = 63mm

• thread for oil input = 3/8''-19

• saddle protusion form Plgr = 2mm

• max. pressure = 700bar
