Workshop presses

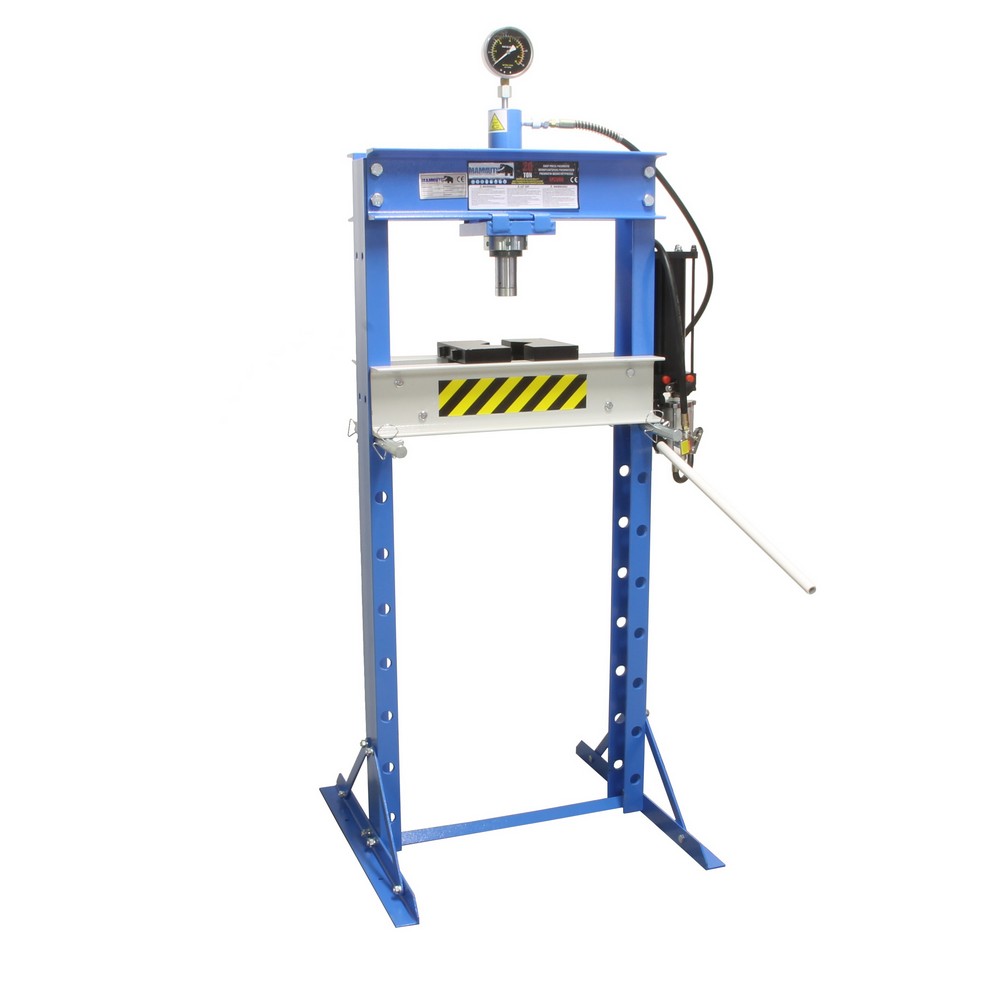

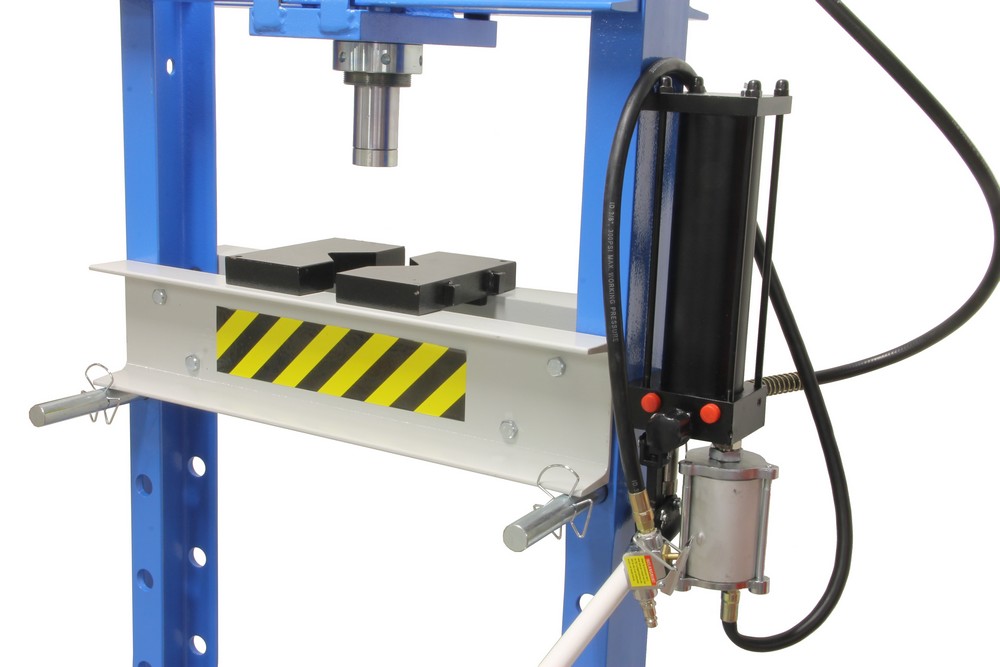

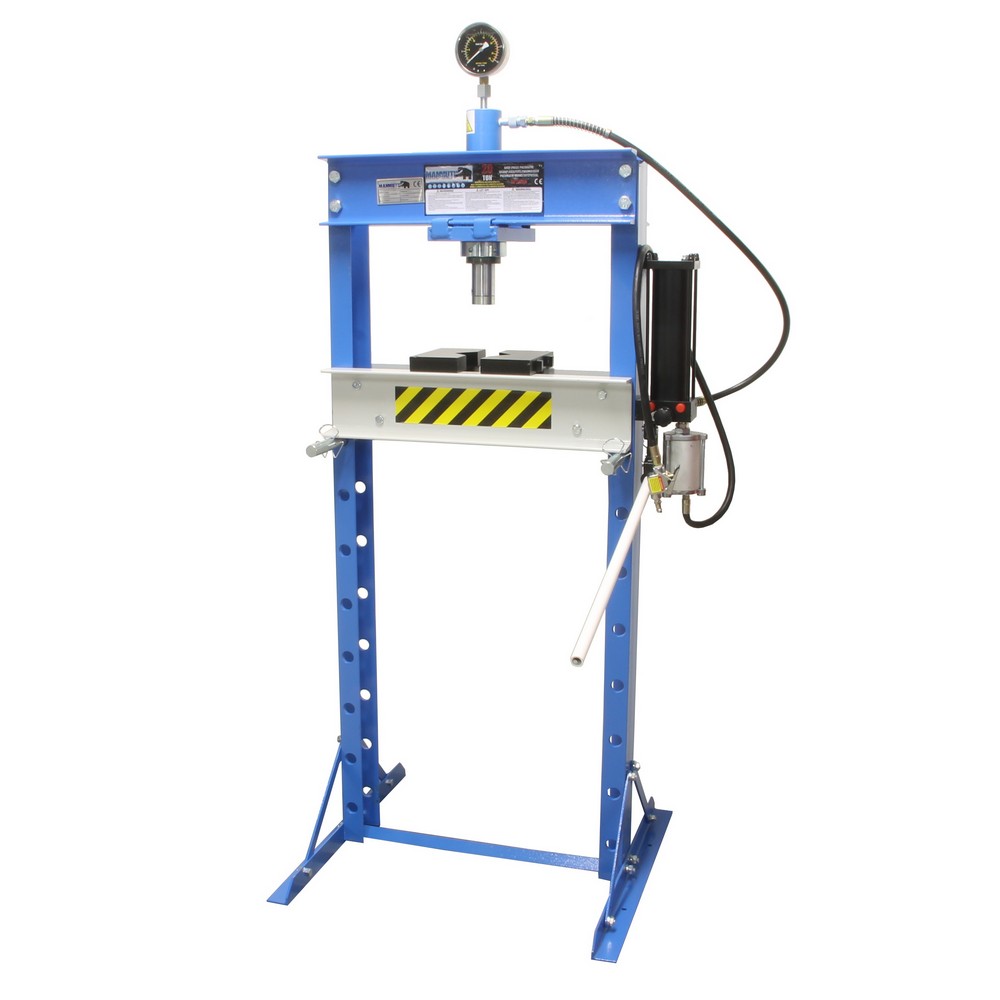

Shop press air hydraulic 20 ton
Article no. SP20HA
- Adjustable workbed
-
Interchangeable receiver cap
- Side-adjustable cylinder
- Pneumatic operation
- Includes pressing blocks
- Capacity
- 20 ton
- Workbed width
- 542 mm
- Workbed depth
- 105 mm
- Minimum working height
- 28 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to its sturdy construction and smooth operation, this press is a reliable choice for any workshop.
-
Adjustable workbed: Easily locked at 9 different heights.
-
Interchangeable receiver cap: Easily removed for the use of other attachments.
-
Side-adjustable cylinder: For precise positioning.
-
Pneumatic operation: Effortless control.
- Includes pressing blocks: Comes with 2 pressing blocks.
Specifications
| Capacity | 20 ton |
|---|---|
| Workbed width | 542 mm |
| Workbed depth | 105 mm |
| Minimum working height | 28 mm |
| Maximum working height | 998 mm |
| Cylinder stroke | 185 mm |
| Cylinder diameter | ø48 mm |
| Working air pressure | 7.5 - 8.5 bar |
| Oil capacity | 0.7 L |
| Oil type | OKCH68 |
Product dimensions
| Length | 738 mm |
|---|---|
| Width | 700 mm |
| Height | 1787 mm |
| Weight | 108.8 kg |
Package dimensions
| Length | 1200 mm |
|---|---|
| Width | 270 mm |
| Height | 165 mm |
| Weight | 112.5 kg |
EAN 8720028058372
