Workshop presses

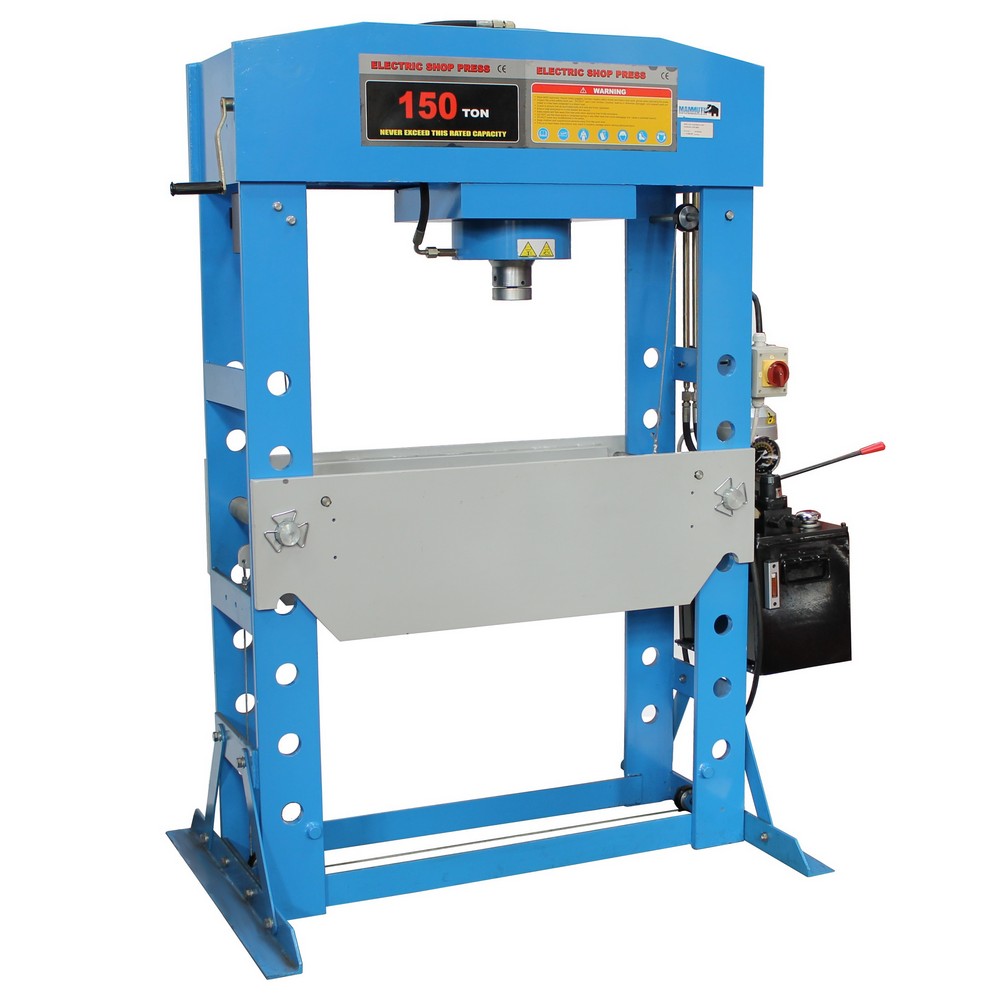

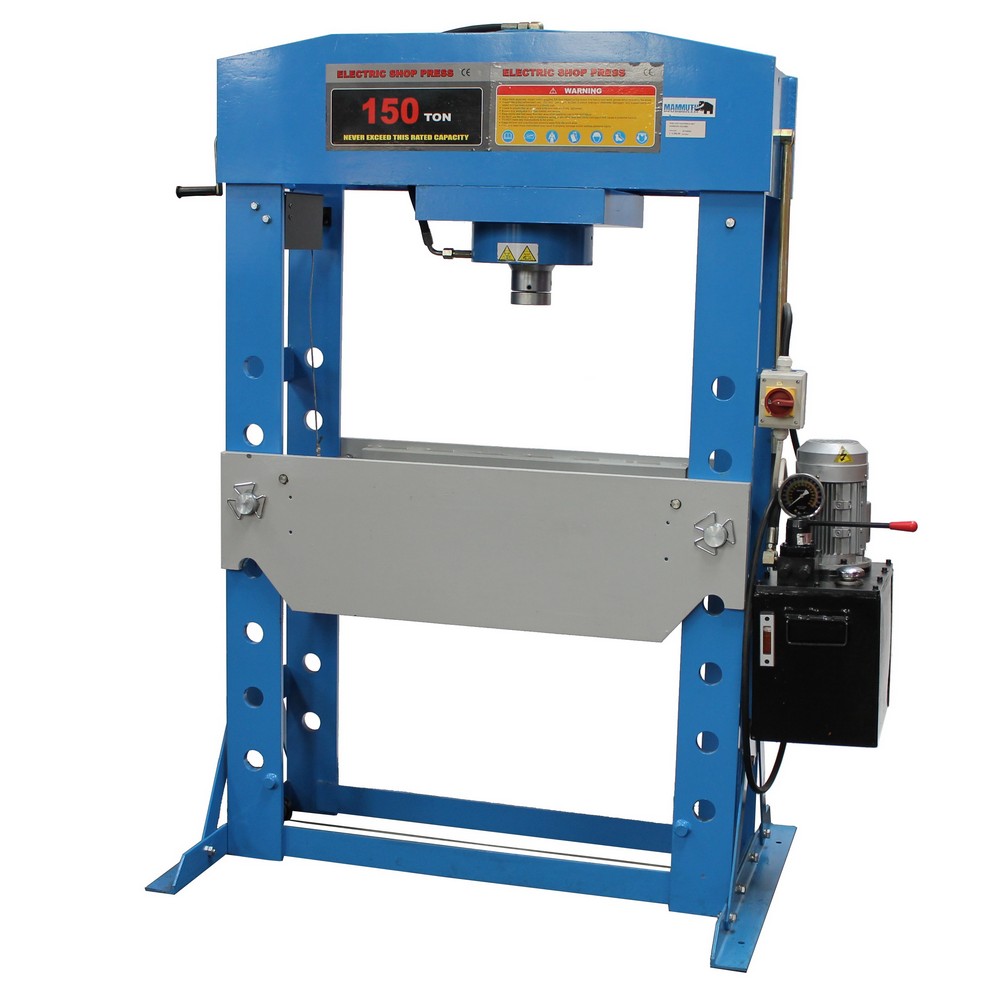

Electric shop press with hand winch 150 ton

Article no. SP150HEL

Electric control
Hand winch
Interchangeable pressing cap
Safety screen
Foot pedal

Capacity: 150 ton
Workbed width: 1000 mm
Workbed depth: 414 mm
Minimum working height: 64 mm

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, this press offers speed, power, and precision. This makes it a reliable choice for any workshop.

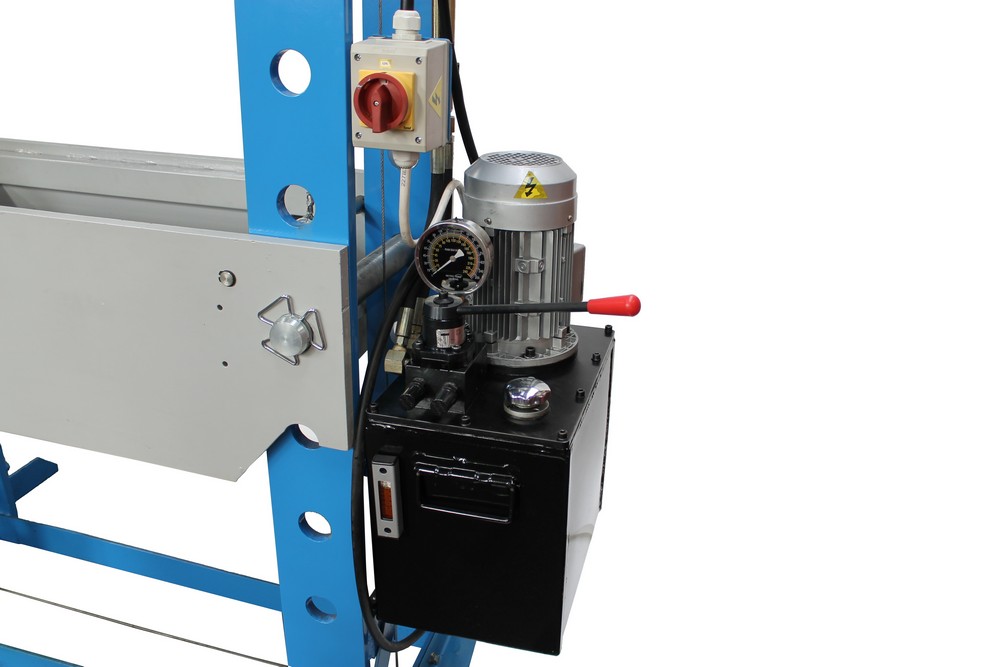

Electric control: Effortless and fast operation.

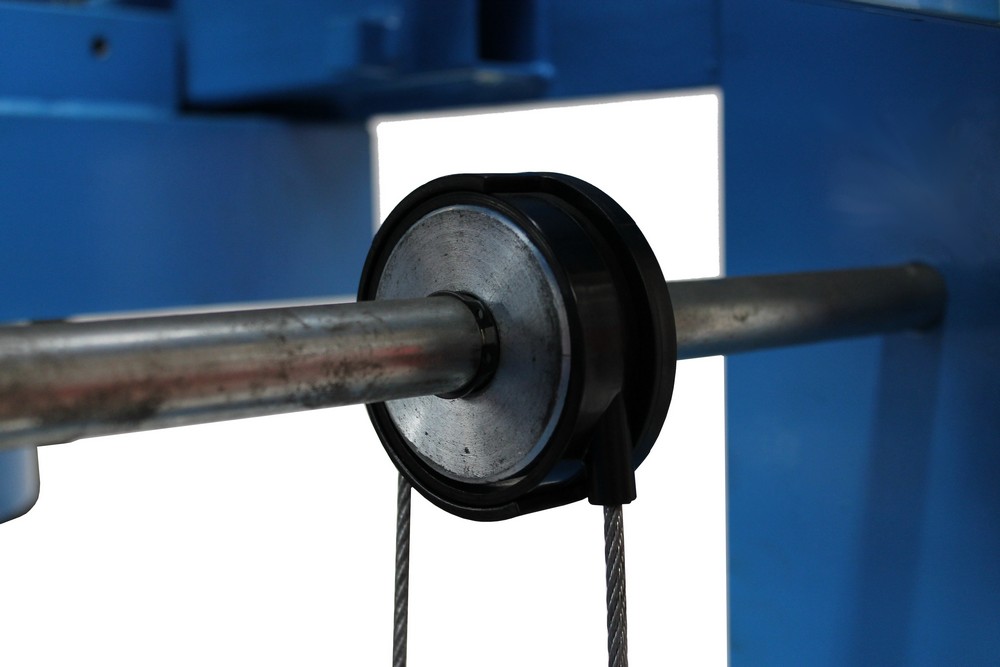

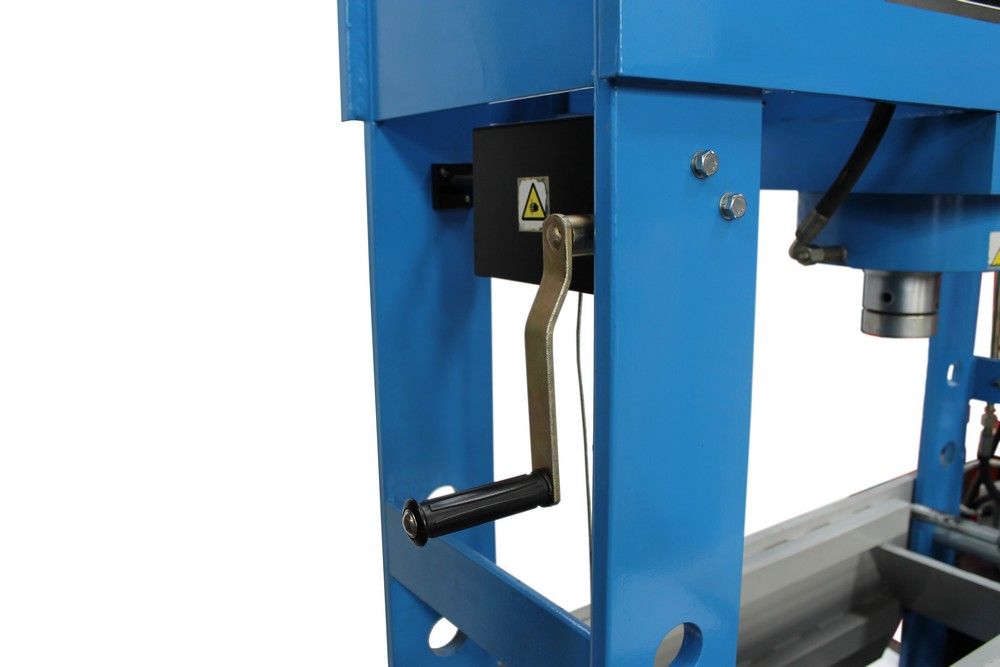

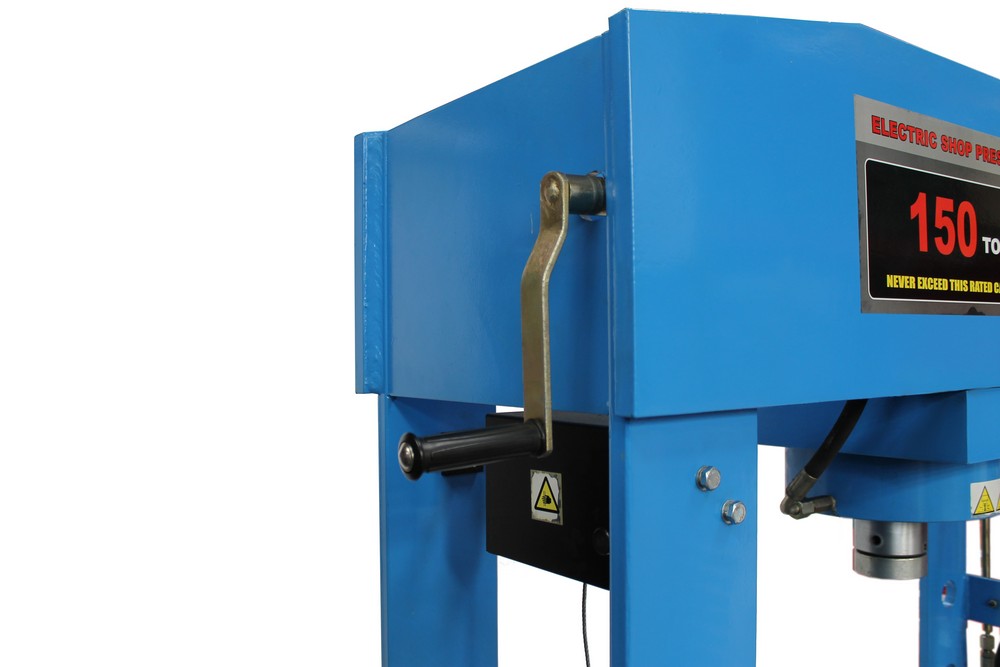

Hand winch: Easily adjust the work table to 7 different heights and the cylinder is adjustable sideways.
Interchangeable pressing cap: Easily removable for using other attachments.
Safety screen: For extra protection during use.
Foot pedal: Keeps your hands free.

Note: the press is supplied without CH22 hydraulic oil (29 litres) and pressing blocks.

Specifications

Capacity	150 ton
Workbed width	1000 mm
Workbed depth	414 mm
Minimum working height	64 mm
Maximum working height	889 mm
Cylinder stroke	350 mm
Cylinder diameter	ø98 mm
Voltage	400V
Power	1.5 kw
Motor speed	1400 rpm
Pressing speed (outward)	2.3 mm/sec
Pressing speed (inward)	3.8 mm/sec
Oil capacity	29 L
Oil type	OCH22
