Workshop presses

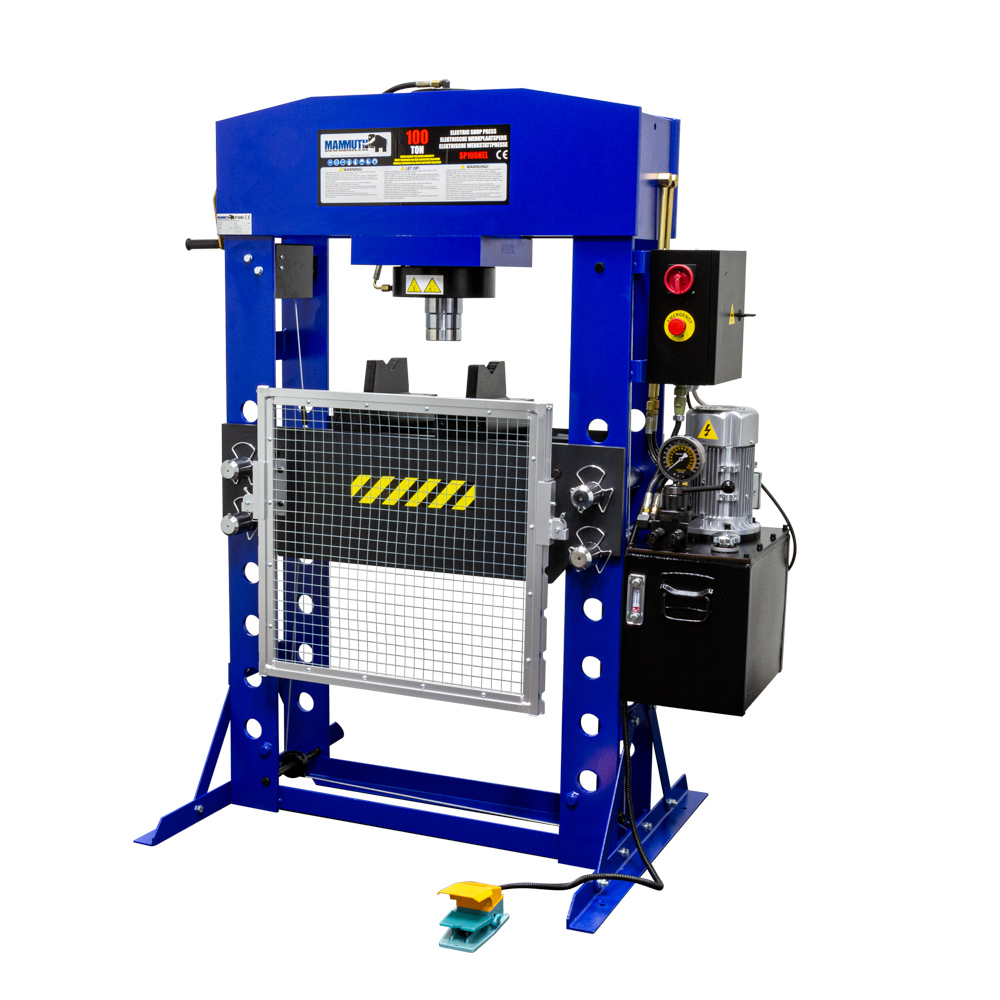

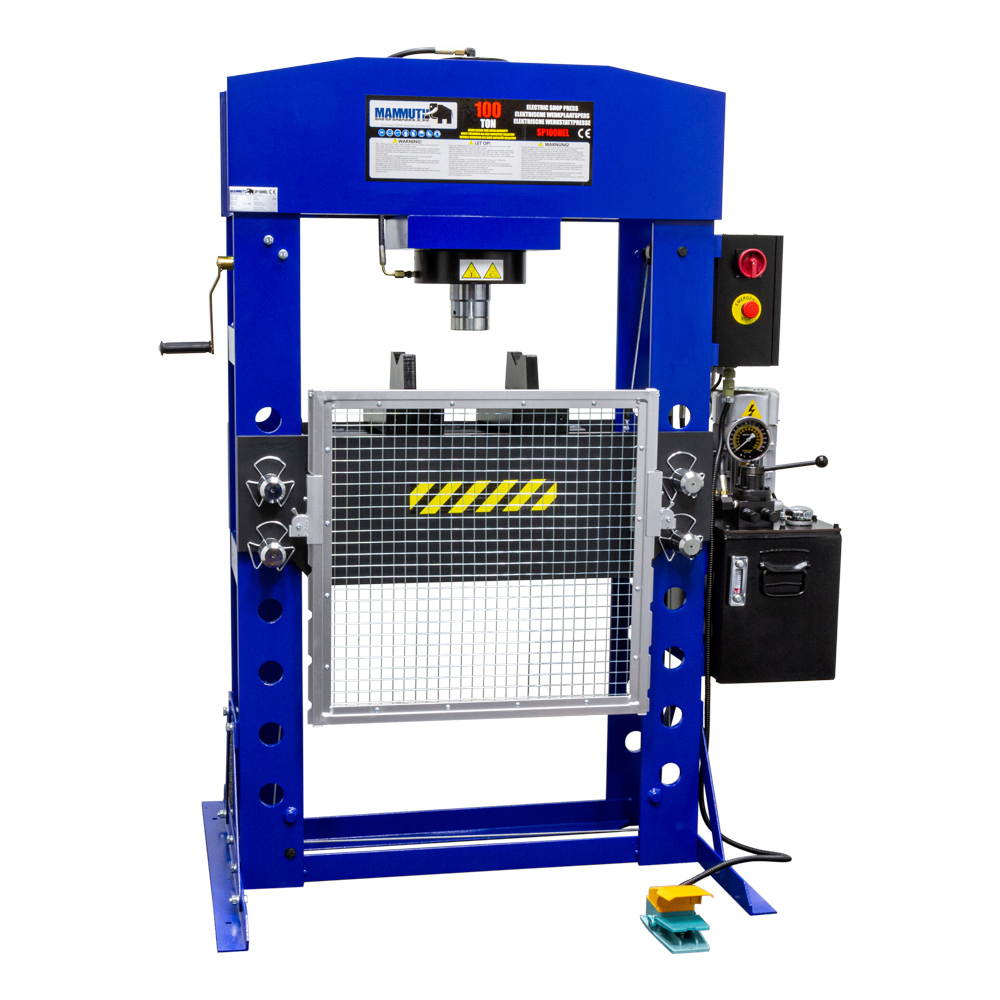

Electric shop press with hand winch 100 ton
Article no. SP100HEL
- Electric control
- Hand winch
- Interchangeable pressing cap
- Safety screen
- Foot pedal
- Press capacity
- 100 ton
- Motor power
- 1500 W
- Voltage
- 400V
- Workbed width
- 800 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, this press offers speed, power, and precision. This makes it a reliable choice for any workshop. Supplied with 2 pressing blocks.
- Electric control: Effortless and fast operation.

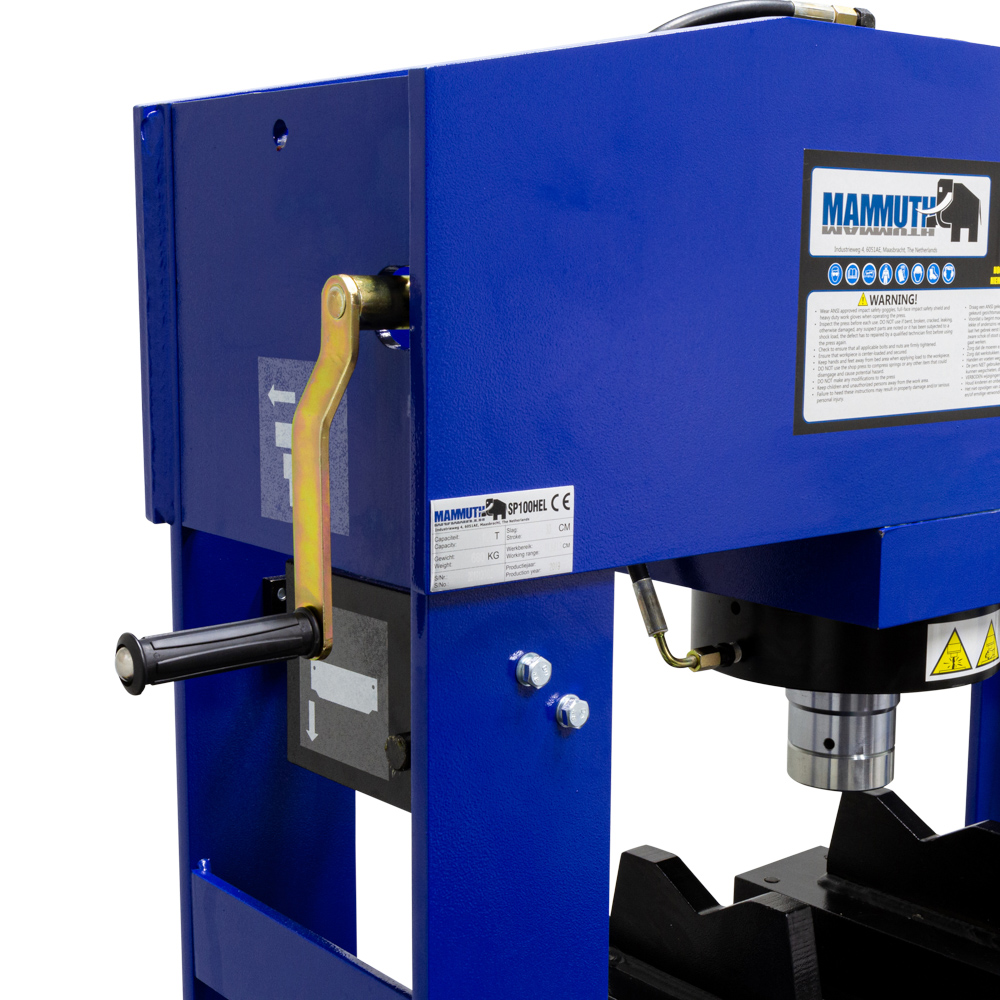

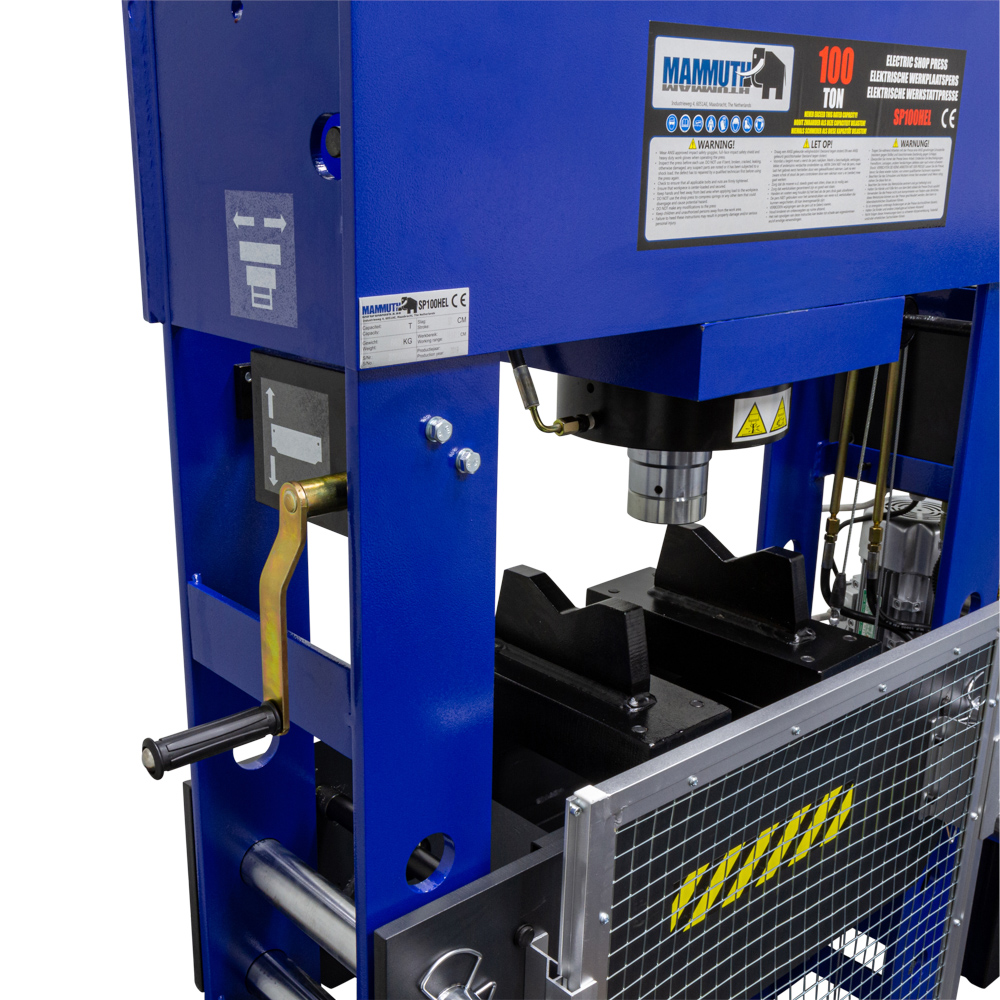

- Hand winch: Easily position the work table at 8 different heights and the cylinder is adjustable sideways.
- Interchangeable pressing cap: Easily removable for using other attachments.
- Safety screen: Provides extra protection during use.
- Foot pedal: Keeps your hands free.
Note: The press is supplied without CH22 hydraulic oil (24 liters).
Specifications
| Press capacity | 100 ton |
|---|---|
| Motor power | 1500 W |
| Voltage | 400V |
| Workbed width | 800 mm |
| Workbed depth | 310 mm |
| Working height min. (between worktable and cylinder) | 113 mm |
| Working height max. (between worktable and cylinder) | 813 mm |
| Cylinder stroke | 250 mm |
| Cylinder diameter | ø90 mm |
| Motor speed | 1400 rpm |
| Pressing speed (outward) | 2.3 mm/sec |
| Pressing speed (inward) | 3.8 mm/sec |
| Oil capacity | 24 L |
| Oil type | OCH22 |
Product dimensions
| Length | 1140 mm |
|---|---|
| Width | 800 mm |
| Height | 1860 mm |
| Weight | 755 kg |
Package dimensions
| Length | 1000 mm |
|---|---|
| Width | 2110 mm |
| Height | 1220 mm |
| Weight | 823 kg |
EAN 8720028072774
