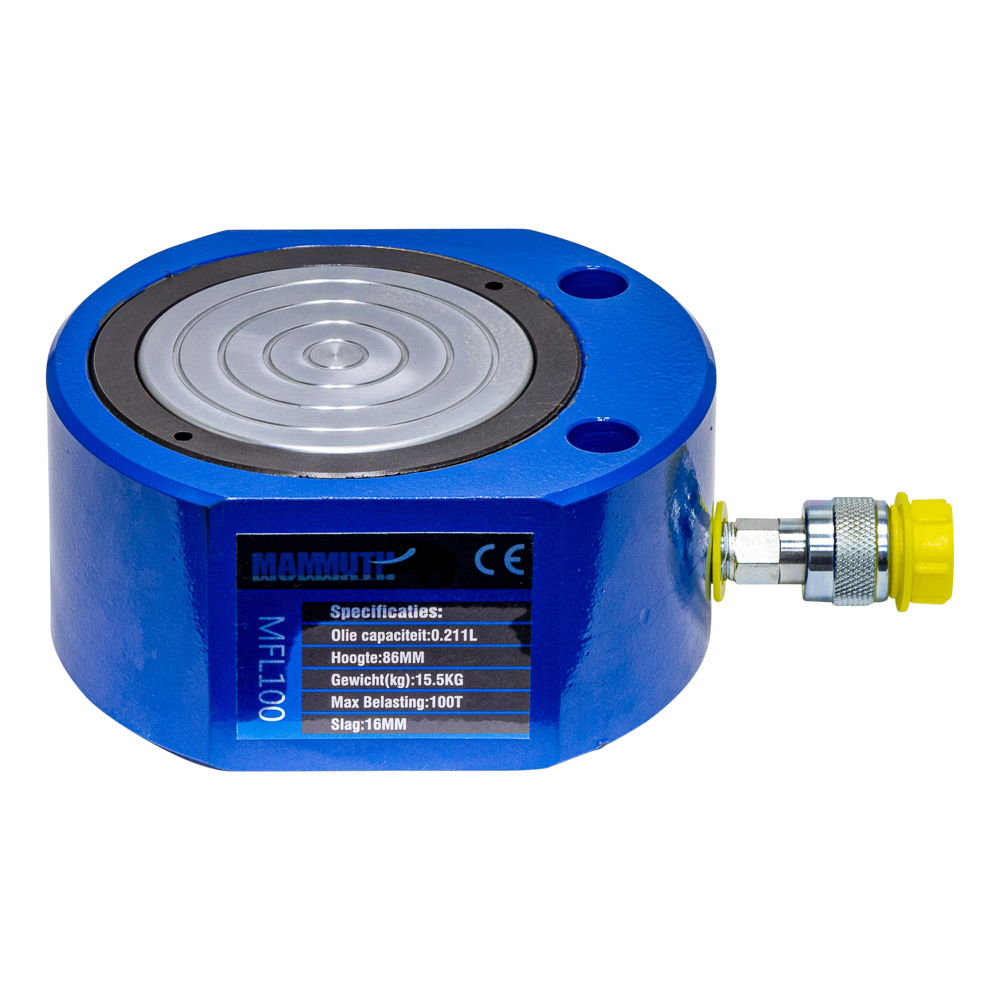

Flat cylinder 100 ton stroke 16mm

Flat cylinder

This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.

• output = 100 Ton

• stroke = 16mm

• effective area = 95cm^2

• oil capacity = 0,211 L

• height of product = 86mm

• extended height = 102mm

• outside diameter = 185x160mm

• bore diameter = 130mm

• plunger diameter = 110mm

• thread for oil input = 3/8''-19

• saddle protusion form Plgr = 2mm

• max. pressure = 700bar
