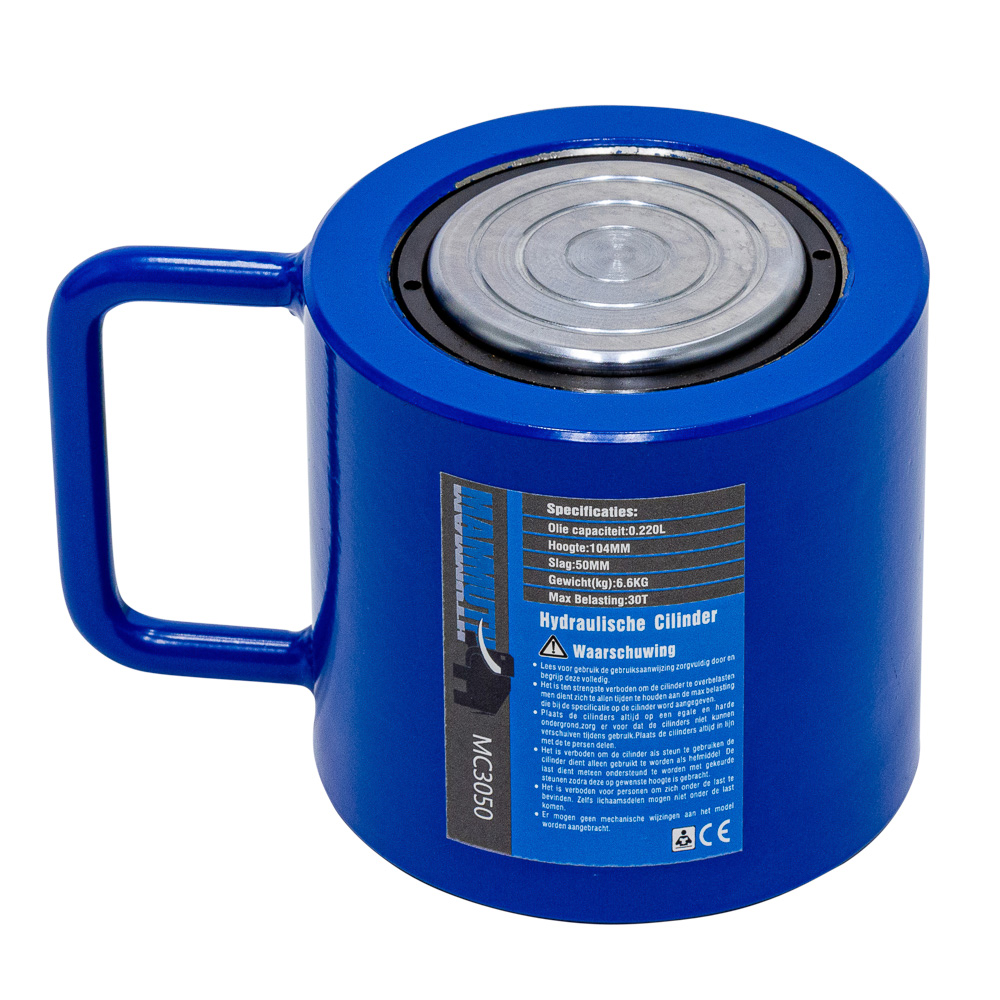

Cylinder 30 ton stroke 50mm

Hydraulic cylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

- output = 30 ton
- stroke = 50mm
- effective area = 31,1cm^2
- oil capacity = 0,22 L
- height of product = 104mm
- extended height = 154mm
- outside diameter = 105mm
- bore diameter = 75mm
- plunger diameter = 86mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
