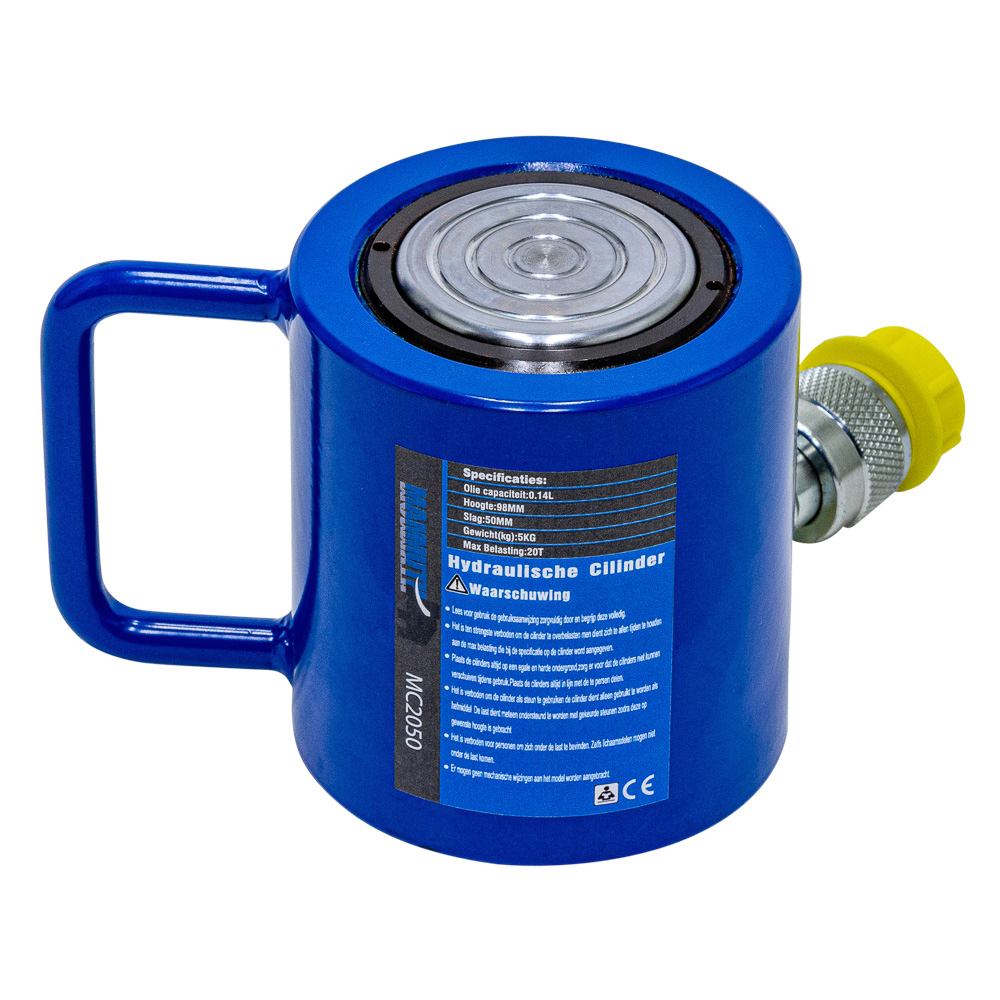

Cylinder 20 ton stroke 50mm

Article no. MC2050

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

Hydraulic cylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

- output = 20 ton
- stroke = 50mm
- effective area = 22cm^2
- oil capacity = 0,14 L
- height of product = 98mm
- extended height = 148mm
- outside diameter = 88mm
- bore diameter = 65mm
- plunger diameter = 53mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
