Hydraulic machine jack 10 ton
Article no. HMJ10HD
- Available through our dealer network
- Advice on the right capacity from your dealer
Description

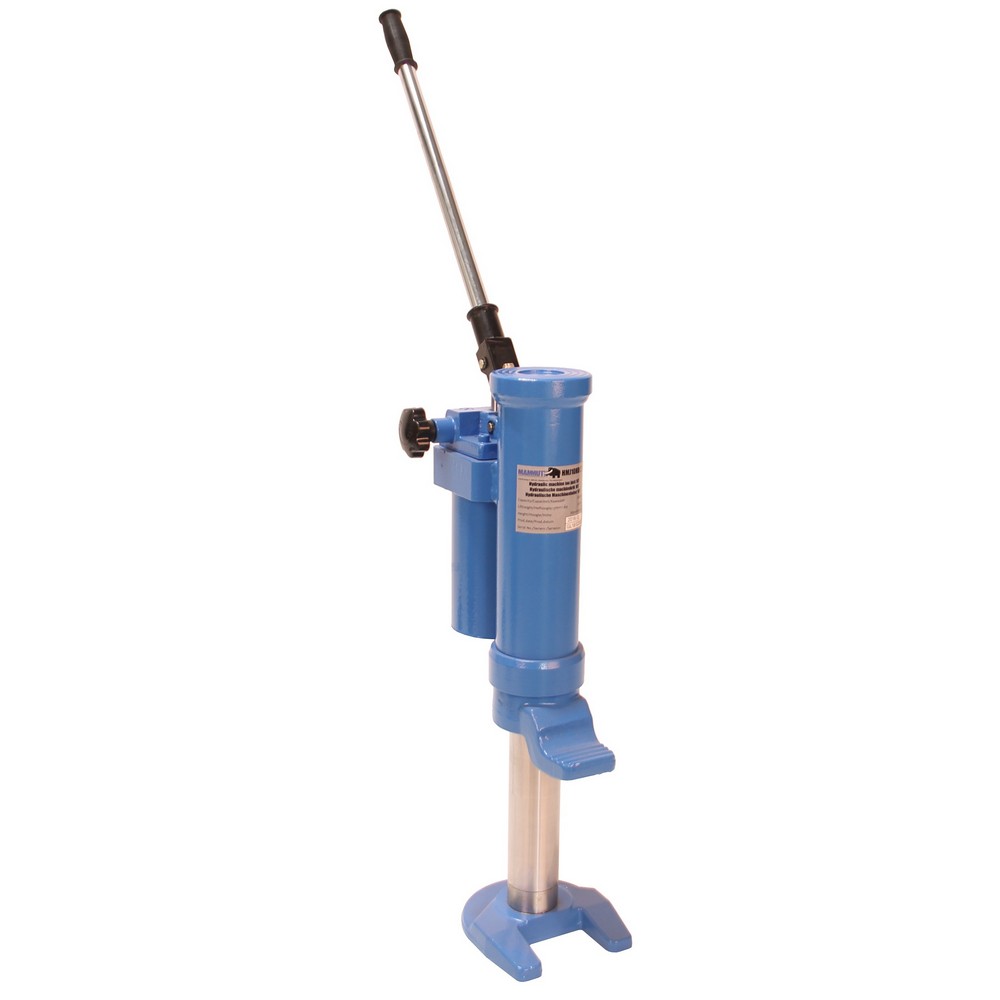

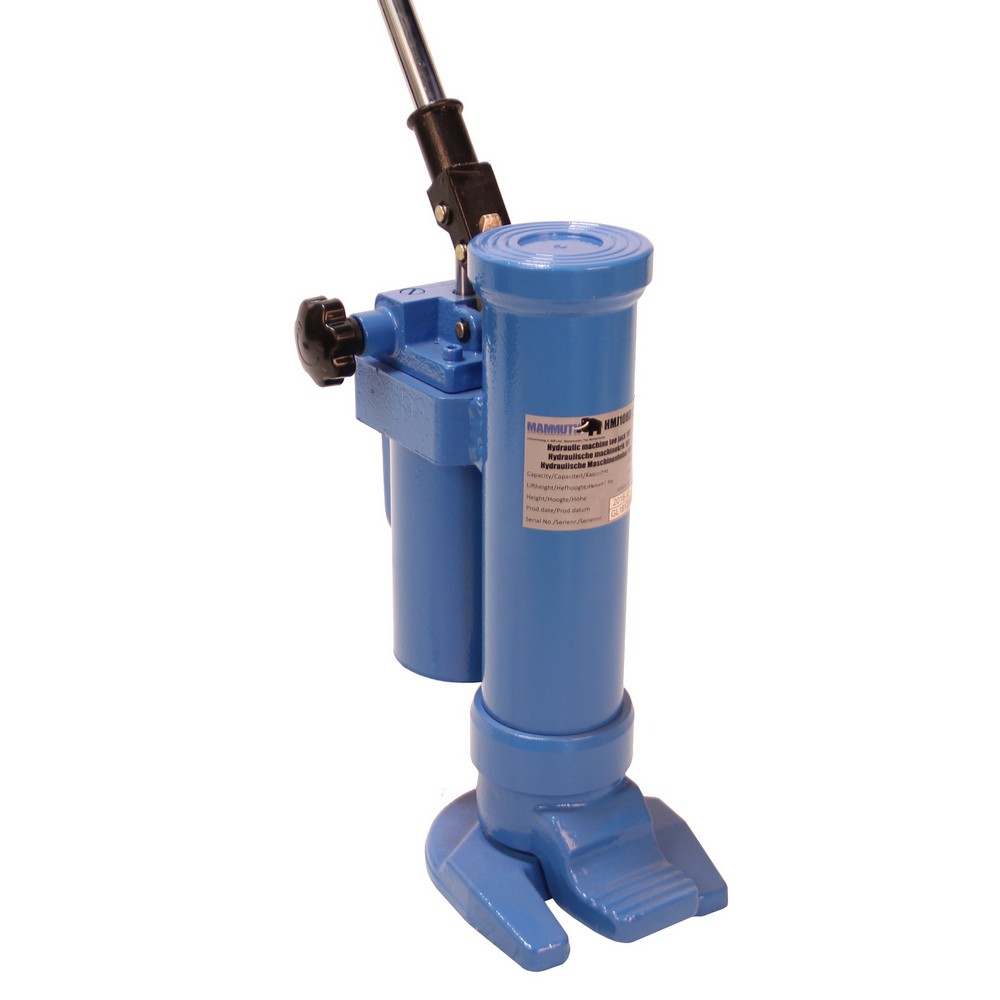

Hydraulic machine jack / machine lifter
This hydraulic machine lifter is used for maintenance and repair of heavy machinery.
- capacity = 10 ton
- lifting range of foot = 30-260mm
- lifting range of head = 420-650mm
- max lever force = 40kg
- 360 degrees rotatable
Specifications
Product dimensions
| Length | 340 mm |
|---|---|
| Width | 250 mm |
| Height | 650 mm |
| Weight | 35 kg |
Package dimensions
| Length | 380 mm |
|---|---|
| Width | 225 mm |
| Height | 500 mm |
| Weight | 37.5 kg |
EAN 8720028000562
