Jacks and stands

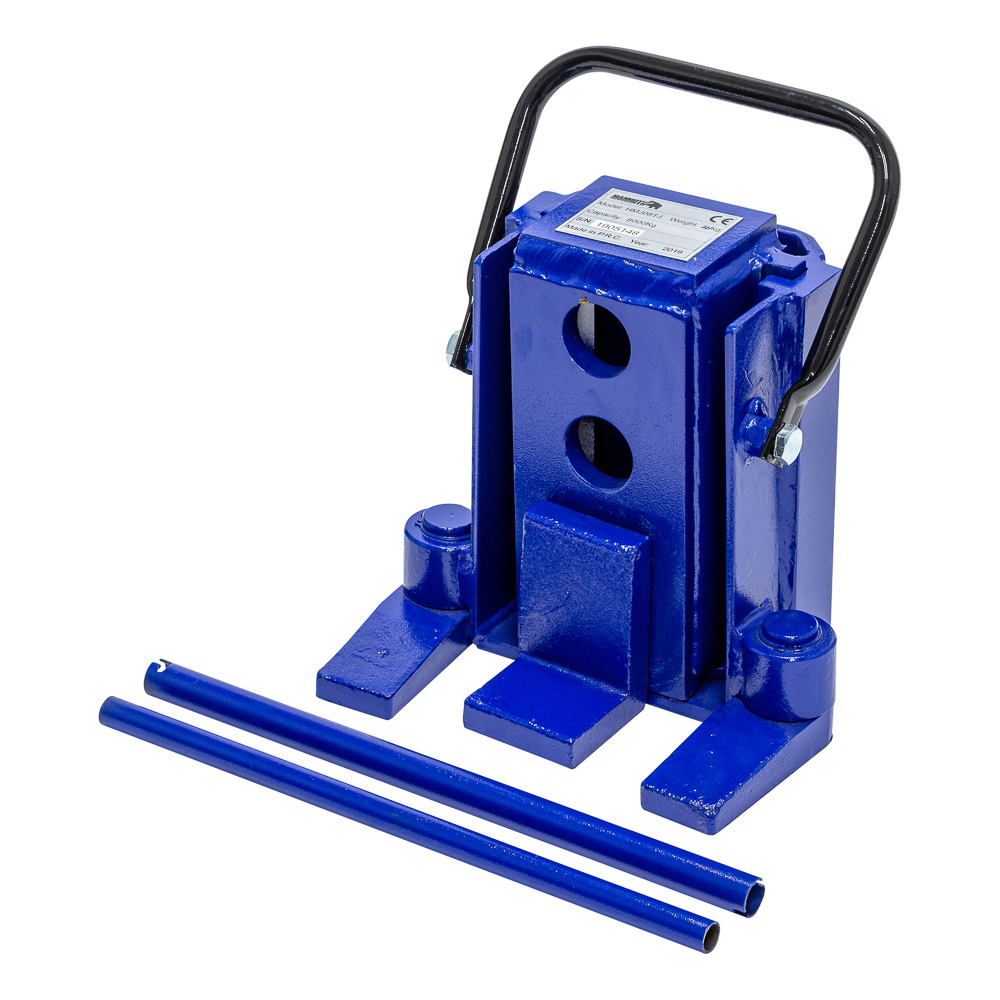

Hydraulic machine toe jack 8 ton with swivel base
Article no. HMJ08TJ
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic machine toe jack
swivel foot
capacity head = 10 ton
capacity foot = 8 ton
lifting stroke = 140mm
lifting range head = 269-409mm
lifting range foot = 20-160mm
claw height = 20mm
Specifications
Product dimensions
| Length | 250 mm |
|---|---|
| Width | 270 mm |
| Height | 420 mm |
| Weight | 28.5 kg |
Package dimensions
| Length | 310 mm |
|---|---|
| Width | 300 mm |
| Height | 280 mm |
| Weight | 29 kg |
EAN 8720028063147
