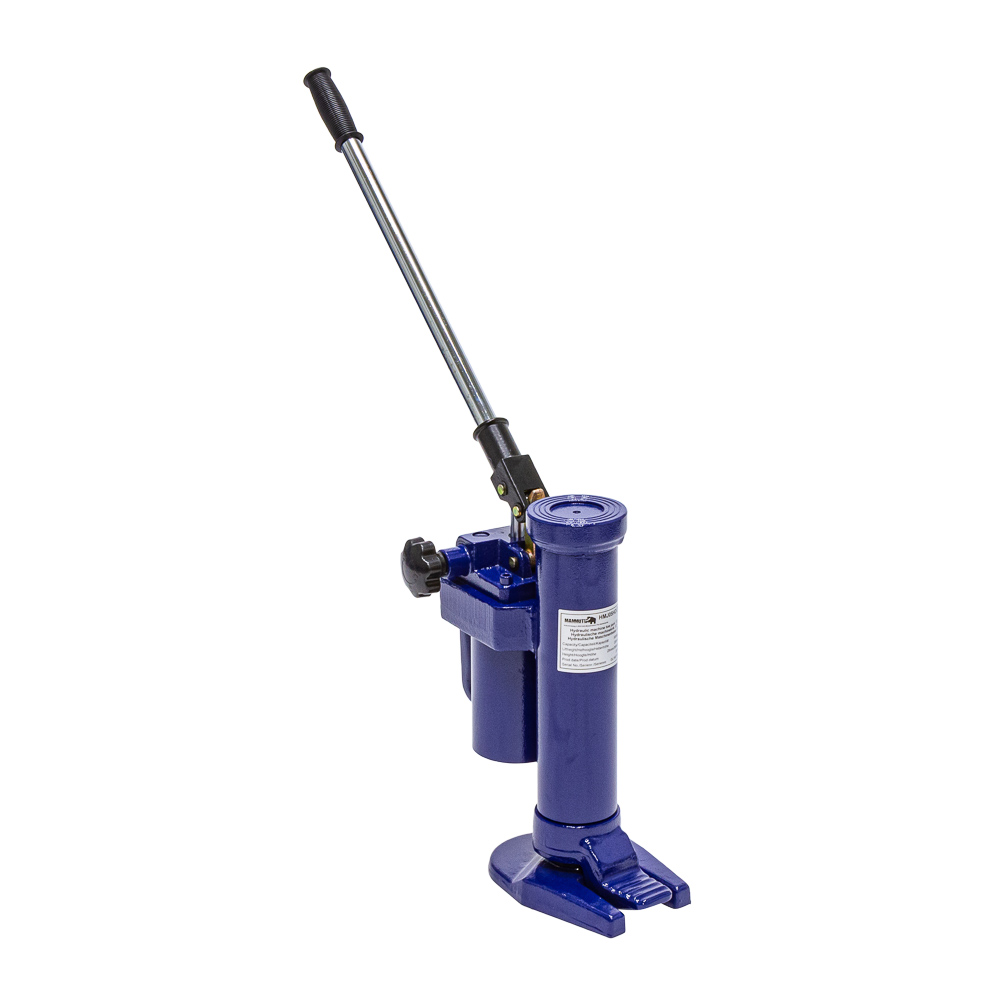

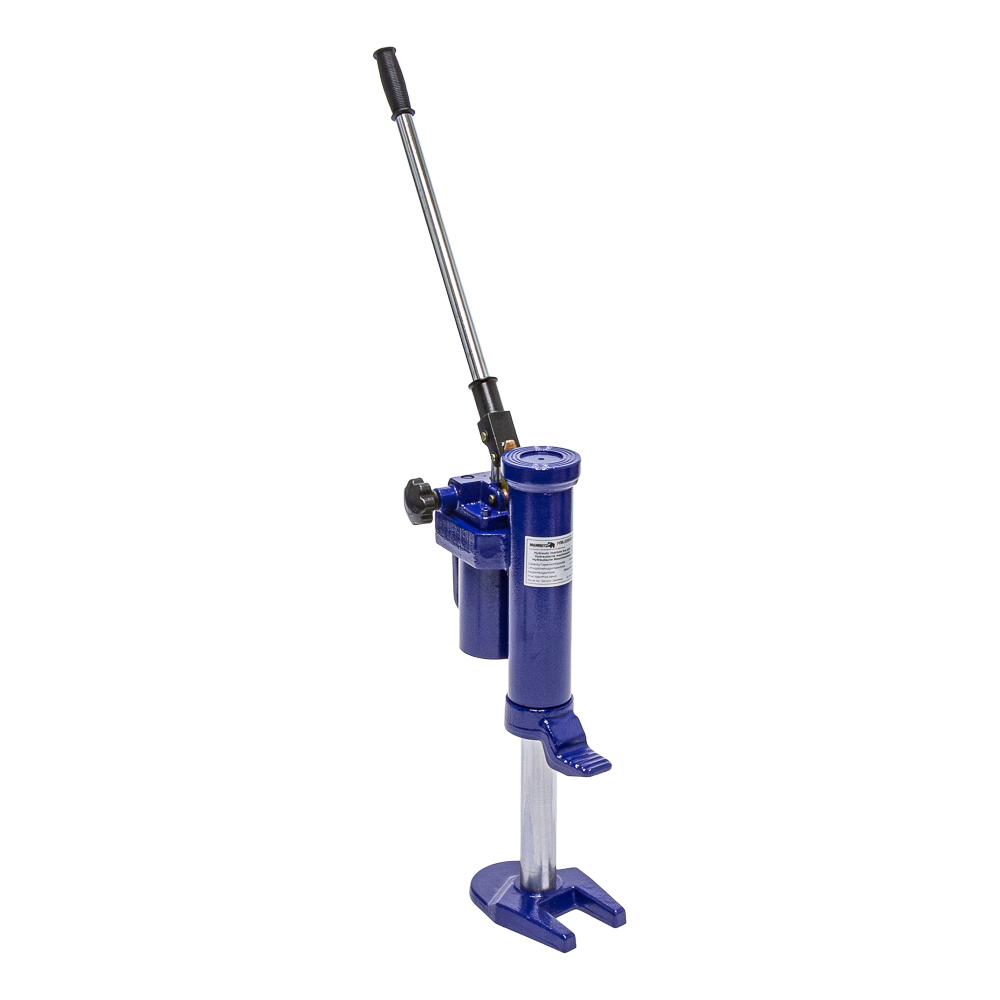

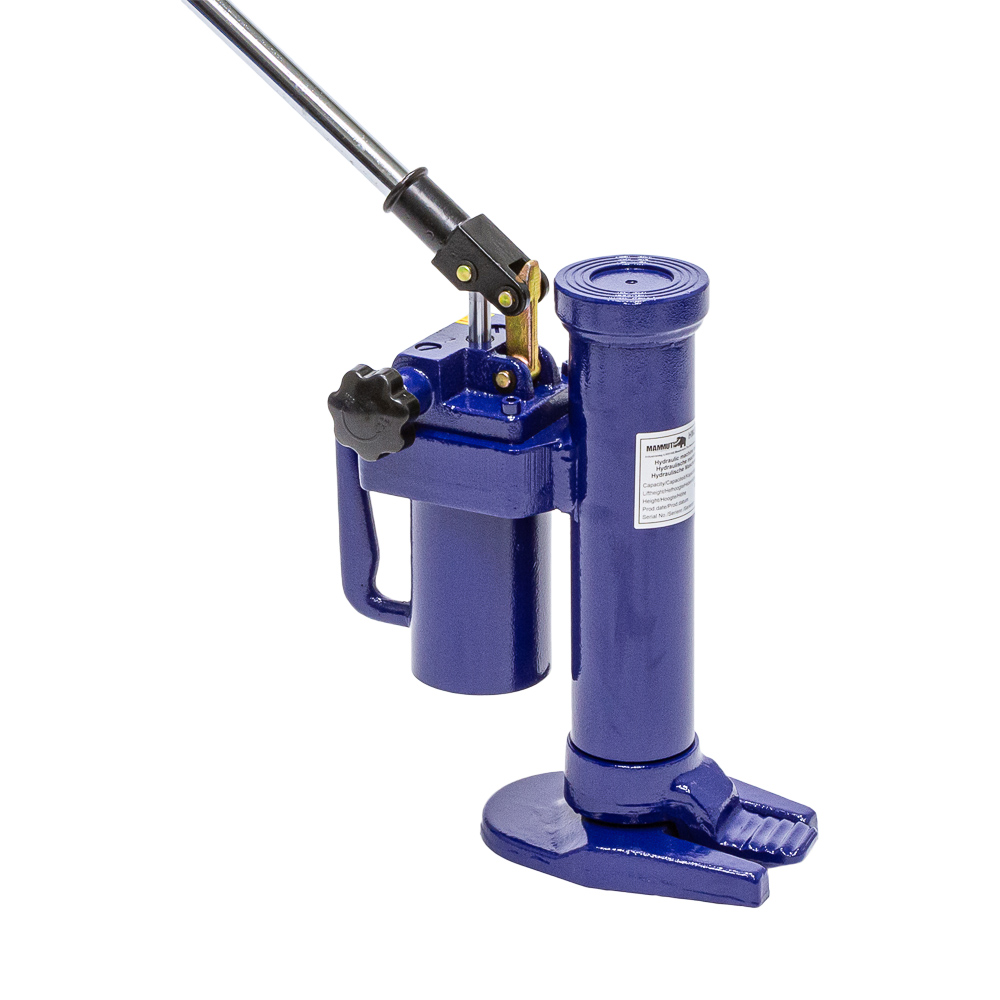

Hydraulic machine jack 5 ton
Article no. HMJ05HD
Reach up to 573mm
360 degrees rotatable
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic machine jack / machine lifter
This hydraulic machine lifter is used for maintenance and repair of heavy machinery, among other things.
capacity = 5 ton
lifting range of foot = 25-230mm
lifting range of head = 368-573mm
max lever force = 38kg
360 degrees rotatable
Specifications
Product dimensions
| Length | 330 mm |
|---|---|
| Width | 160 mm |
| Height | 580 mm |
| Weight | 25 kg |
Package dimensions
| Length | 365 mm |
|---|---|
| Width | 200 mm |
| Height | 440 mm |
| Weight | 25.5 kg |
EAN 8720028000548
