Jacks and stands

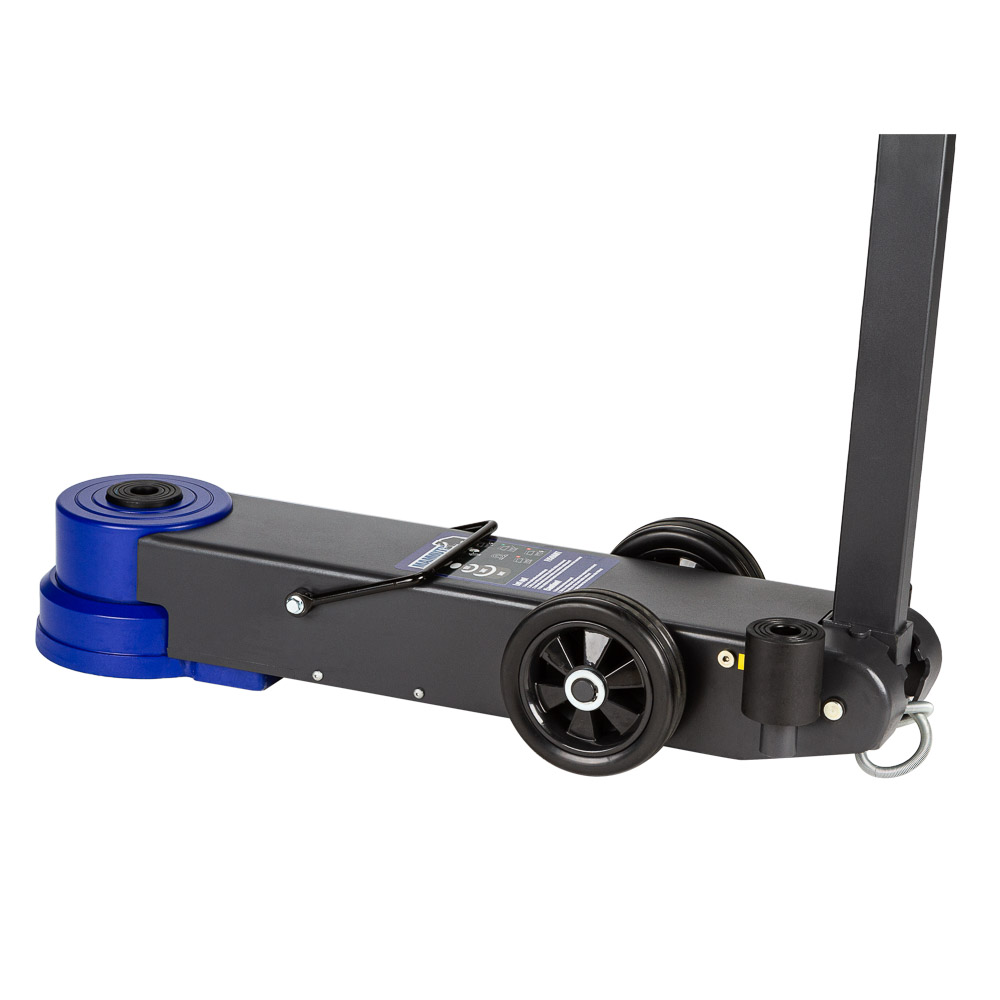

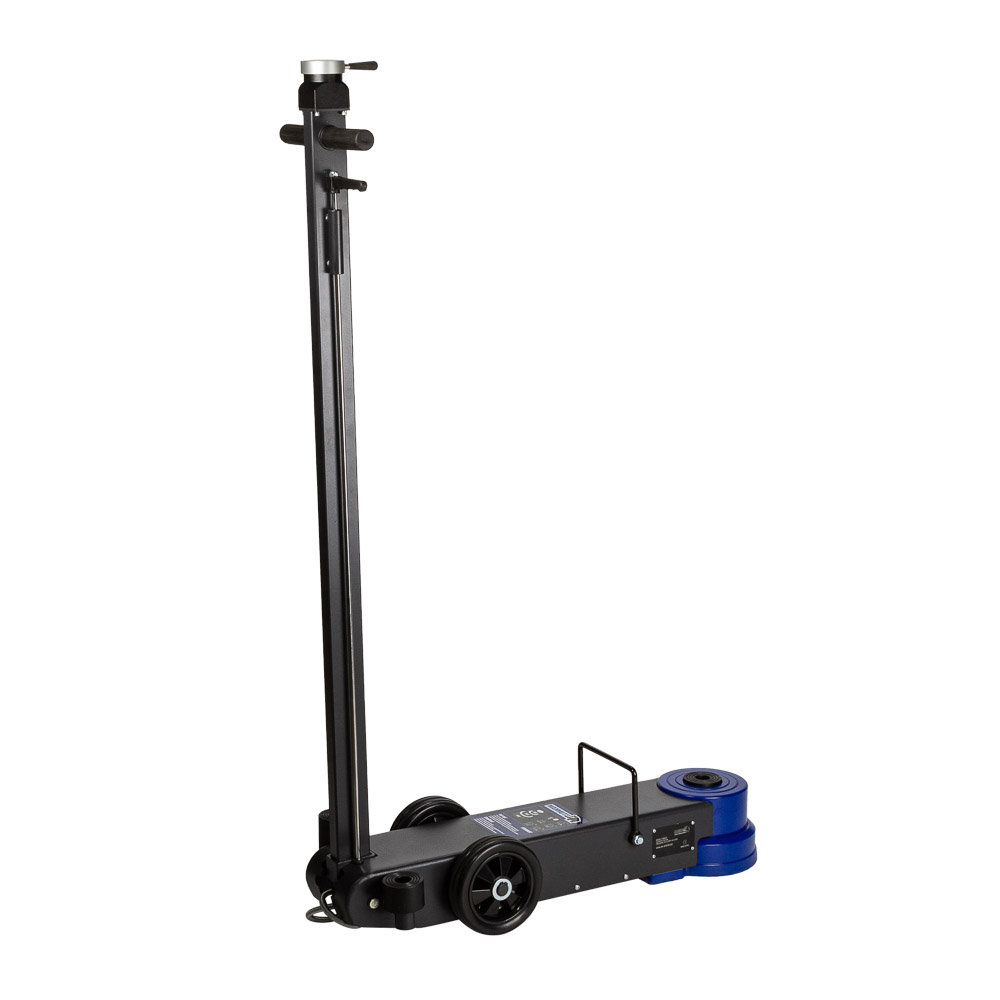

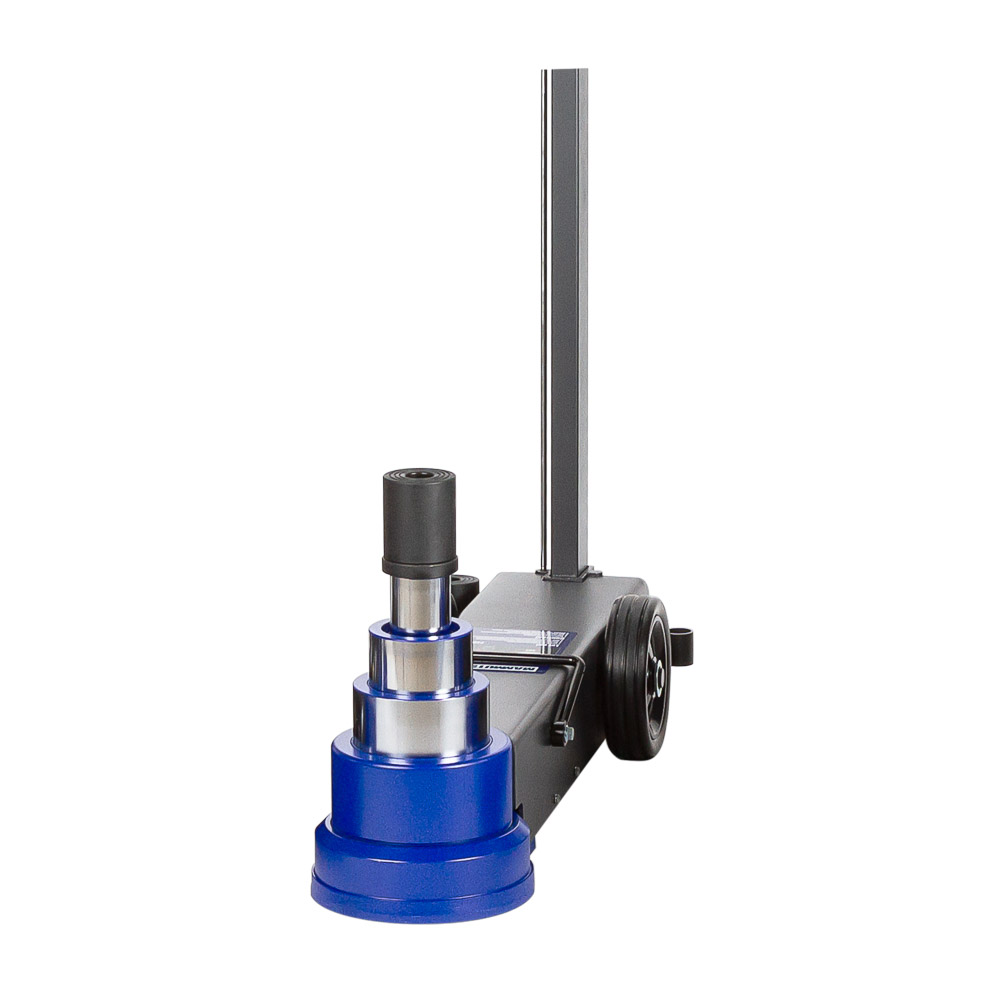

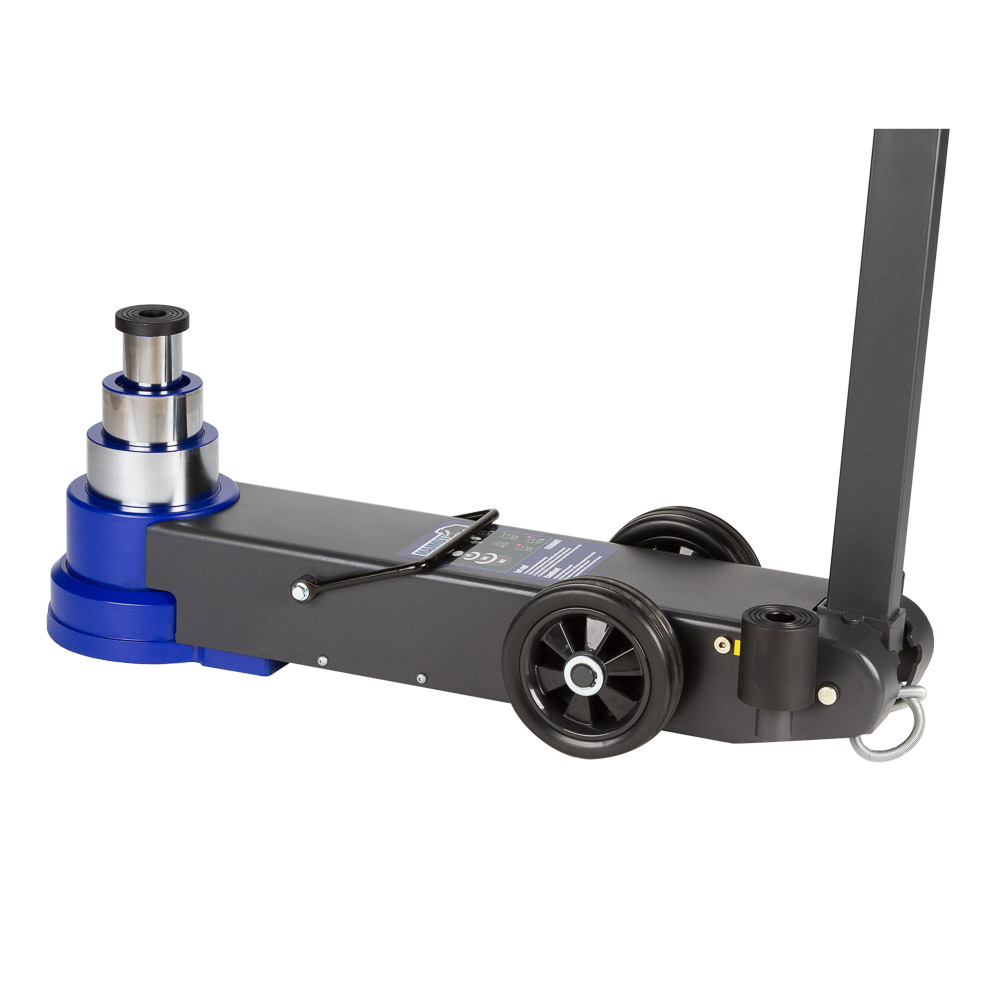

Pneumatic hydraulic jack 50T - 30T - 15T
Article no. FJ50AHT
- Pneumatic
- Handle with 3 positions
- Controlled lowering speed
- Dead man's control
-
Includes 2 height adapters
- Material
- Steel
- Lifting capacity
- 50 ton / 30 ton / 15 ton
- Lifting height min.
- 150 mm
- Lifting height max.
- 432 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth truck jack lifts heavy vehicles quickly and effortlessly. Suitable for workshops working with commercial vehicles, trucks, or agricultural machinery.
- Pneumatic: For fast and effortless operation.

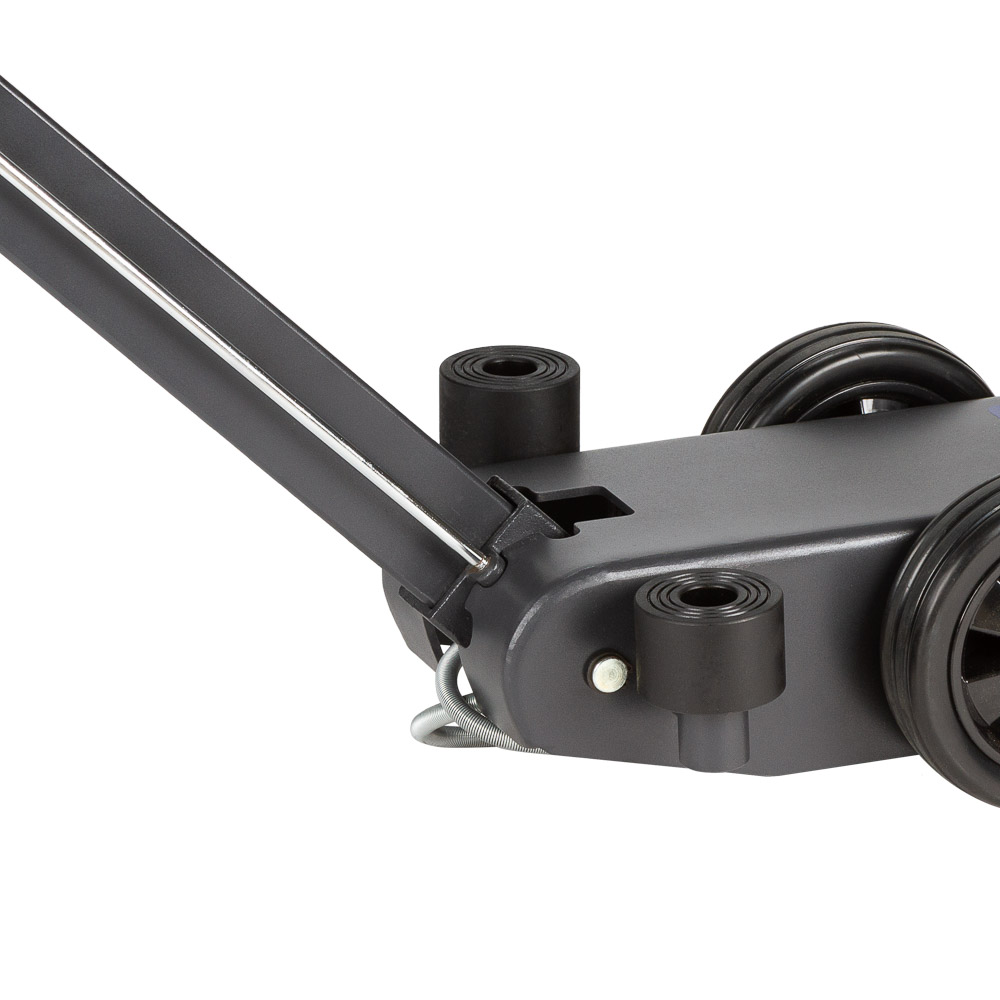

- Handle with 3 positions: Adjust the handle to three different positions.
- Controlled lowering speed: Ensures safe and controlled descent.
- Dead man's control: Automatically stops when the control is released.
-

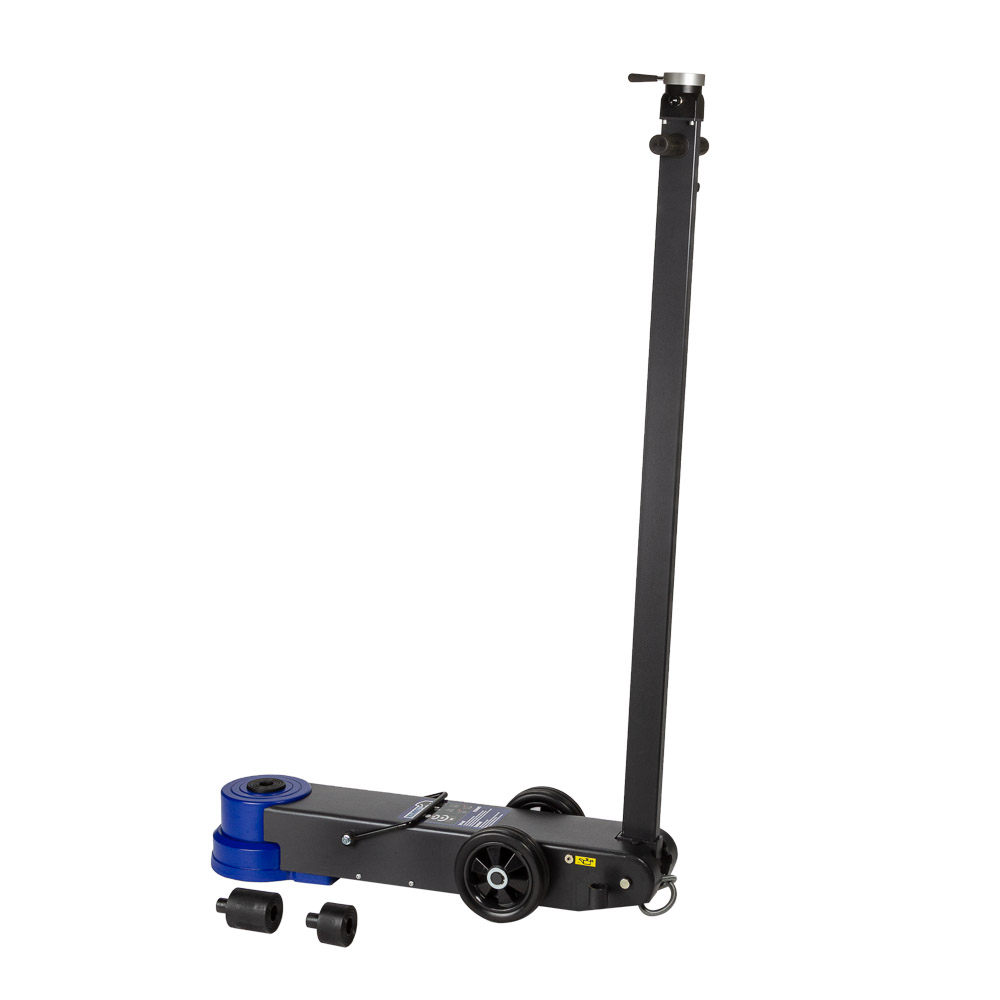

Includes 2 height adapters: Comes with two adapters, 45 mm and 75 mm high.

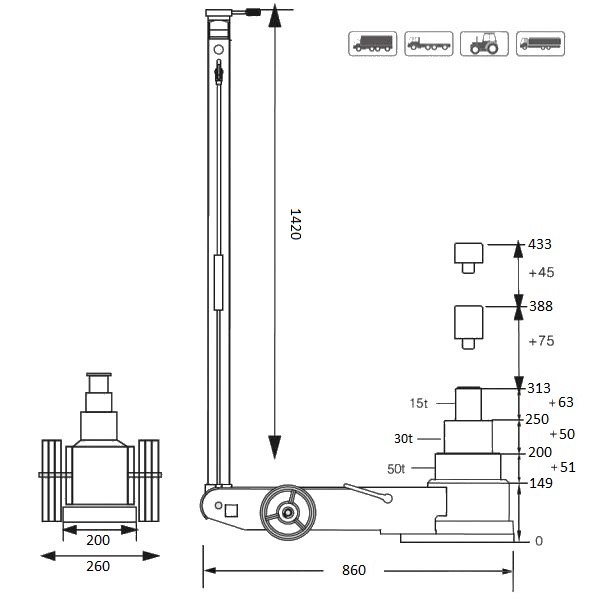

Specifications
| Material | Steel |
|---|---|
| Lifting capacity | 50 ton / 30 ton / 15 ton |
| Lifting height min. | 150 mm |
| Lifting height max. | 432 mm |
| Platform dimensions | ø70 mm |
| Handle length | 1370 mm |
| Wheel material | Rubber/polypropylene |
| Wheel diameter | ø165 mm |
| Working air pressure | 9 - 12 bar |
| Air consumption | 300 L/min |
| Air connection | 1/4" BSP |
| Oil capacity | 2.5 L |
| Oil type | OHCH15V |
Product dimensions
| Length | 858 mm |
|---|---|
| Width | 275 mm |
| Height | 150 mm |
| Weight | 54 kg |
Package dimensions
| Length | 1390 mm |
|---|---|
| Width | 290 mm |
| Height | 340 mm |
| Weight | 66.5 kg |
EAN 8720028000432
