Workshop equipment

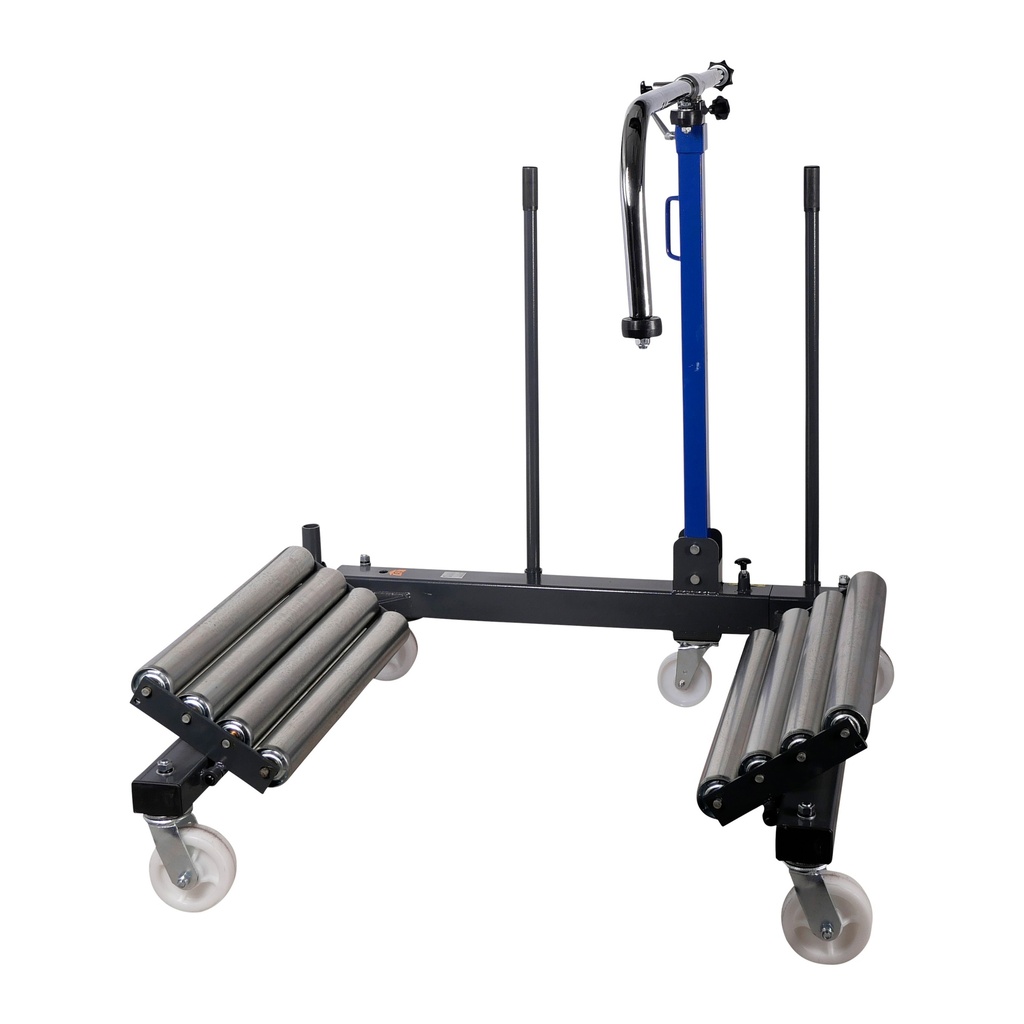

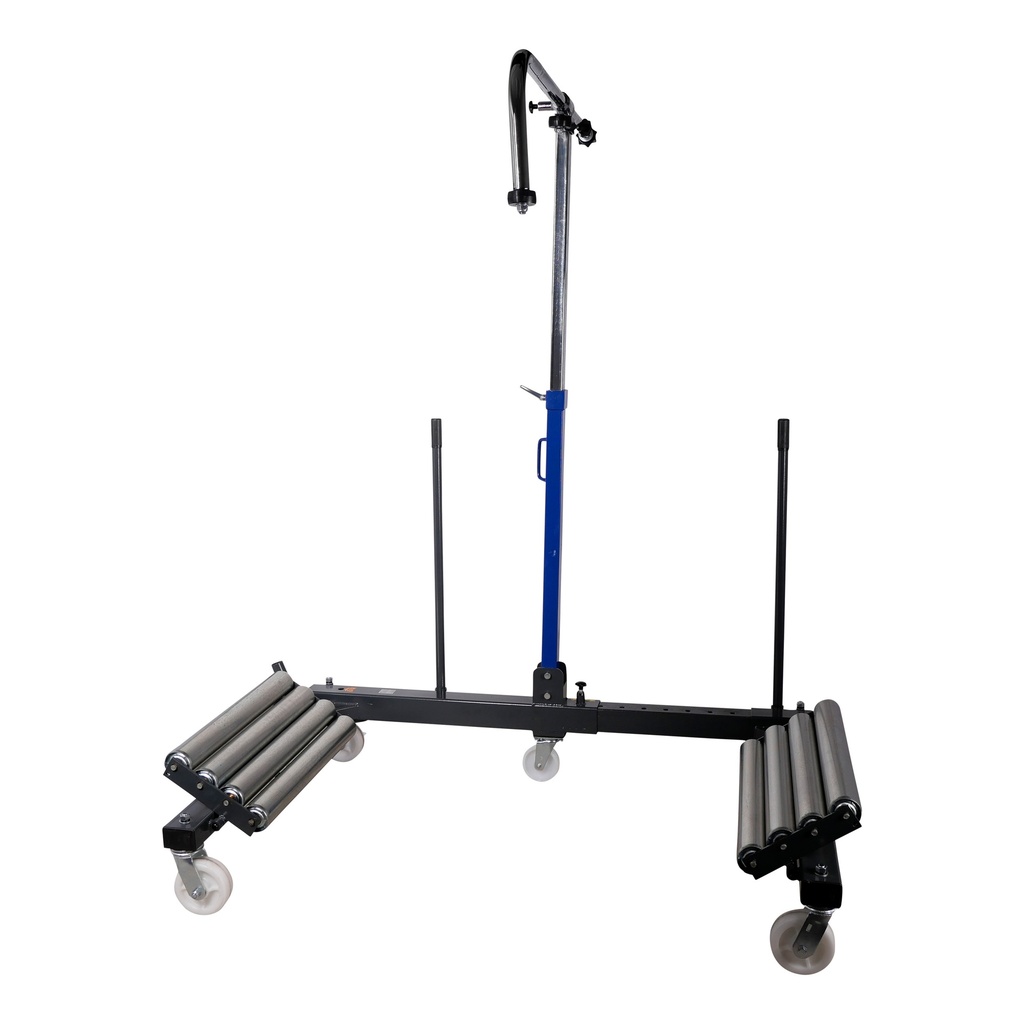

Wheel dolly 1.5 ton with 5 wheels
Article no. WD15HW
- High load capacity 1500 kg

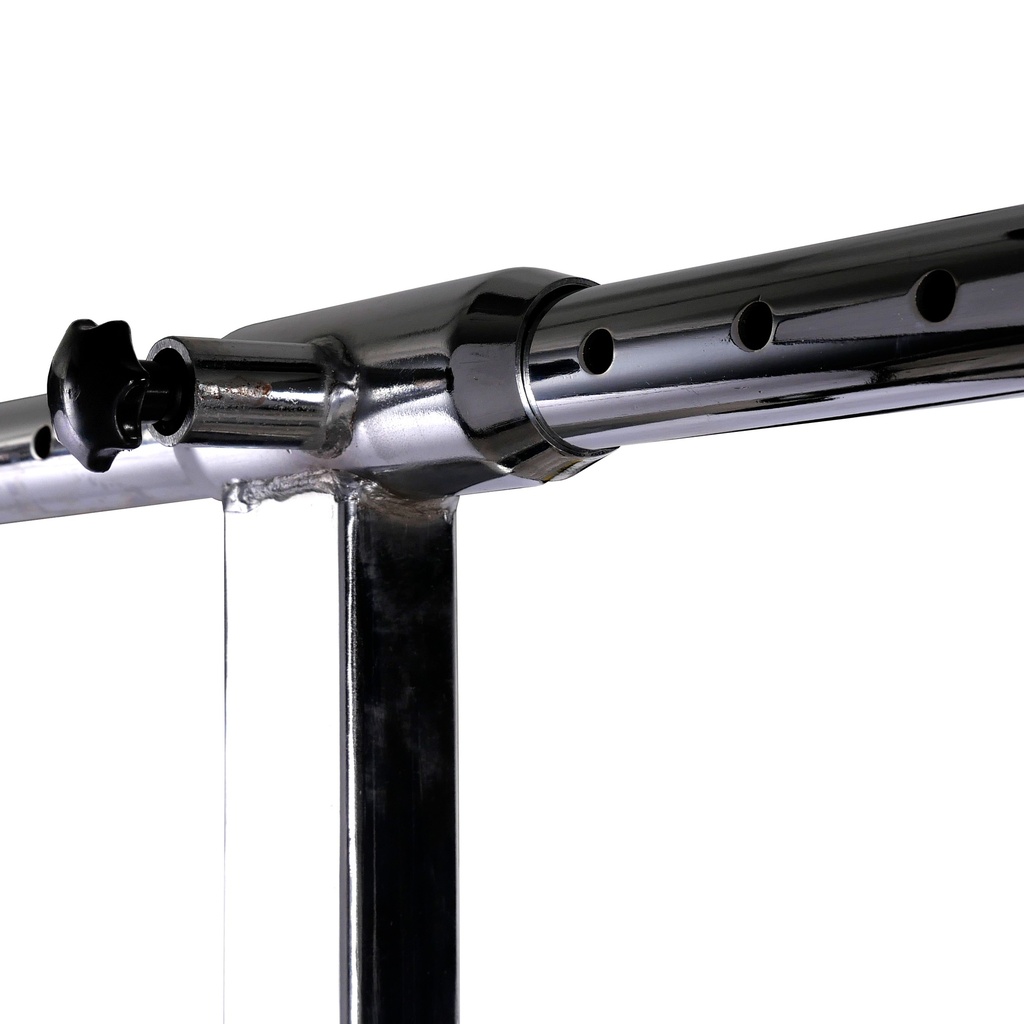

- Height-adjustable safety bar incl quick lock system
- Handles wheels up to 2200 mm in diameter
- 5 swivel wheels, two with brakes
- Eight ball-bearing steel rollers incl spring for correct positioning
- Lifting capacity
- 1500 kg
- Lifting height range
- 0 - 750 mm
- Wheel diameter range
- 1000 - 2200 mm
- Wheel width max.
- 1100 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Wheel dolly 1.5 ton from Mammuth
is a powerful and versatile tool designed for safely lifting and maneuvering heavy-duty wheels.
With a load capacity of 1500 kg, it can easily handle large wheels, making it perfect for professional garages and workshops.
- Equipped with a quick-lock system for secure and adjustable wheel positioning.
- Capable of managing wheels up to 2200 mm in diameter.

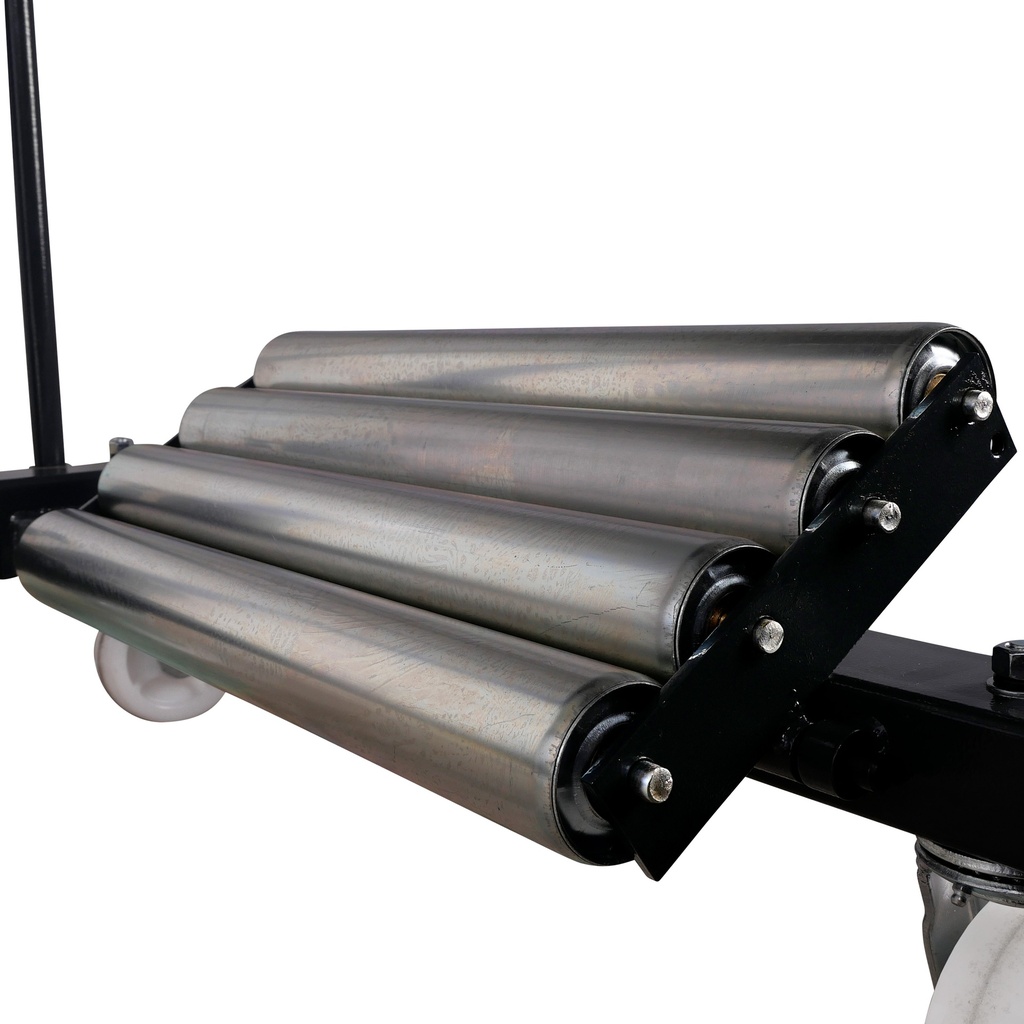

- Equipped with extra large rollers which can handle a wheel width max of 1100mm

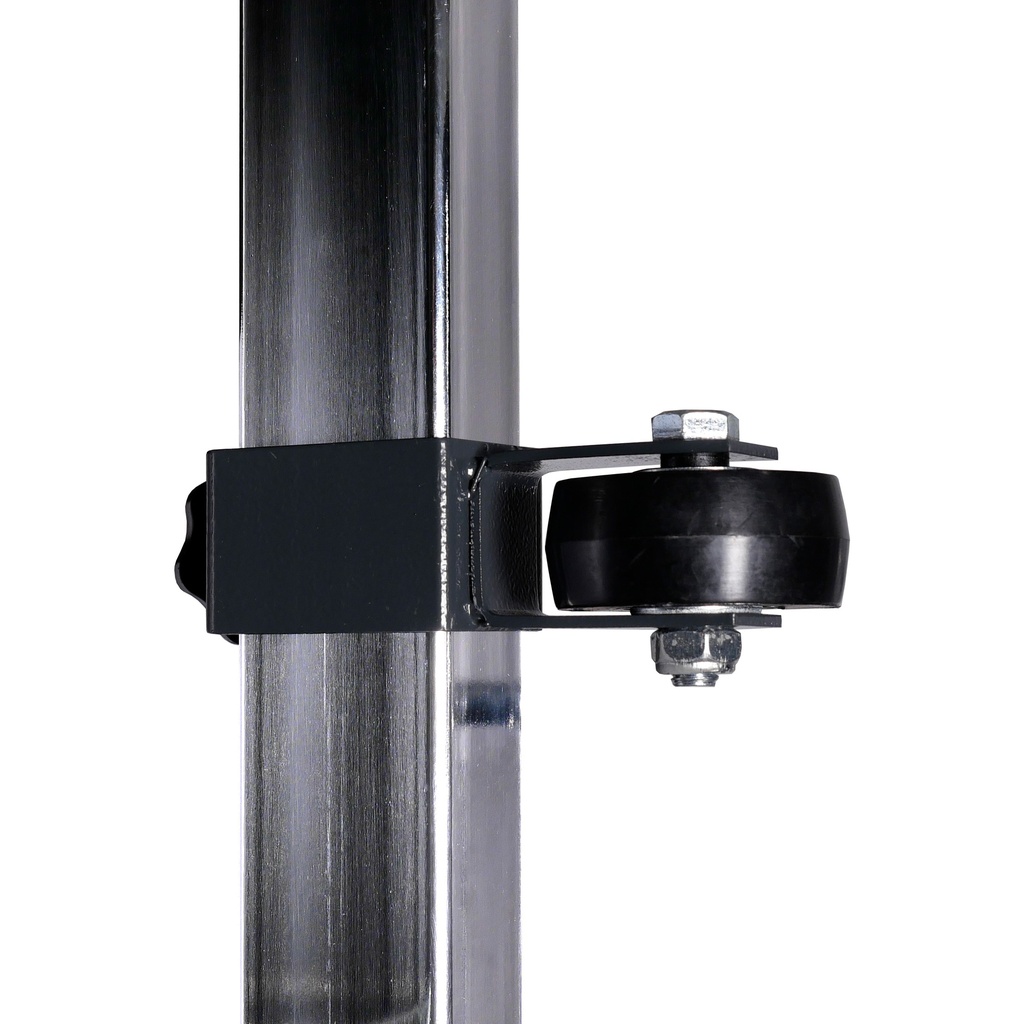

- The safety bar has an additional roller to guide the wheel and position the wheel smoothly.
- The button frame is made out of 1 strong welded construction.
- Equipped with 5 swivel wheels, including two with brakes for stability during movement.

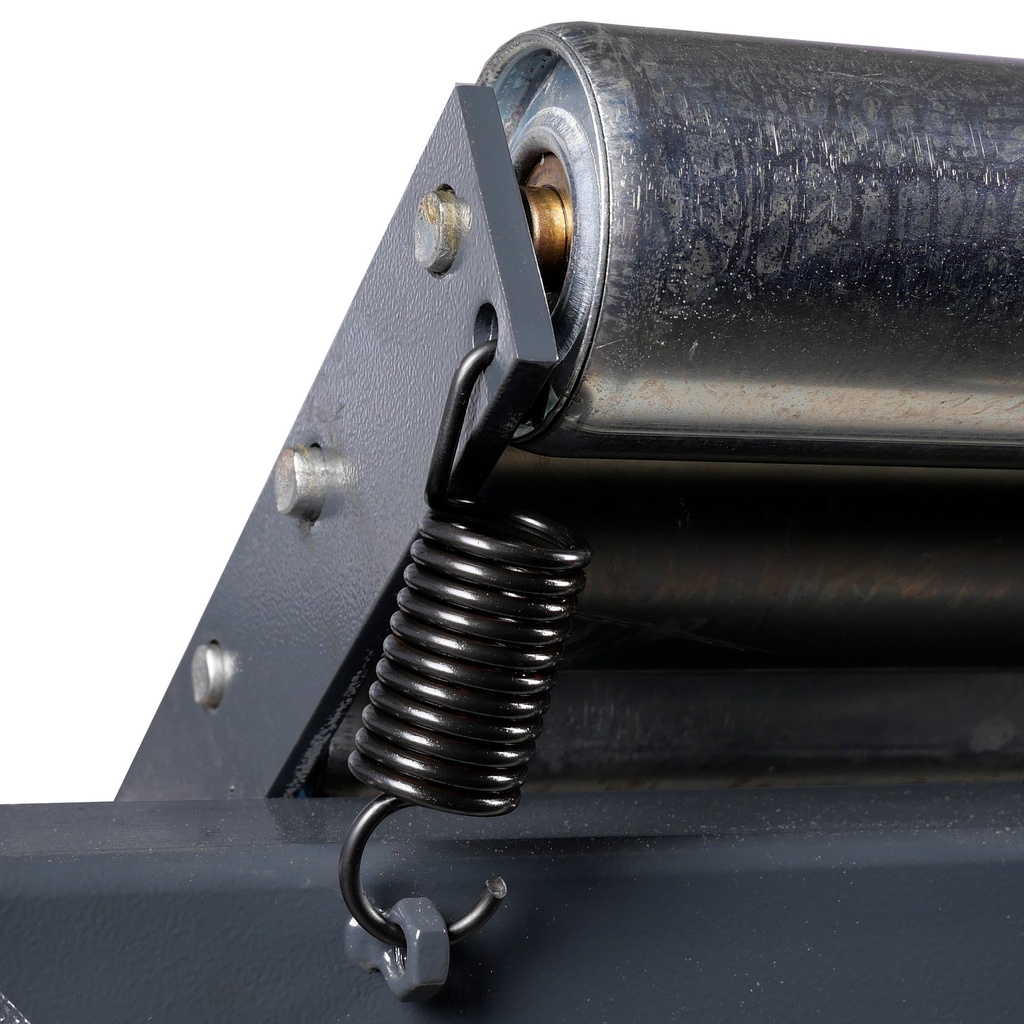

- Includes eight ball-bearing steel rollers with springs for accurate wheel positioning.
Specifications
| Lifting capacity | 1500 kg |
|---|---|
| Lifting height range | 0 - 750 mm |
| Wheel diameter range | 1000 - 2200 mm |
| Wheel width max. | 1100 mm |
| Material | Steel |
Product dimensions
| Length | 1270 mm |
|---|---|
| Width | 1100 mm |
| Height | 1340 mm |
| Weight | 133 kg |
Package dimensions
| Length | 1310 mm |
|---|---|
| Width | 1130 mm |
| Height | 340 mm |
| Weight | 161 kg |
EAN 8720028116140
