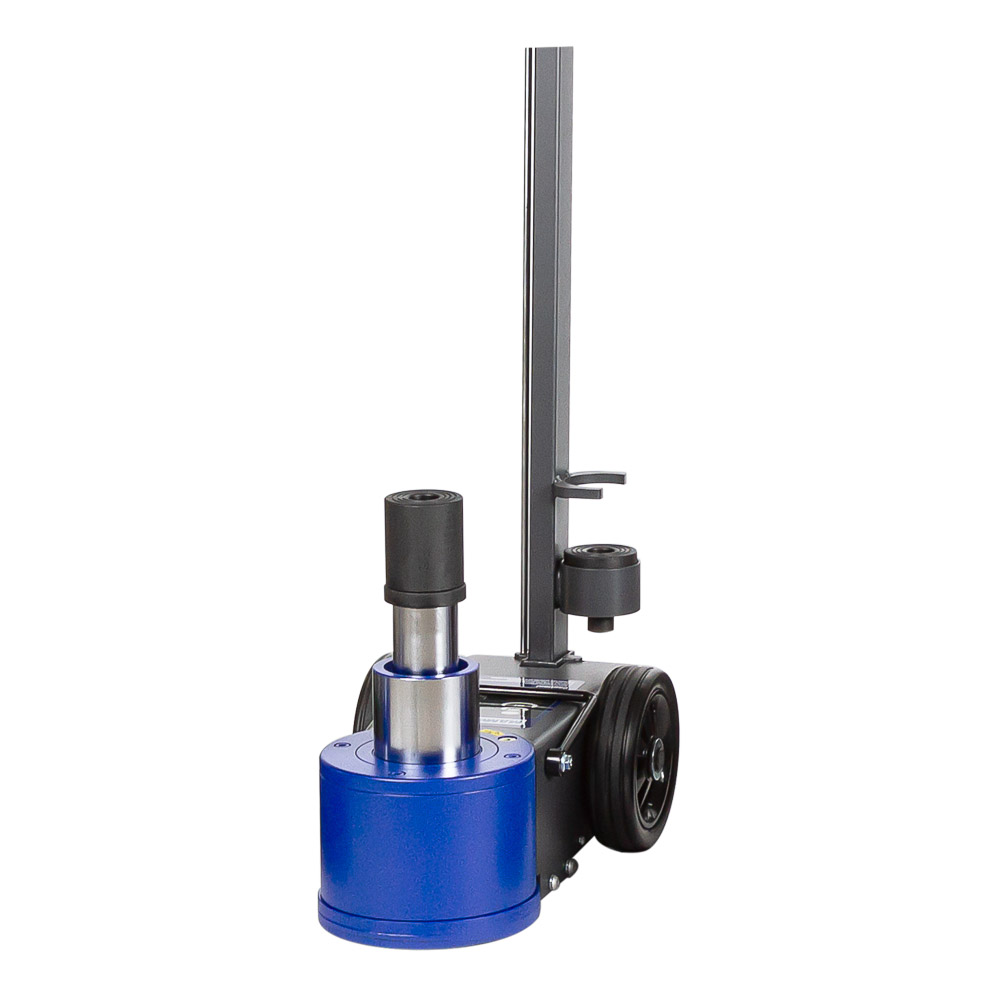

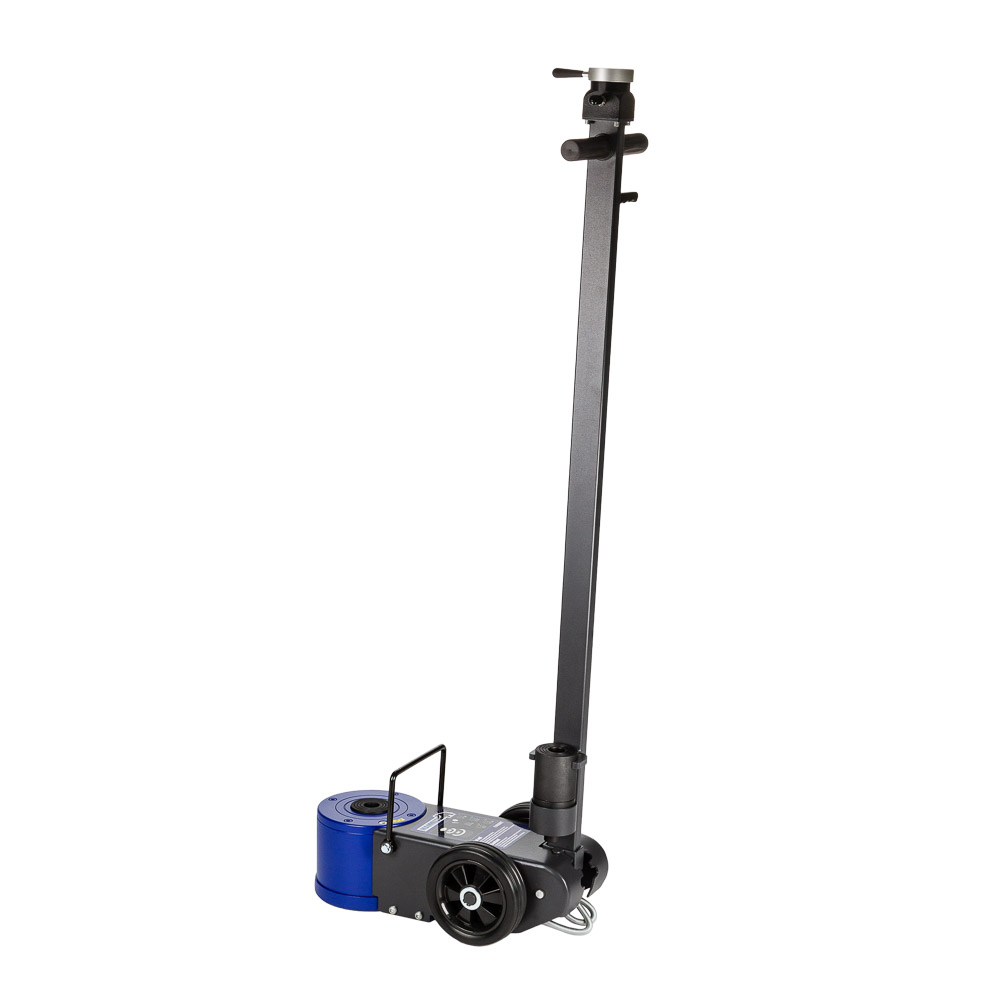

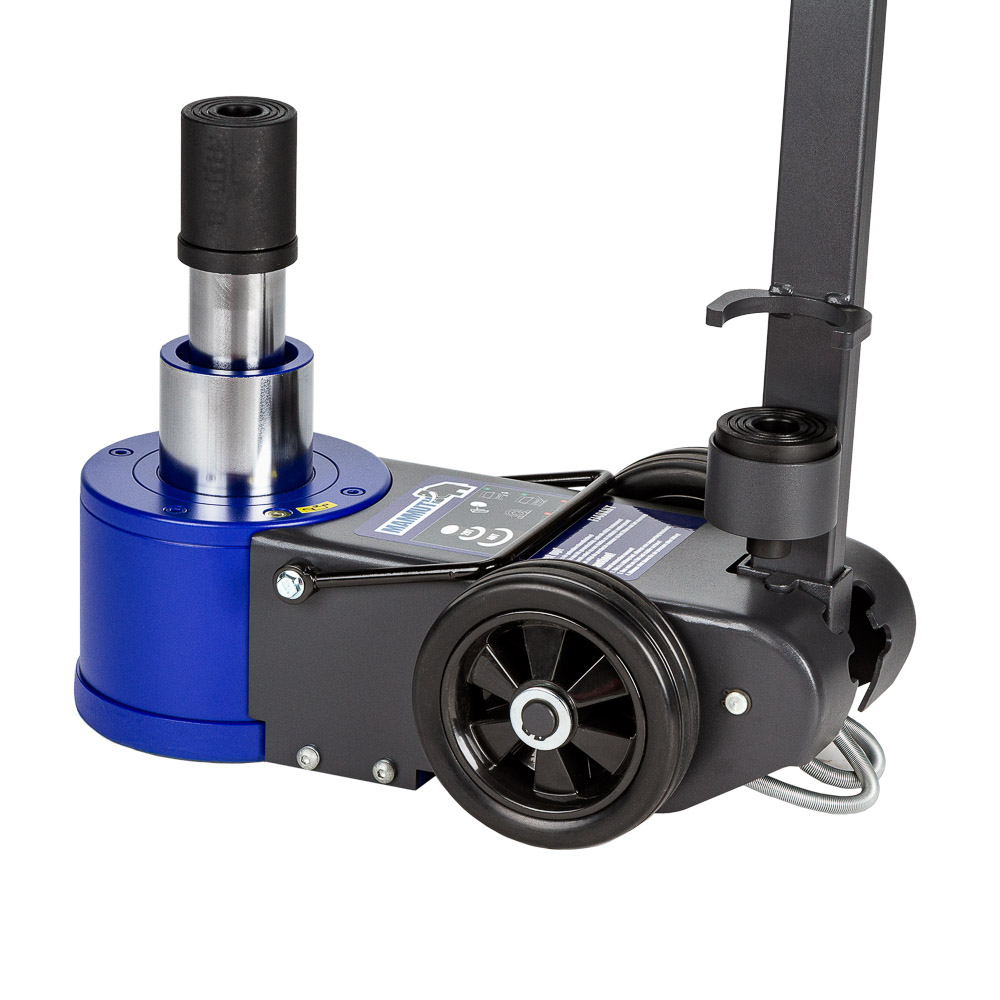

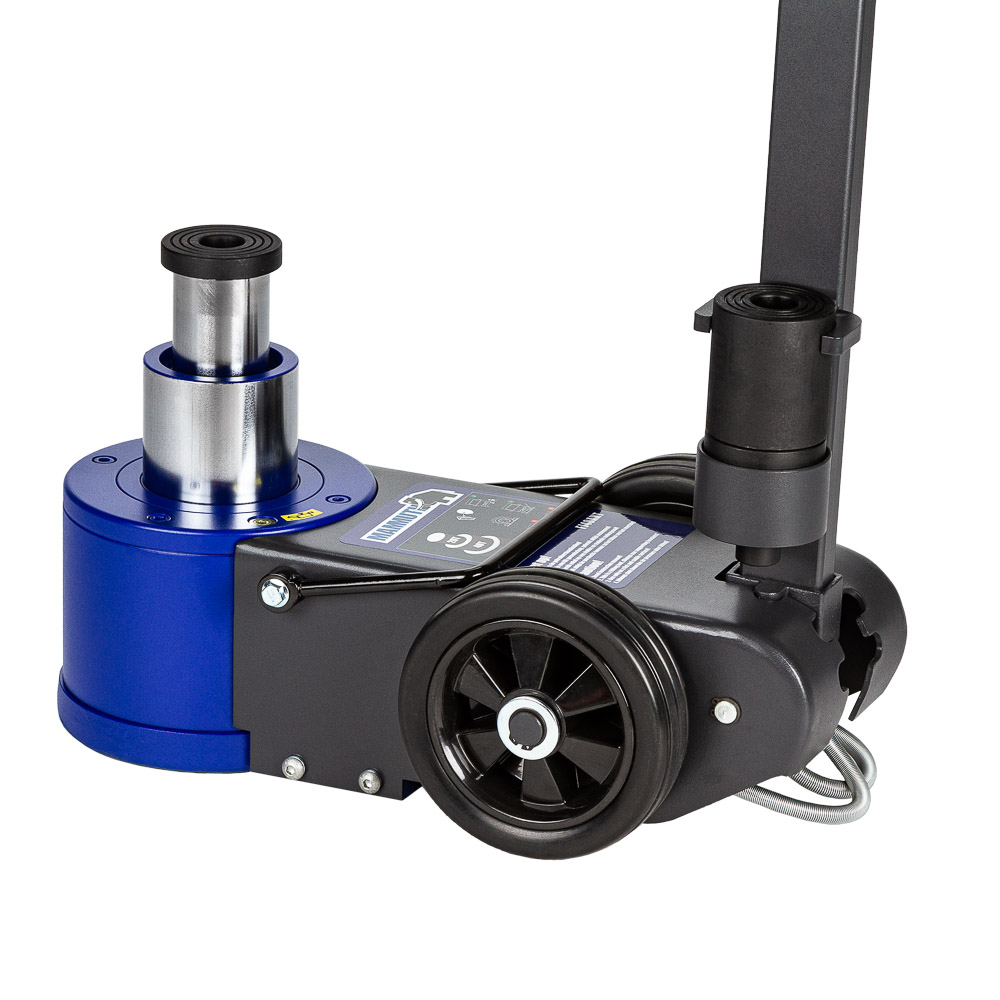

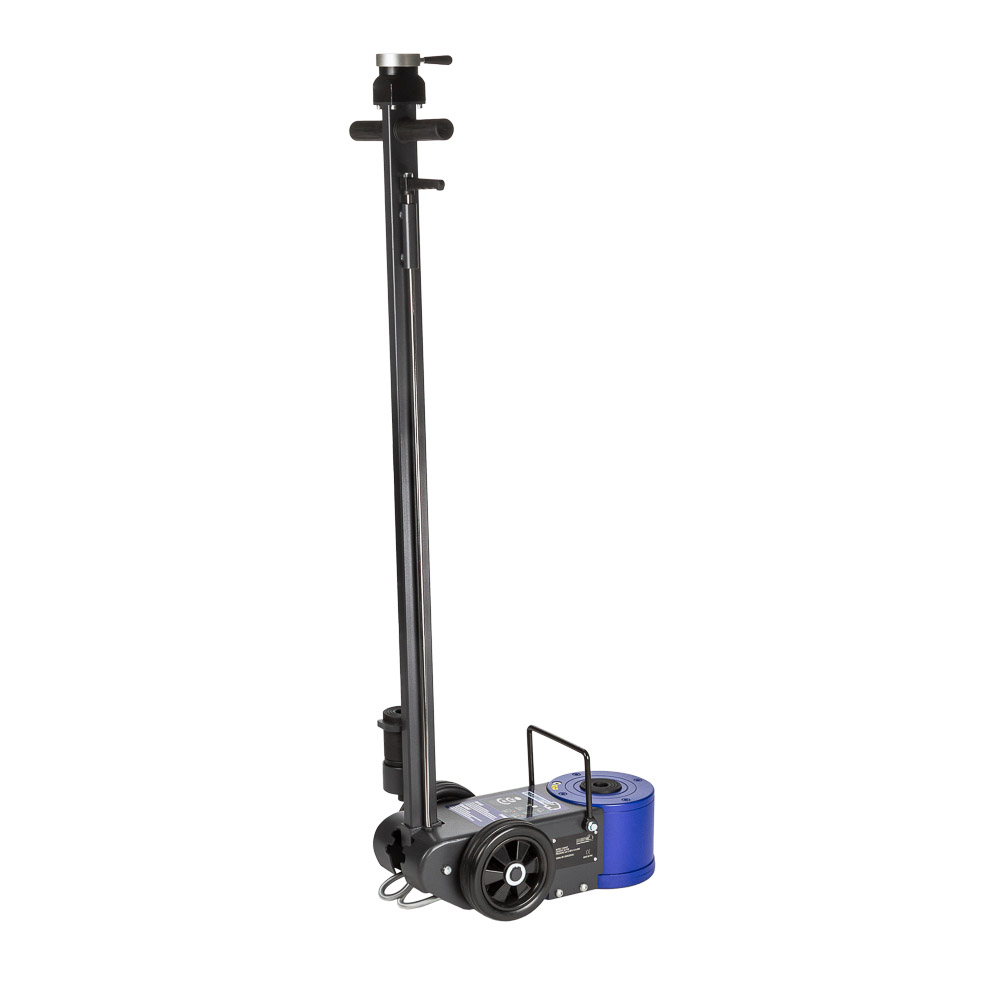

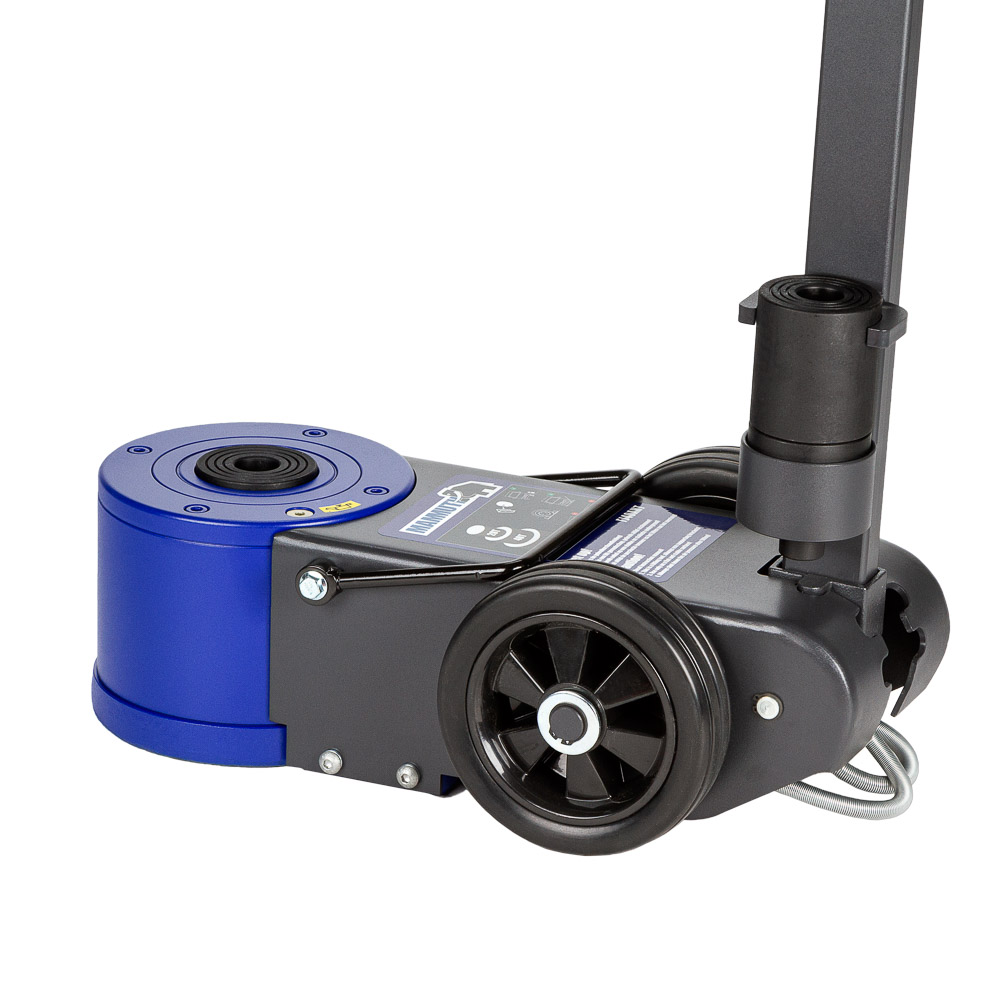

Pneumatic hydraulic jack 40T - 20T
Article no. FJ40AHT
- Pneumatic
- 3-position handle
-
Controlled lowering speed
-
Dead man’s control
- Includes 2 height adapters
- Material
- Steel
- Lifting capacity
- 40 ton / 20 ton
- Lifting height min.
- 150 mm
- Lifting height max.
- 409 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth truck jack lifts heavy vehicles quickly and effortlessly. Suitable for workshops that work with commercial vehicles, trucks, or agricultural machinery.
- Pneumatic: For fast and strain-free operation.

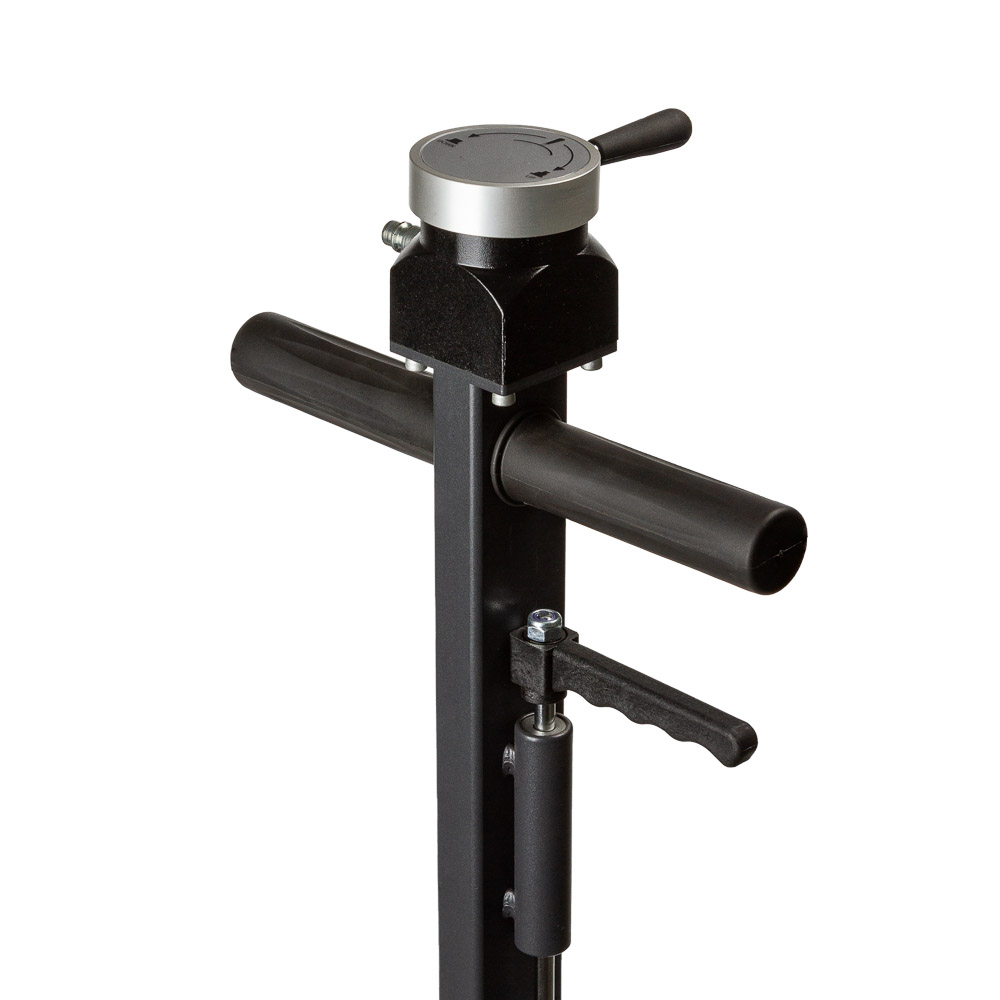

- 3-position handle: Set the handle in three different positions.
- Controlled lowering speed: Ensures a safe and controlled descent.
- Dead man’s control: Automatically shuts off when the control is released.
-

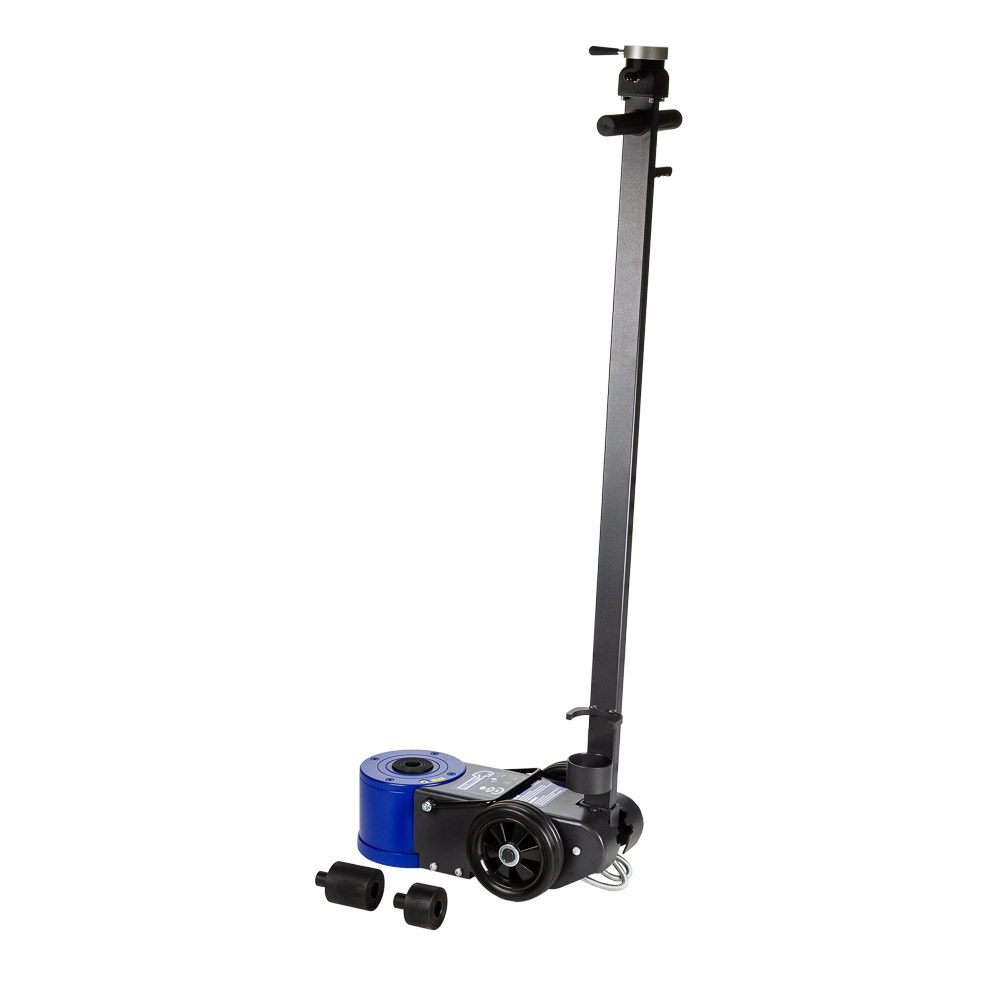

Includes 2 height adapters: Supplied with two adapters of 45 mm and 70 mm height.
Specifications
| Material | Steel |
|---|---|
| Lifting capacity | 40 ton / 20 ton |
| Lifting height min. | 150 mm |
| Lifting height max. | 409 mm |
| Platform dimensions | ø70 mm |
| Handle length | 1300 mm |
| Wheel material | Rubber/polypropylene |
| Wheel diameter | ø165 mm |
| Working air pressure | 9 - 12 bar |
| Air consumption | 300 L/min |
| Air connection | 1/4" BSP |
| Oil capacity | 1 L |
| Oil type | OHCH15V |
Product dimensions
| Length | 494 mm |
|---|---|
| Width | 268 mm |
| Height | 150 mm |
| Weight | 44 kg |
Package dimensions
| Length | 1390 mm |
|---|---|
| Width | 280 mm |
| Height | 320 mm |
| Weight | 48 kg |
EAN 8720028000425
