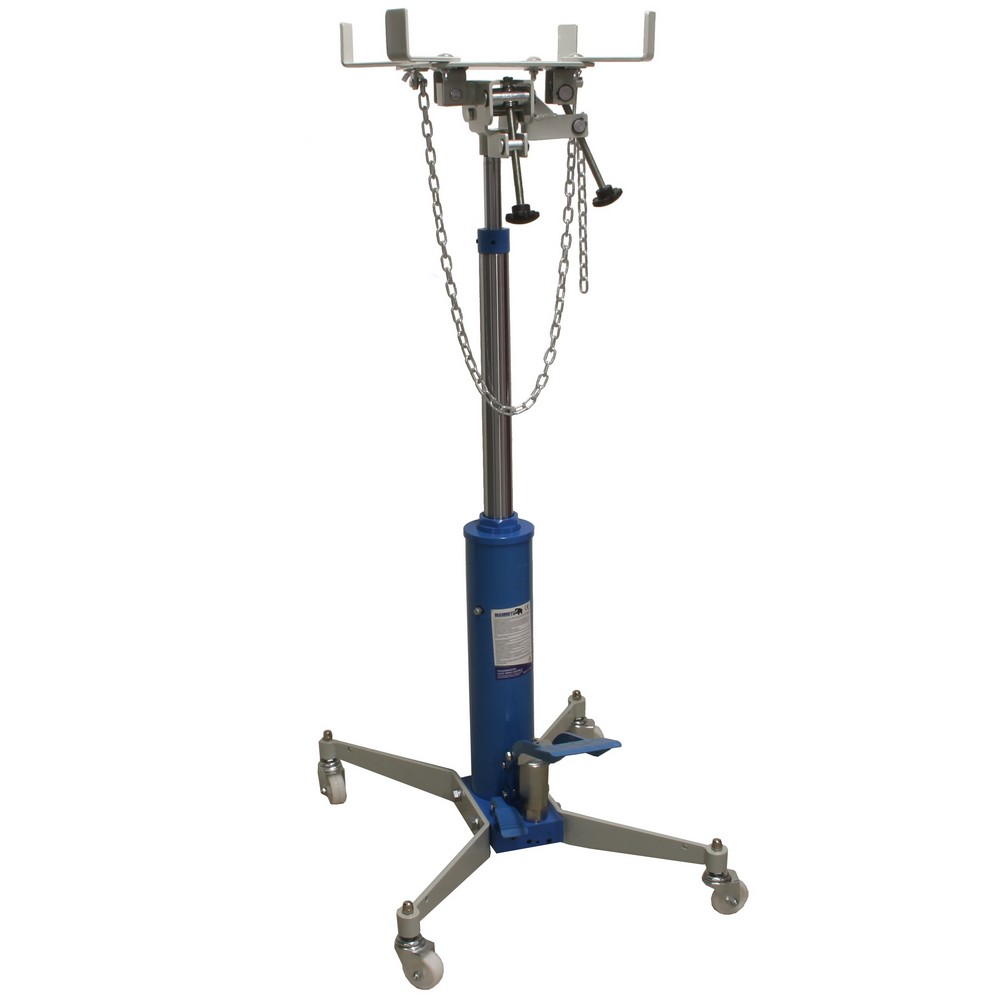

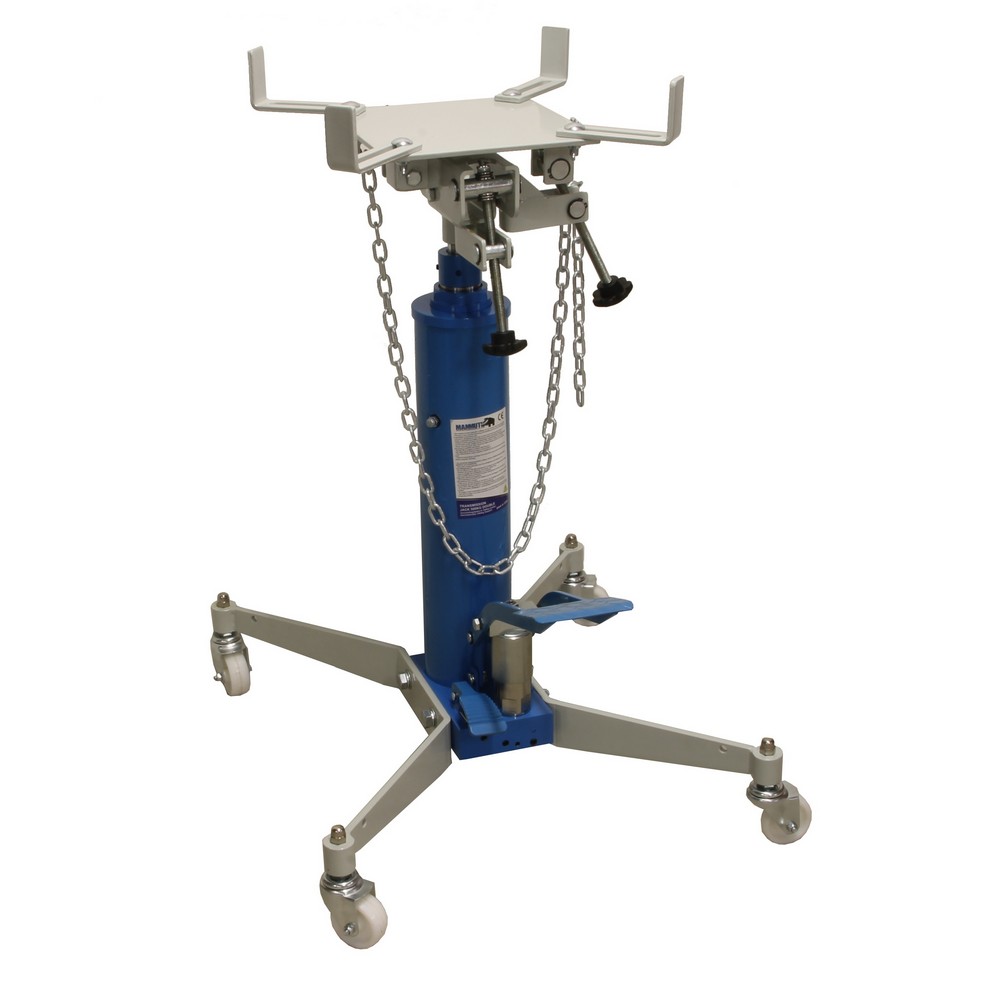

Transmission jack 500kg double ram
Article no. TJ5D
- Two-stage pump
- Controlled lowering speed
- Foot pedal
- Tiltable platform
- Low minimum height
- Material
- Steel
- Lifting capacity
- 500 kg
- Min. height
- 940 mm
- Max. height
- 1970 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth transmission jack is designed for the fast and safe installation and removal of gearboxes. The jack is equipped with nylon wheels that resist oil, grease, acids, and other chemicals.
- Two-stage pump: Fast lifting without load, controlled under load.
- Controlled lowering speed: Ensures safe and steady descent.
- Foot pedal: Keeps both hands free while lifting.

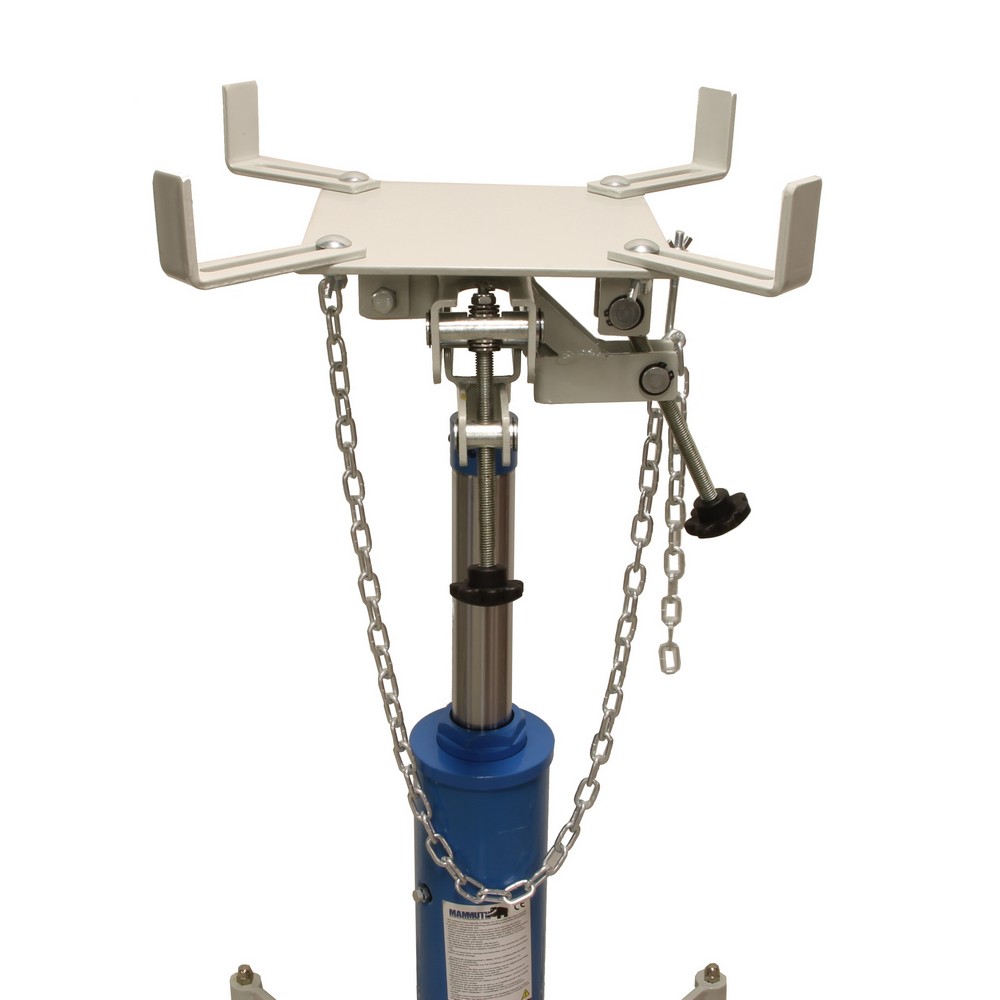

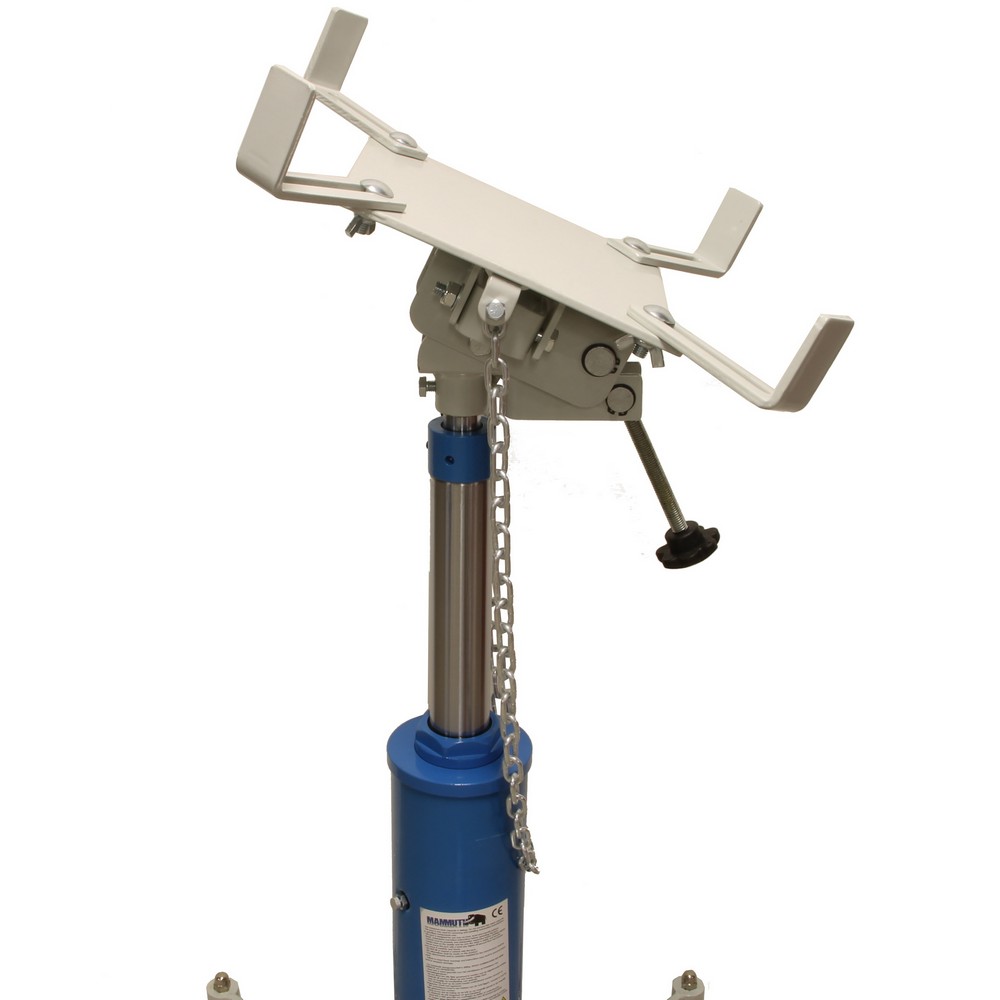

- Tiltable platform: Easily adjustable via spindle.
- Low minimum height: Minimum height of just 940 mm.
Specifications
| Material | Steel |
|---|---|
| Lifting capacity | 500 kg |
| Min. height | 940 mm |
| Max. height | 1970 mm |
| Hook spacing | 280 mm |
| Hook height | 70 mm |
| Wheel material | Nylon |
| Wheel diameter | ø77 mm |
| Oil capacity | 3 L |
| Oil type | OHCH15V |
Product dimensions
| Length | 700 mm |
|---|---|
| Width | 650 mm |
| Height | 940 mm |
| Weight | 66 kg |
Package dimensions
| Length | 550 mm |
|---|---|
| Width | 880 mm |
| Height | 360 mm |
| Weight | 75 kg |
EAN 8720028057238
See it in real life.
Visit a dealer near you for advice and to see the quality up close.
