Jacks and stands
Transmission jack 600kg
Article no. TJ6
- Two-stage pump
- Controlled lowering speed
- Foot pedal
- Fiberglass-reinforced nylon wheels
- Material
- Steel
- Lifting capacity
- 600 kg
- Min. height
- 1146 mm
- Max. height
- 1980 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description

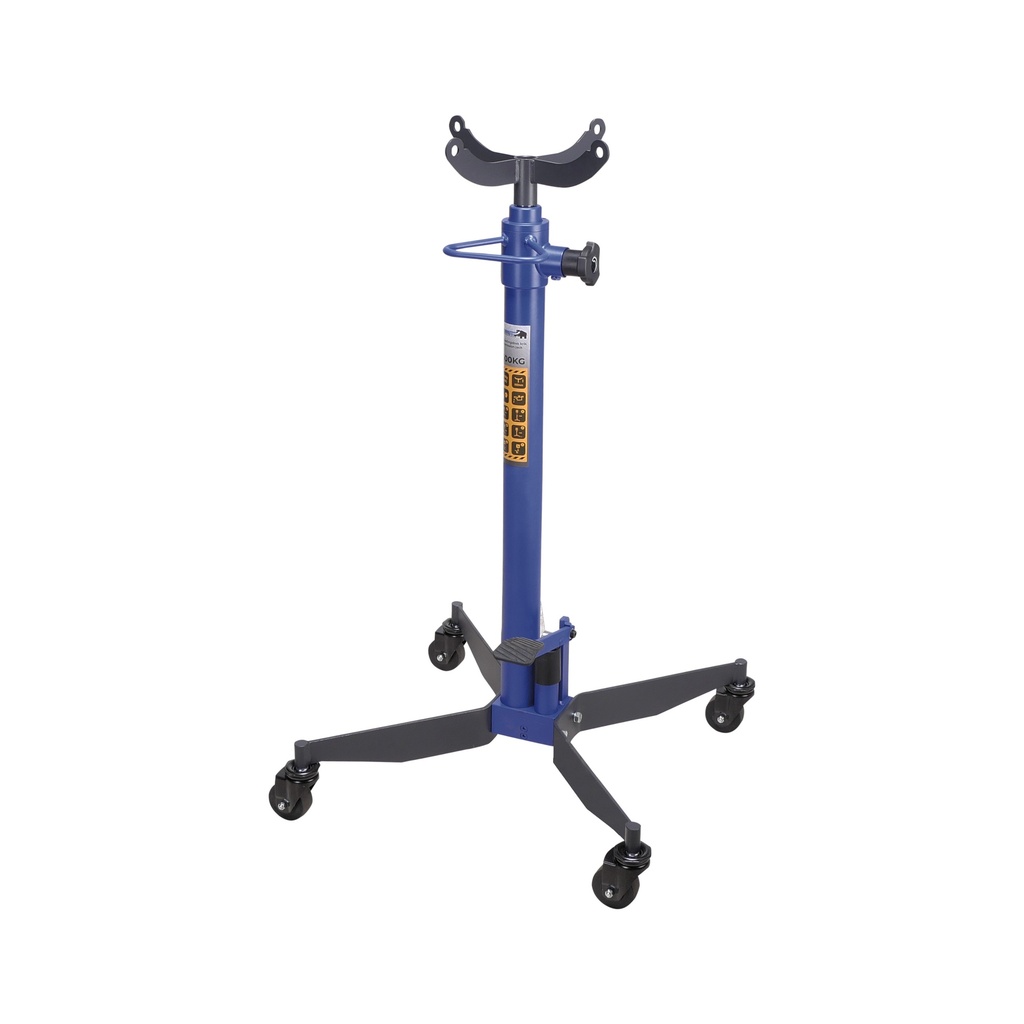

This Mammuth transmission jack is designed for the fast and safe installation and removal of gearboxes.
-
Two-stage pump: Fast lifting without load, controlled under load.
-
Controlled lowering speed: Ensures a safe and steady descent.
- Foot pedal: Keeps both hands free while lifting.
-
Fiberglass-reinforced nylon wheels: Wear-resistant, high load capacity, and resistant to oil, grease, acids, and other chemicals.
Specifications
| Material | Steel |
|---|---|
| Lifting capacity | 600 kg |
| Min. height | 1146 mm |
| Max. height | 1980 mm |
| Hook spacing | 300 mm |
| Hook height | 50 mm |
| Wheel material | Fibreglass-reinforced nylon |
| Wheel diameter | ø75 |
| Oil capacity | 1 L |
| Oil type | OKCH68 |
Product dimensions
| Length | 660 mm |
|---|---|
| Width | 680 mm |
| Height | 1155 mm |
| Weight | 34 kg |
Package dimensions
| Length | 1070 mm |
|---|---|
| Width | 235 mm |
| Height | 285 mm |
| Weight | 36 kg |
EAN 8720028106660
