Jacks and stands

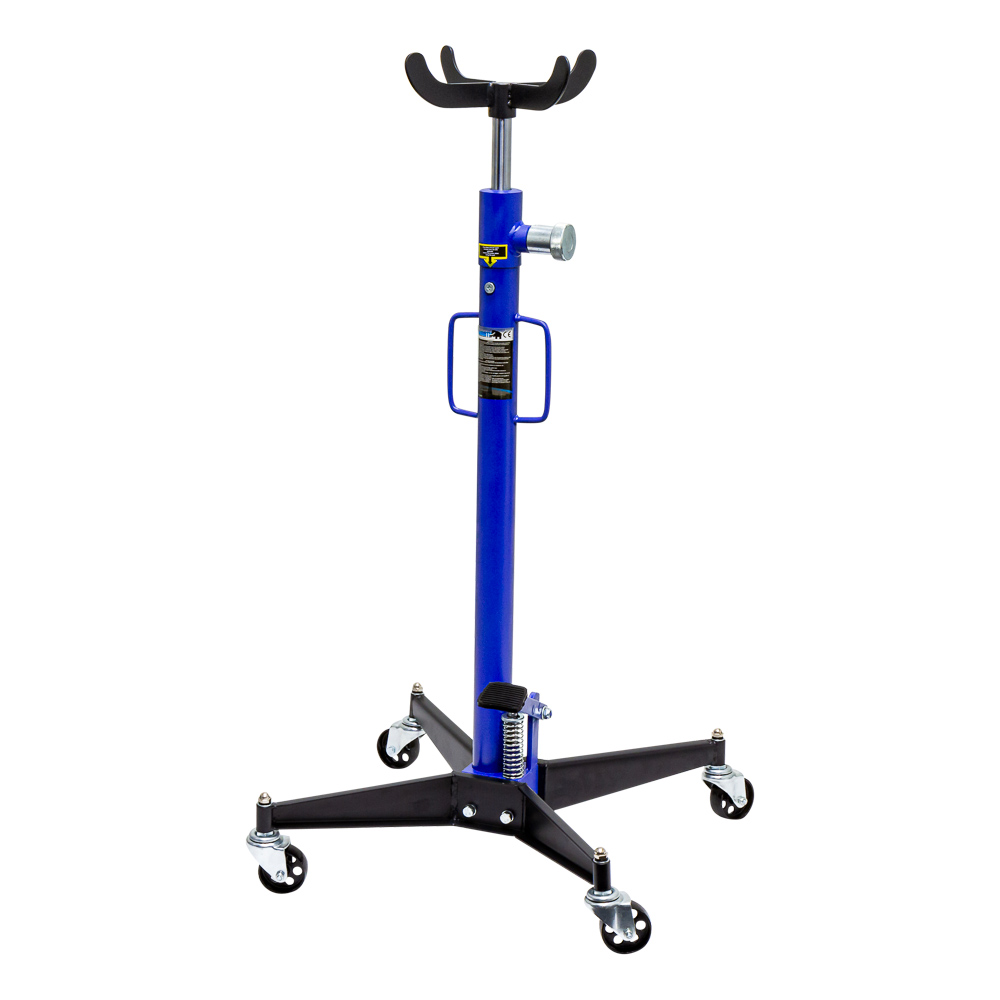

Transmission jack 500kg
Article no. TJ5
- Controlled lowering speed
- Foot pedal
- Nylon wheels
- Material
- Steel
- Lifting capacity
- 500 kg
- Min. height
- 1120 mm
- Max. height
- 1940 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth transmission jack is designed for the quick and safe installation and removal of gearboxes.
-
Controlled lowering speed: Ensures a safe and steady descent.
-
Foot pedal: Keeps both hands free while lifting.
- Nylon wheels: Resistant to oil, grease, acids, and other chemicals.
Specifications
| Material | Steel |
|---|---|
| Lifting capacity | 500 kg |
| Min. height | 1120 mm |
| Max. height | 1940 mm |
| Hook spacing | 280 mm |
| Hook height | 50 mm |
| Wheel material | Nylon |
| Wheel diameter | ø77 mm |
| Oil capacity | 1.050 L |
| Oil type | OHCH15V |
Product dimensions
| Length | 606 mm |
|---|---|
| Width | 606 mm |
| Height | 1120 mm |
| Weight | 28 kg |
Package dimensions
| Length | 1090 mm |
|---|---|
| Width | 230 mm |
| Height | 240 mm |
| Weight | 31.5 kg |
EAN 8720028057245
