Jacks and stands
Transmission jack 300kg
Article no. TJ3
-
Two-stage pump
- Controlled lowering speed
- Foot pedal
- Fiberglass-reinforced nylon wheels
- Material
- Steel
- Lifting capacity
- 300 kg
- Min. height
- 1140 mm
- Max. height
- 2000 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description

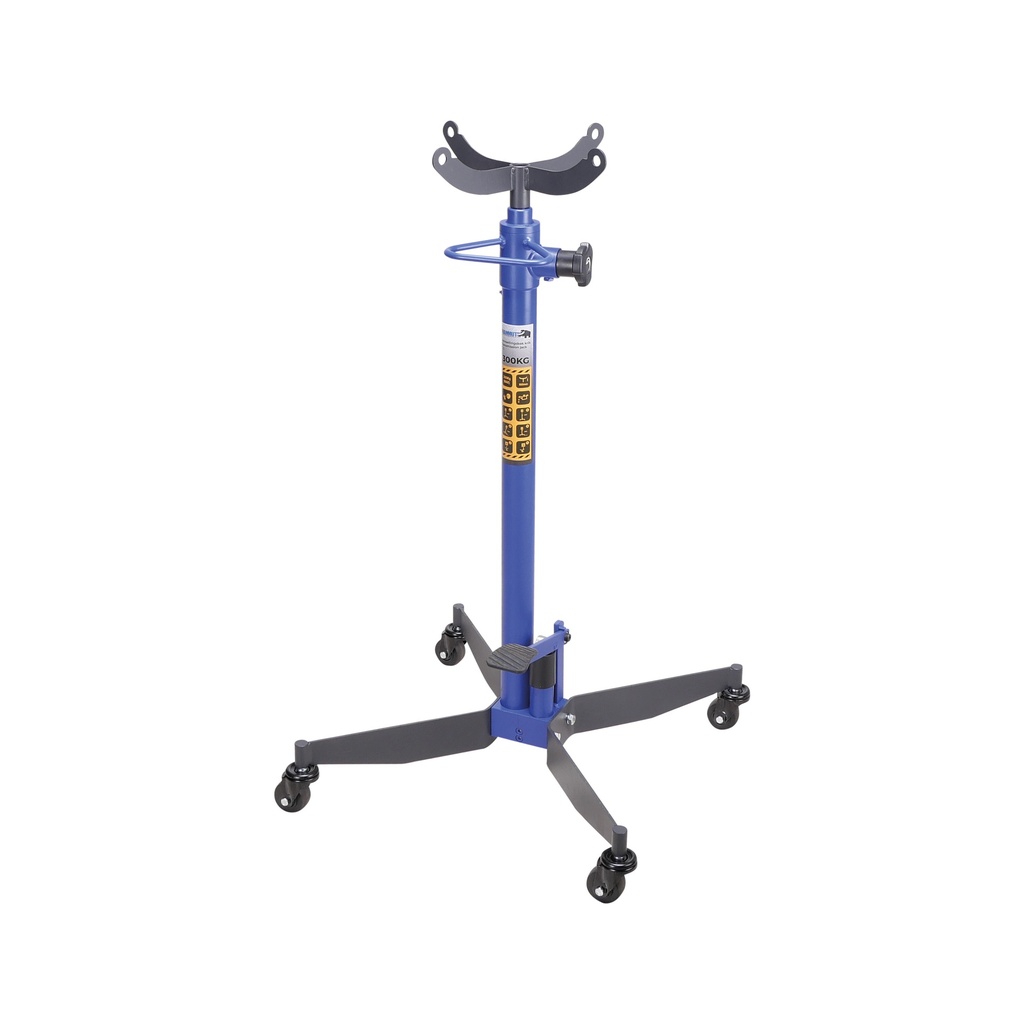

This Mammuth transmission jack is designed for the quick and safe installation and removal of gearboxes.
- Two-stage pump: Speed without load, precision under load.
- Controlled lowering speed: Ensures a safe and steady descent.
- Foot pedal: Keeps both hands free while lifting.
-
Fiberglass-reinforced nylon wheels: Wear-resistant, highly loadable, and resistant to oil, grease, acids, and other chemicals.
Specifications
| Material | Steel |
|---|---|
| Lifting capacity | 300 kg |
| Min. height | 1140 mm |
| Max. height | 2000 mm |
| Hook spacing | 300 mm |
| Hook height | 50 mm |
| Wheel material | Fibreglass-reinforced nylon |
| Wheel diameter | ø63 mm |
| Oil capacity | 0.7 L |
| Oil type | OKCH68 |
Product dimensions
| Length | 660 mm |
|---|---|
| Width | 660 mm |
| Height | 1195 mm |
| Weight | 28 kg |
Package dimensions
| Length | 240 mm |
|---|---|
| Width | 1070 mm |
| Height | 290 mm |
| Weight | 29.5 kg |
EAN 8720028106653
