Workshop presses

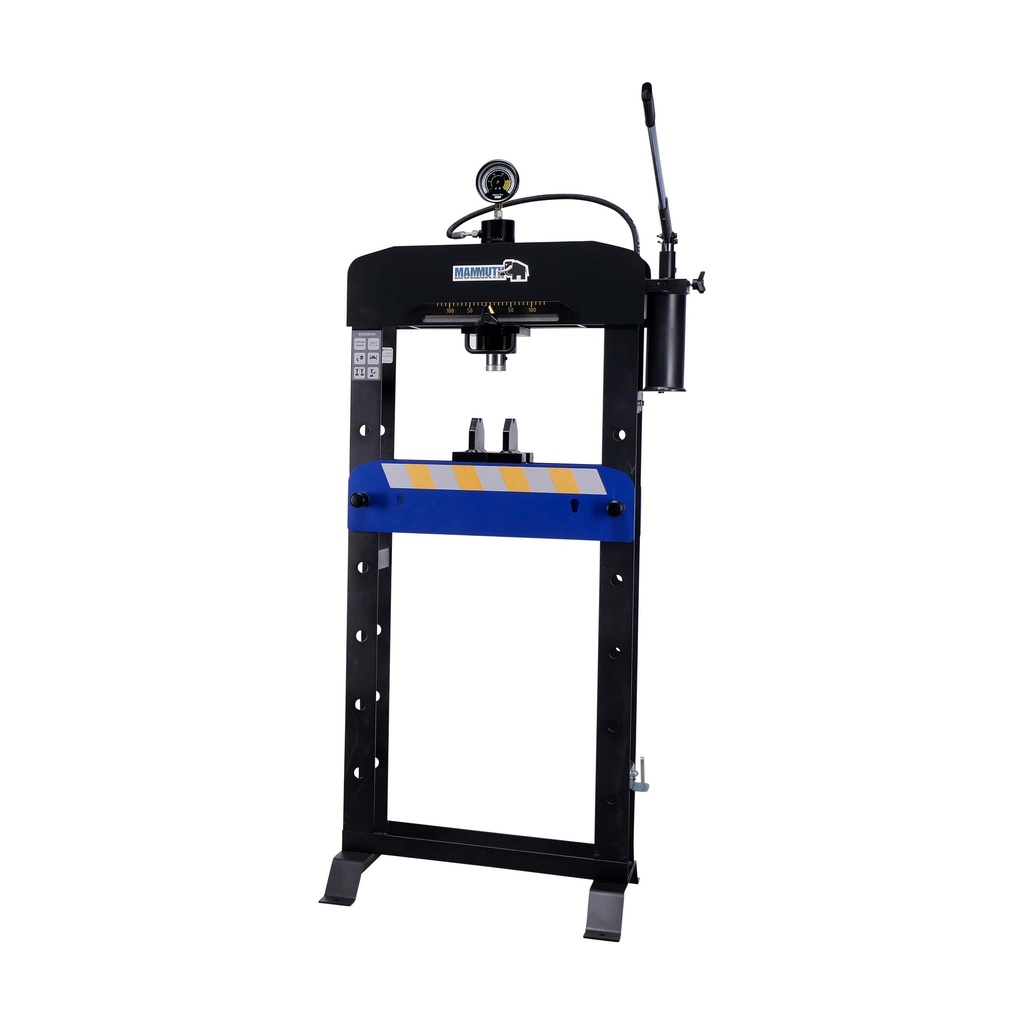

Workshop press hydraulic 20 tons

Article no. SP20XHM

Two-stage pump
Adjustable workbed
Side-adjustable cylinder with scale
Interchangeable press adapter
Includes press blocks

Capacity: 20 ton
Workbed width: 540 mm
Workbed depth: 134 mm
Minimum working height: 48 mm

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame and smooth operation, this press is a reliable choice for any workshop.

Two-stage pump: First fast, then precise pressing.
Adjustable workbed: Easily secured at 6 different heights.
Side-adjustable cylinder with scale: For precise positioning.
Interchangeable press adapter: Easily removable for using other attachments.
Includes press blocks: Comes with 2 press blocks.

Specifications

Capacity	20 ton
Workbed width	540 mm
Workbed depth	134 mm
Minimum working height	48 mm
Maximum working height	958 mm
Cylinder stroke	180 mm
Cylinder diameter	ø50 mm
Oil capacity	0.9 L
Oil type	OKCH68
