Hydraulic tools

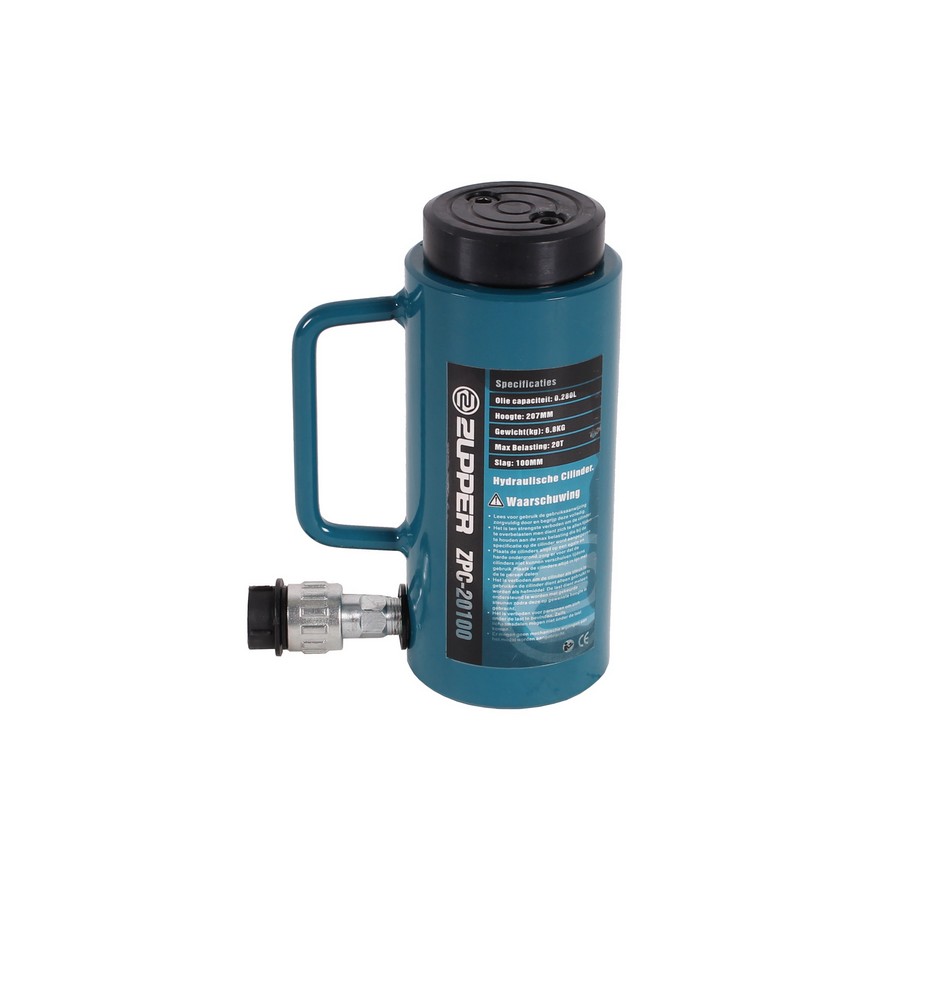

Cylinder 20 ton stroke 100mm
Article no. MPC20100
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
- output = 20 ton
- stroke = 100mm
- effective area = 33,2cm^2
- oil capacity = 0,332 L
- height of product = 207mm
- extended height = 307mm
- outside diameter = 88mm
- bore diameter = 65mm
- plunger diameter = 55mm
- thread for input oil port (ZG) = 3/8" - 23
- saddle protrusion form plgr = 21mm
- saddle is removable
- max. pressure = 700bar
Specifications
Product dimensions
| Length | 155 mm |
|---|---|
| Width | 85 mm |
| Height | 210 mm |
| Weight | 6.8 kg |
Package dimensions
| Length | 165 mm |
|---|---|
| Width | 95 mm |
| Height | 220 mm |
| Weight | 8 kg |
EAN 8720028049271
