Motorcycle lift table parallel 450kg pneumatic

Motorcycle lift table parallel 450kg pneumatic (2)

Motorcycle lift table parallel 450kg pneumatic (3)

Motorcycle lift table parallel 450kg pneumatic (4)

Motorcycle lift table parallel 450kg pneumatic (5)

Motorcycle lifts

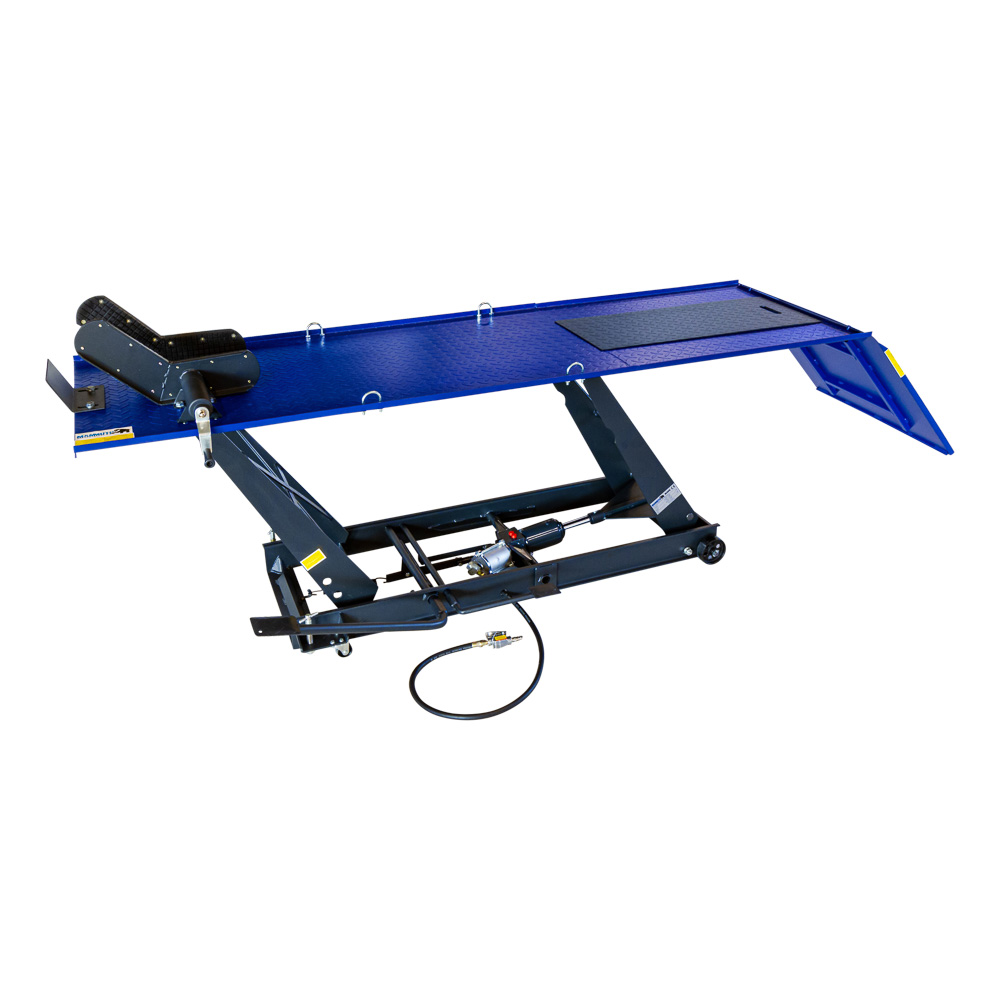

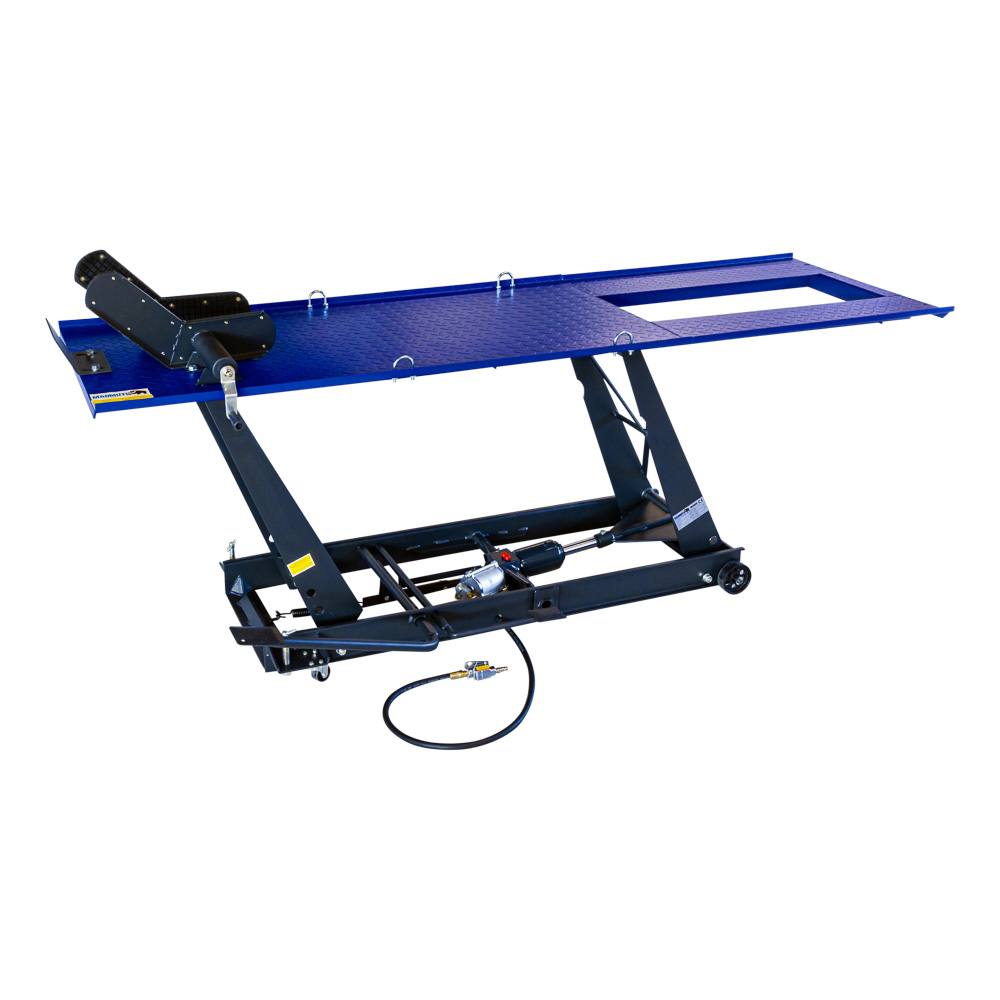

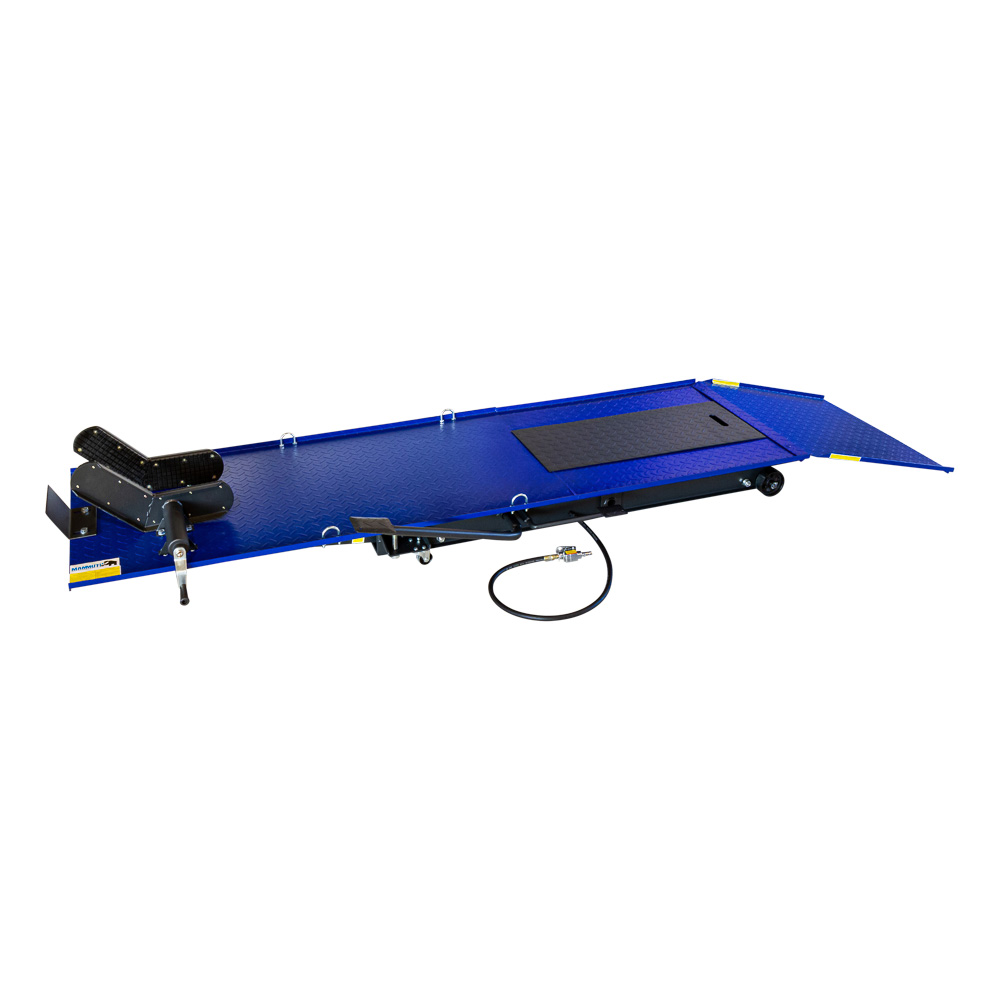

Motorcycle lift table parallel 450kg pneumatic

Article no. ML45PA

Pneumatic
Anti-slip surface
Removable plate
Tie-down points
Mobile

Material: Steel
Lifting capacity: 450 kg
Min. height: 170 mm
Max. height: 790 mm

Find a dealer Ask about this product

Available through our dealer network
Advice on the right capacity from your dealer

Description

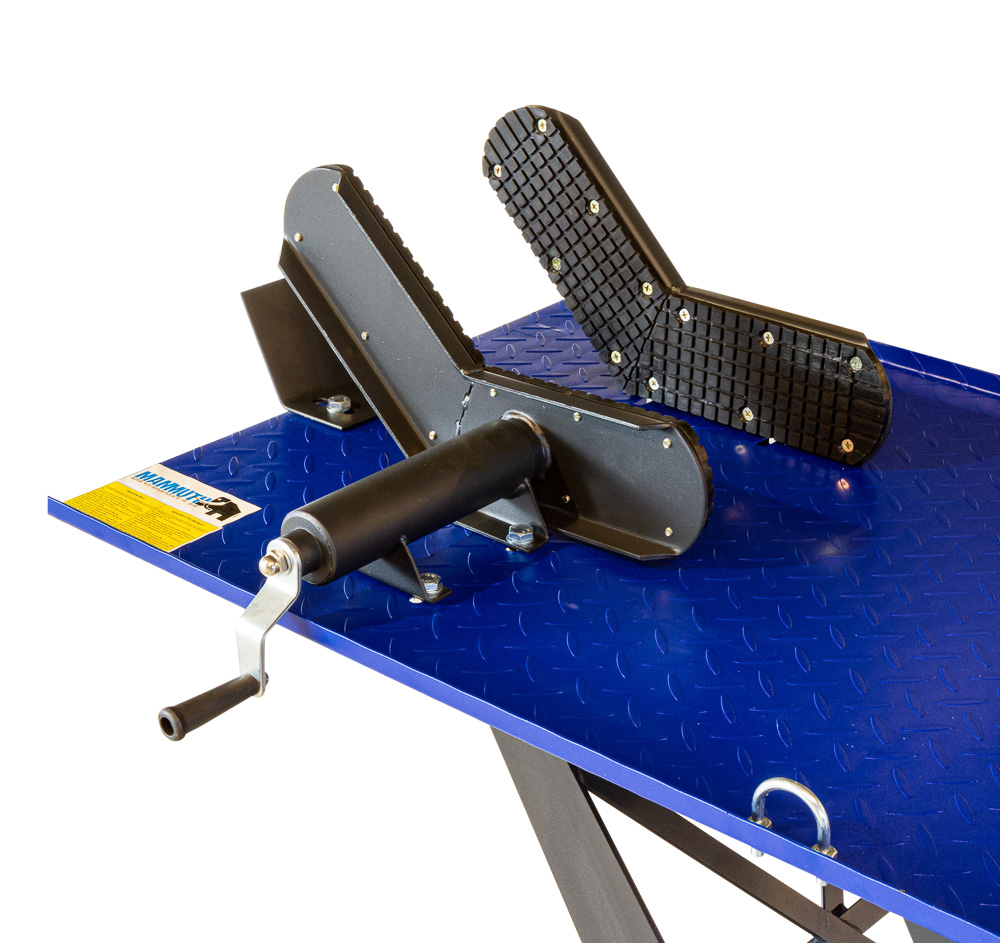

This Mammuth motorcycle lift table makes lifting motorcycles during maintenance or repairs easy and safe. The adjustable feet ensure a stable setup. For safety, the lift table is equipped with a locking pin to prevent unintentional lowering, and the front wheel clamp holds the motorcycle firmly in place.

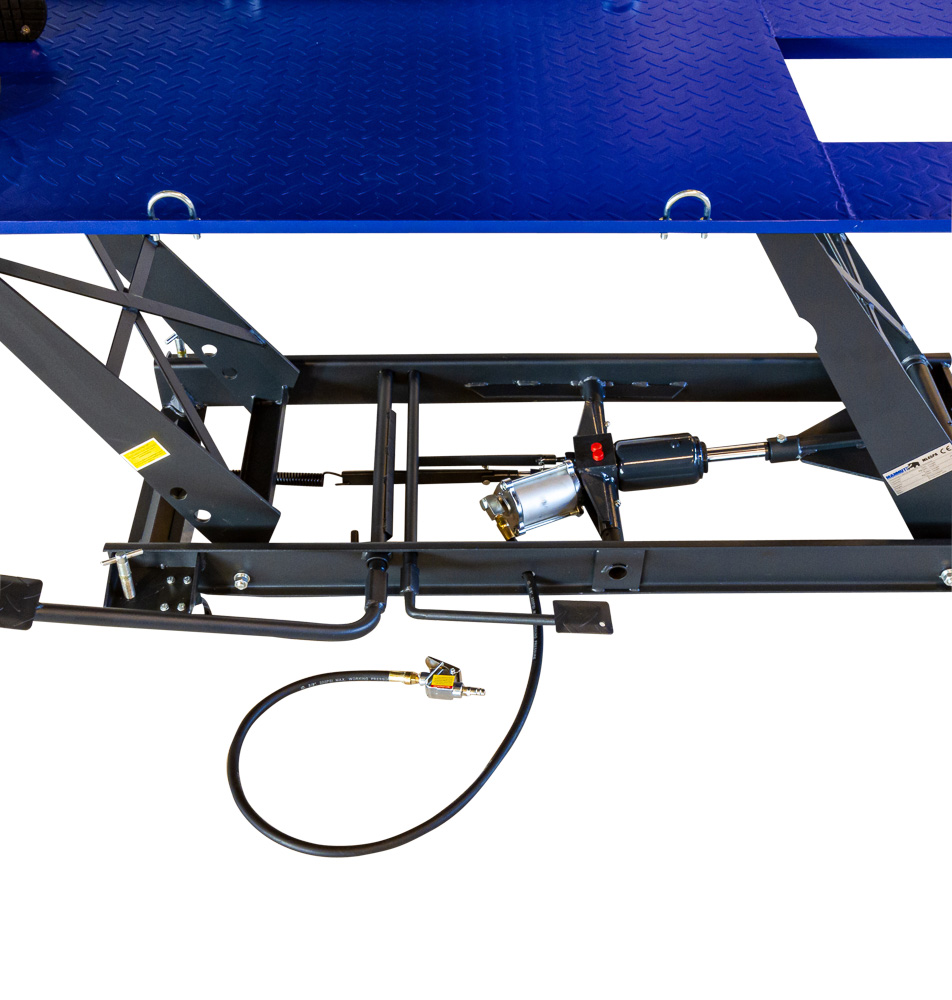

Pneumatic: Lifting without physical effort.
Anti-slip surface: Provides extra grip.

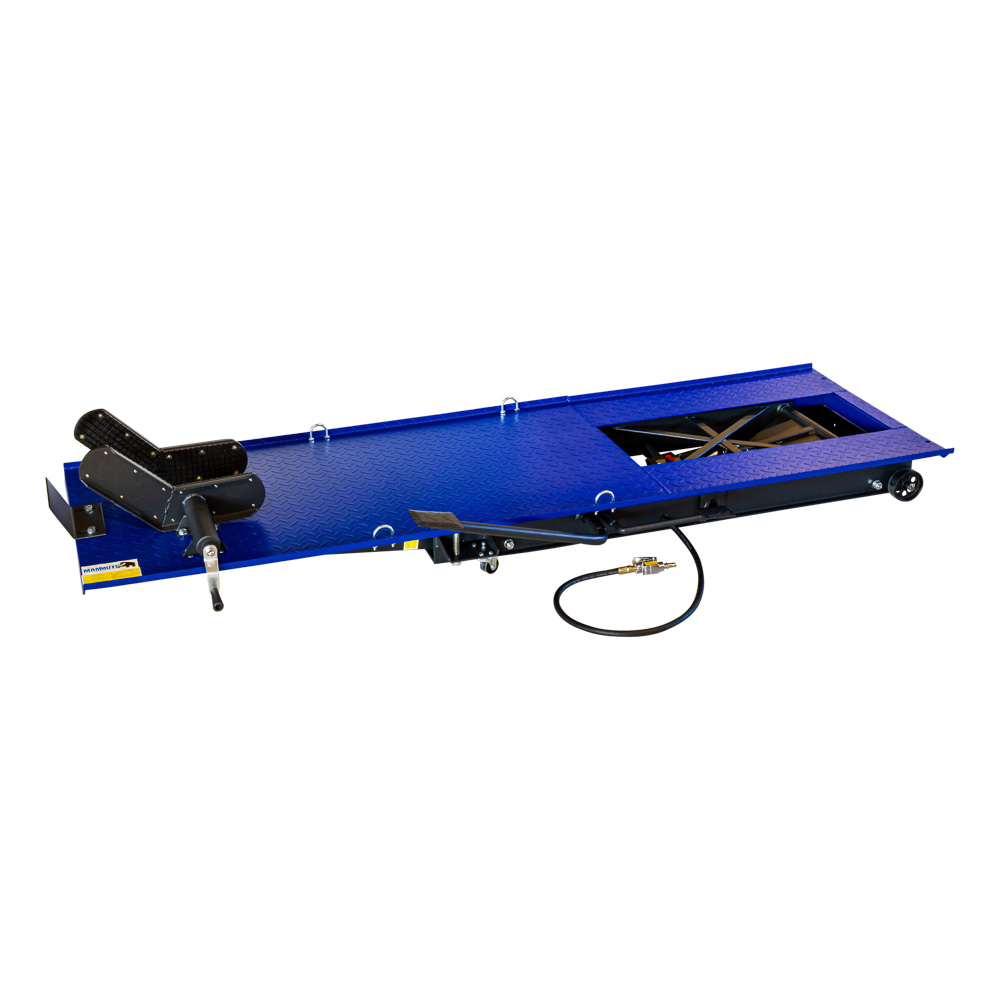

Removable plate: Allows easy access to the rear wheel.
Tie-down points: For securing the motorcycle with straps.
Mobile: Easy to move.

Specifications

Material	Steel
Lifting capacity	450 kg
Min. height	170 mm
Max. height	790 mm
Platform length	2200 mm
Platform width	680 mm
Ramp length	650 mm
Opening front wheel clamp max.	230 mm
Lifting time	50 sec
Air connection	1/4 NPT
Working air pressure	8 bar
Air consumption	120 L/min
Wheel material	Steel
Front wheel diameter	ø89 mm
Rear wheel diameter	ø43 mm
Oil capacity	0.38 L
Oil type	OHCH15V
