Motorcycle lifts

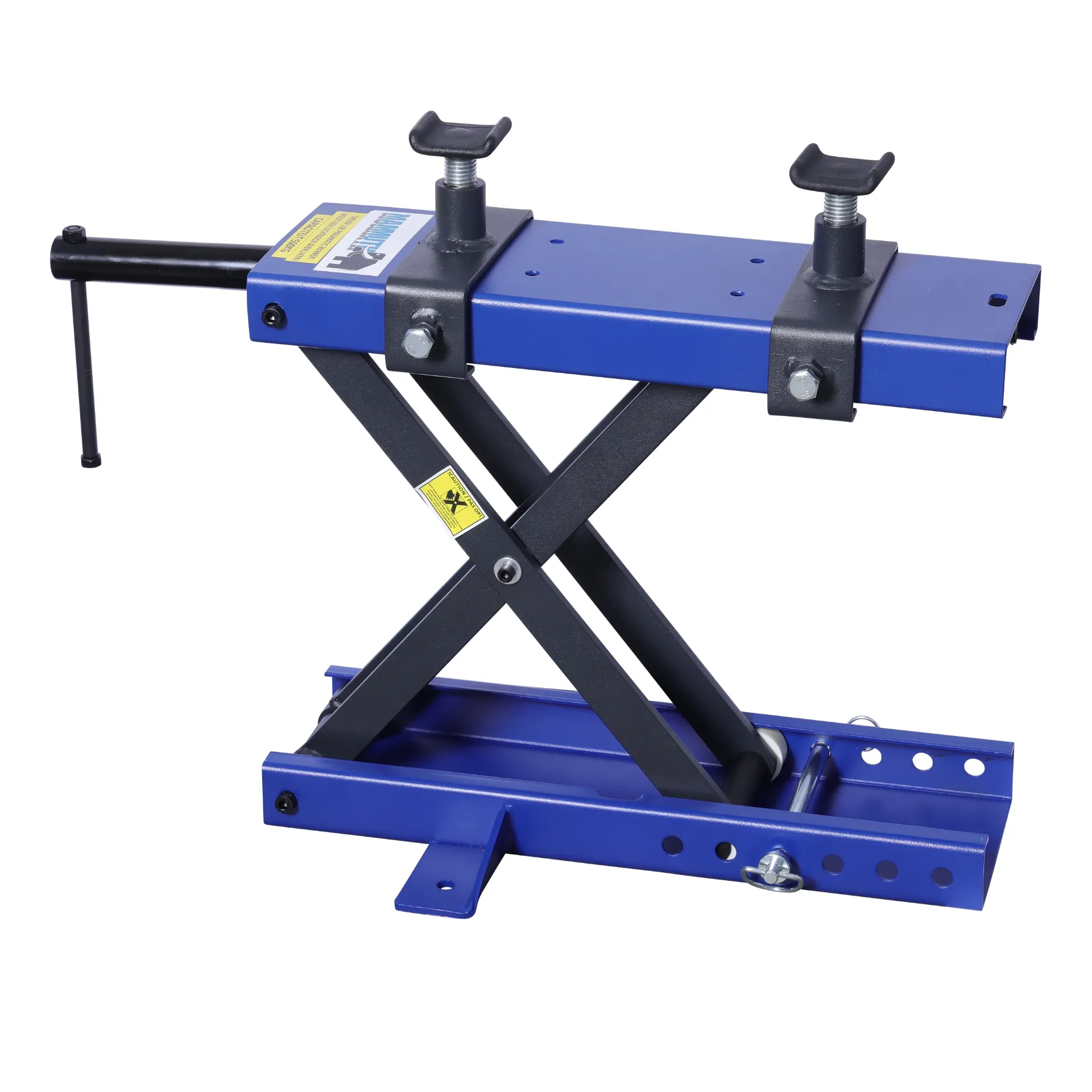

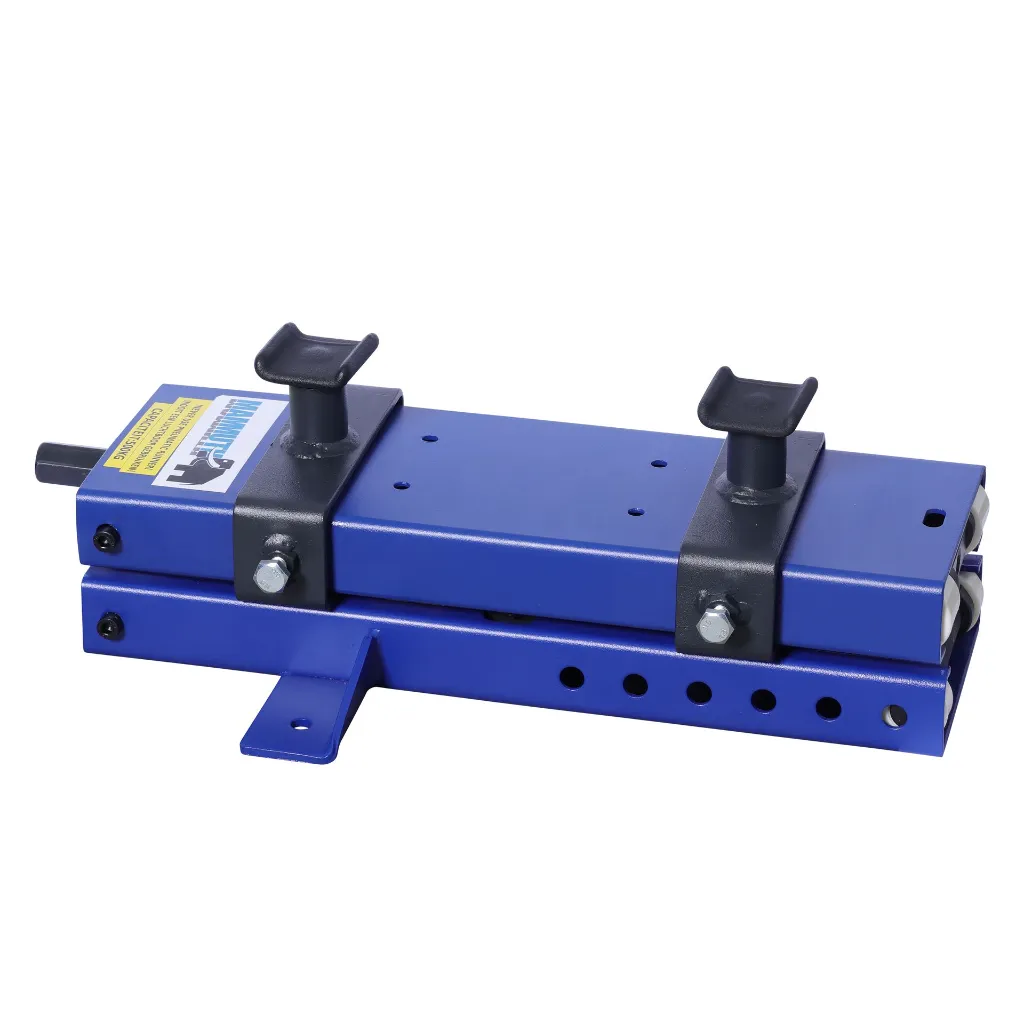

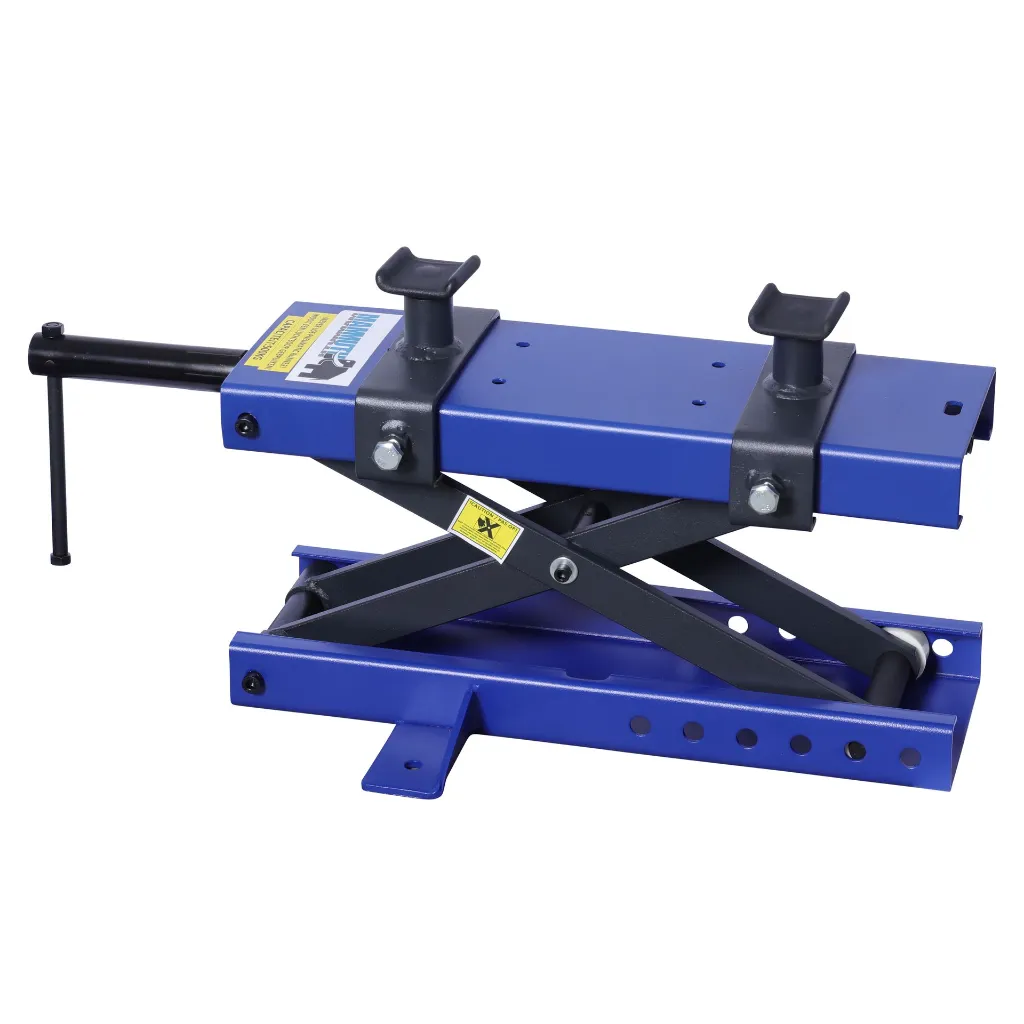

Mammuth mini motorcycle lift 500kg

Article no. ML34B

  • Lifting capacity of 500 kg

  • Lifting height from 160 to 475 mm

  • Two adjustable adapters

  • Removable handle

  • Safety pin

Lifting capacity
500 kg
Lifting height min.
160 mm
Lifting height max.
475 mm
Platform dimensions
450 x 150 mm
  • Available through our dealer network
  • Advice on the right capacity from your dealer

Description

The Mammuth motorcycle frame scissor lift is suitable for motorcycles up to 500kg and has a lifting height of 160 to 475 mm. This allows the motorcycle to be positioned at different working heights.

Two adapters can be moved independently and are height adjustable, allowing them to be aligned with the support points of the motorcycle. Rubber support pads protect the contact points and reduce the risk of damage.

Lifting and lowering are performed manually using the removable handle. During work, the motorcycle scissor lift can be secured with the safety pin.

Key features:

  • Lifting capacity of 500 kg

Suitable for lifting different motorcycles.

  • Lifting height from 160 to 475 mm

Allows working at different heights.

  • Two adjustable adapters

Can be moved independently and are height adjustable, with rubber support pads.


  • Removable handle

For manual operation and easy removal.


  • Safety pin
For securing the motorcycle scissor lift during work.

Specifications

Lifting capacity500 kg
Lifting height min.160 mm
Lifting height max.475 mm
Platform dimensions450 x 150 mm

Product dimensions

Length600 mm
Width310 mm
Height470 mm
Weight14 kg

Package dimensions

Length540 mm
Width340 mm
Height110 mm
Weight15 kg

EAN 8720028062843
