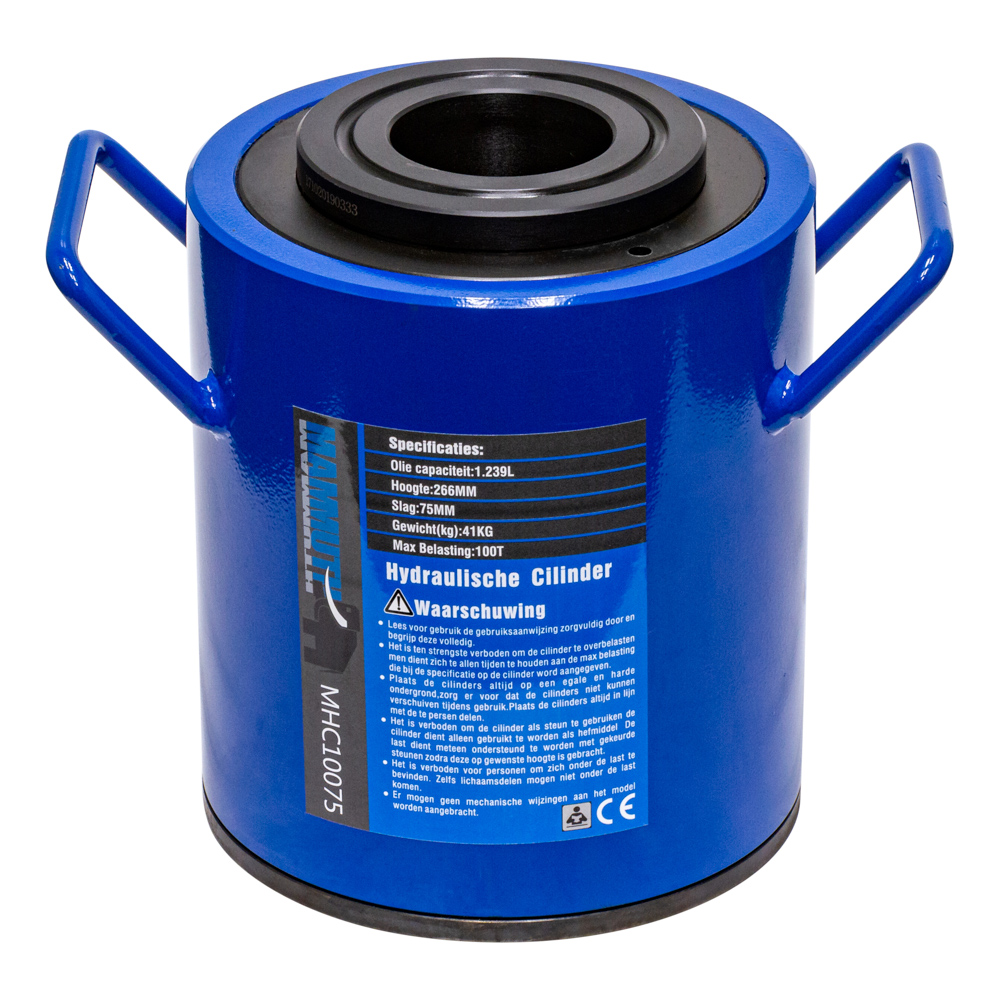

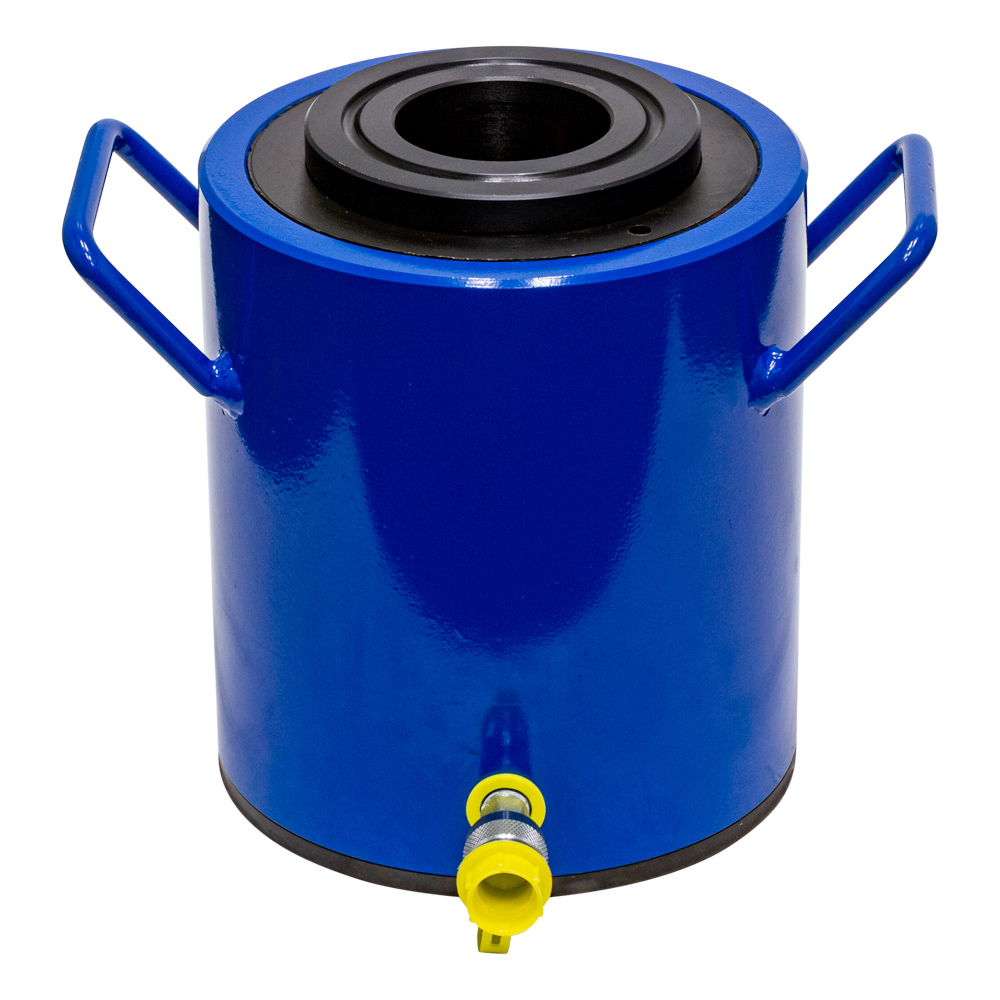

Hollow cylinder 100 ton stroke 75mm
Article no. MHC10075
- Incl. side handles
- 700 bar max working pressure
- Adjustable top saddle
- Hard coat finish
- High-strength
- Capacity
- 100 Ton
- Stroke
- 75 mm
- Pressure max.
- 700 Bar
- Oil capacity
- 1.259 L
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
Specifications
| Capacity | 100 Ton |
|---|---|
| Stroke | 75 mm |
| Pressure max. | 700 Bar |
| Oil capacity | 1.259 L |
| Outside diameter | 224 mm |
| Effective pressure area | 167.8 cm² |
| Bore diameter | 180 mm |
| Principal axis diameter | 145 mm |
| Plunger diameter | 79 mm |
| Oil supply hole thread (Rc) | 3/8" |
| Top cap height | 15 mm |
Product dimensions
| Length | 295 mm |
|---|---|
| Width | 225 mm |
| Height | 280 mm |
| Weight | 58 kg |
Package dimensions
| Length | 385 mm |
|---|---|
| Width | 335 mm |
| Height | 365 mm |
| Weight | 60 kg |
EAN 8720028053414
