Hydraulic tools

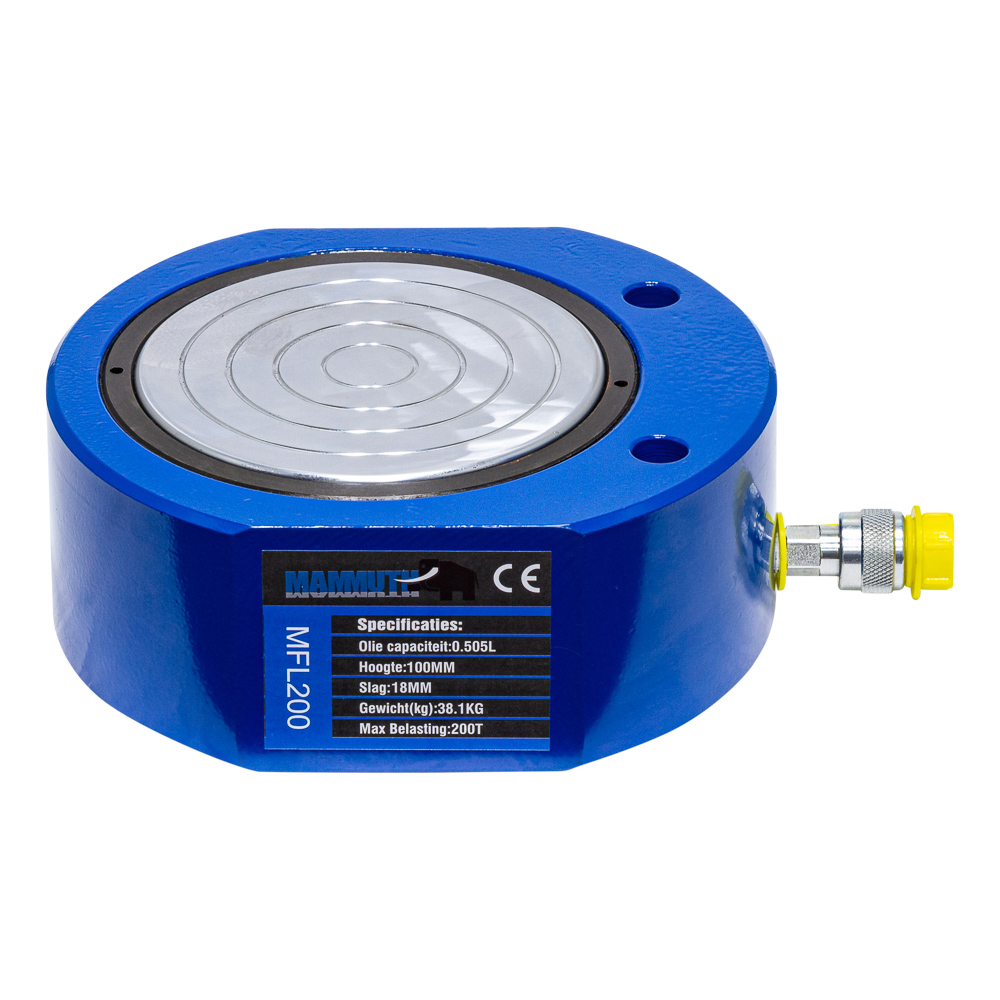

Flat cylinder 200 ton stroke 18mm
Article no. MFL200
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 200 ton
stroke = 18mm
effective area = 224,2cm^2
oil capacity = 0,505 L
height of product = 100mm
extended height = 118mm
outside diameter = 274x239mm
bore diameter = 189mm
plunger diameter = 169mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Specifications
Product dimensions
| Length | 310 mm |
|---|---|
| Width | 232 mm |
| Height | 100 mm |
| Weight | 36 kg |
Package dimensions
| Length | 385 mm |
|---|---|
| Width | 335 mm |
| Height | 210 mm |
| Weight | 38 kg |
EAN 8720028046720
