Cylinder 200 ton stroke 50mm
Article no. MC20050
- Available through our dealer network
- Advice on the right capacity from your dealer
Description

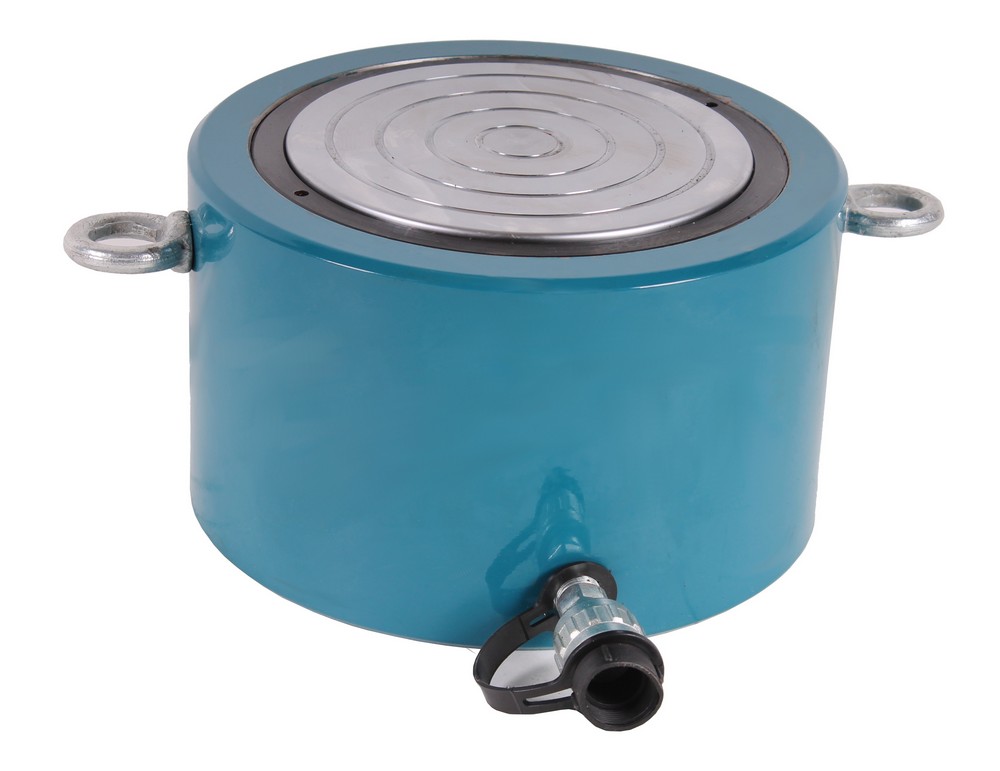

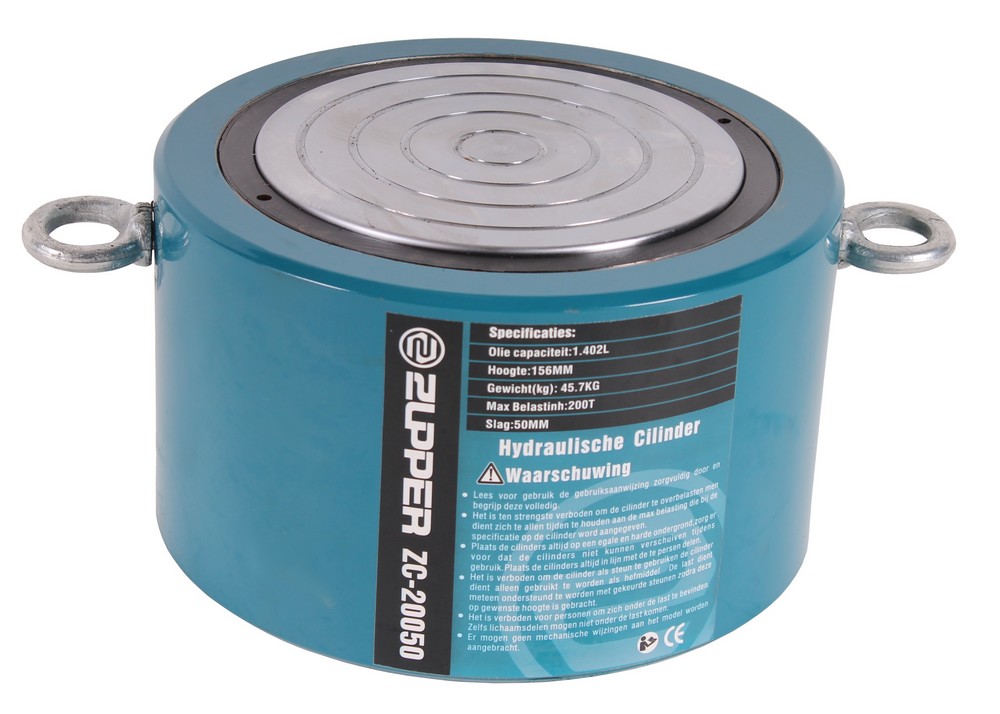

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
- output = 200 ton
- stroke = 50mm
- effective area = 224,2cm^2
- oil capacity = 1,402 L
- height of product = 156mm
- extended height = 206mm
- outside diameter = 237mm
- bore diameter = 189mm
- plunger diameter = 169mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
Specifications
Product dimensions
| Length | 305 mm |
|---|---|
| Width | 235 mm |
| Height | 155 mm |
| Weight | 45.7 kg |
Package dimensions
| Length | 315 mm |
|---|---|
| Width | 245 mm |
| Height | 165 mm |
| Weight | 47 kg |
EAN 8720028046782
