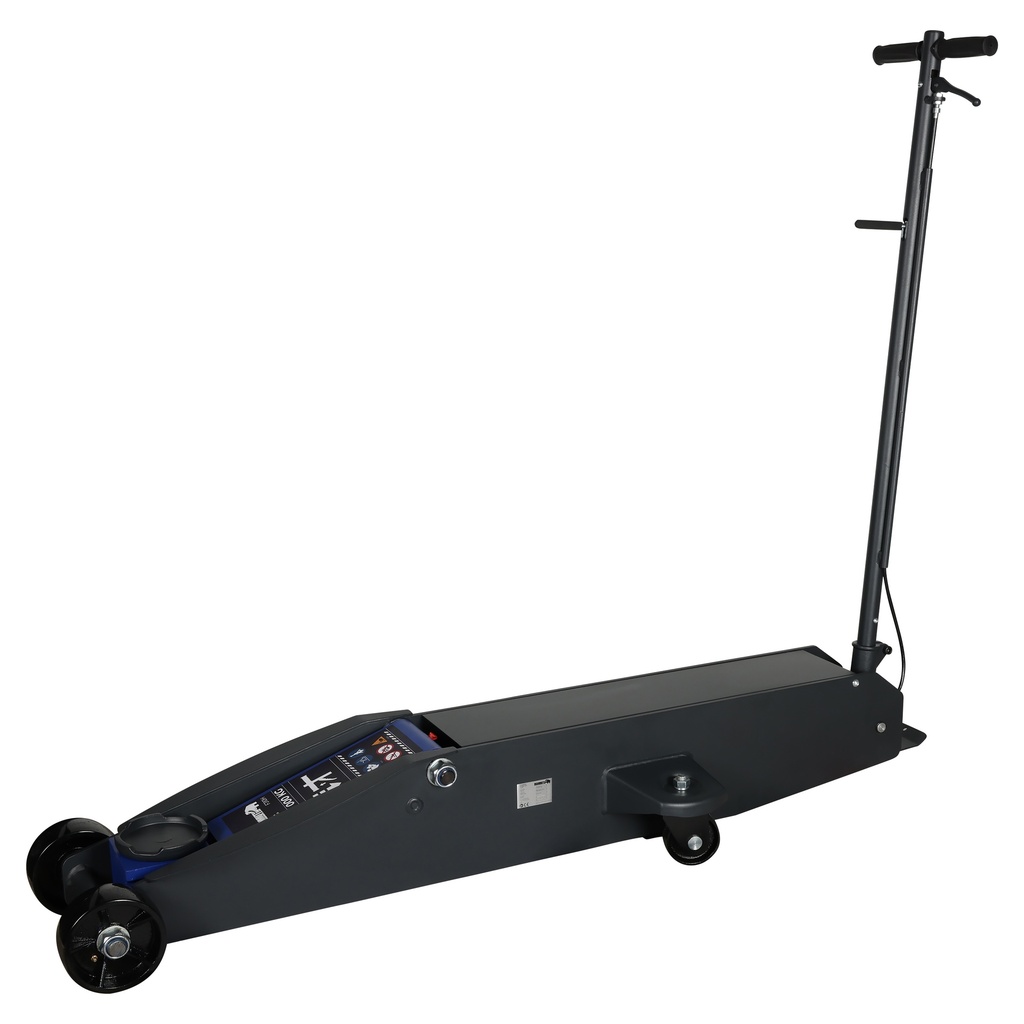

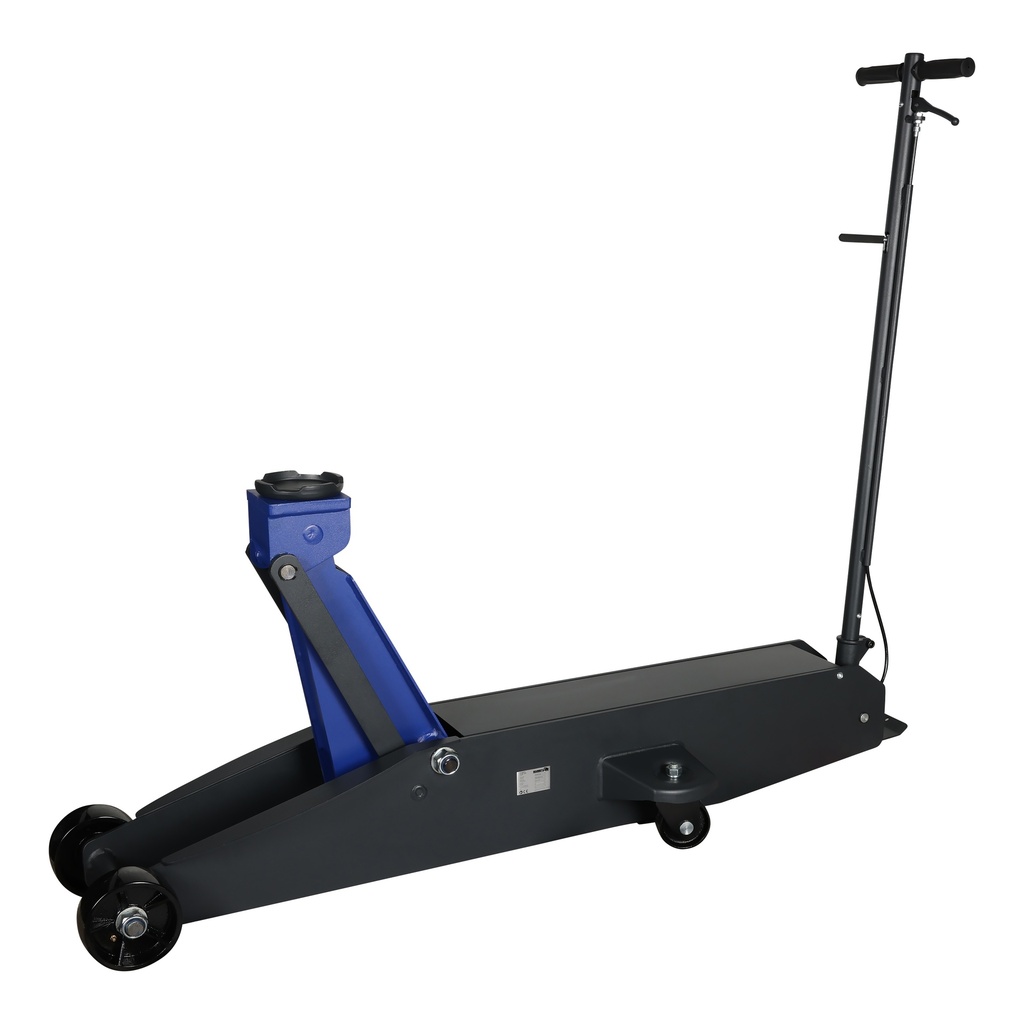

Workshop jack 10 ton

Article no. FJ10H

  • Foot pedal for quick-lift system
  • Controlled lowering speed
  • Adjustable operating arm
  • High load capacity (10 tons)
Lifting capacity
10000 kg
Lifting height min.
160 mm
Lifting height max.
650 mm
Platform dimensions
ø150 mm
  • Available through our dealer network
  • Advice on the right capacity from your dealer

Description

The Mammuth 10-ton industrial workshop jack is ideal for heavy lifting tasks on larger vehicles such as agricultural machinery, trucks, and commercial vehicles. Its robust construction and FTL system ensure fast, powerful, and safe lifting during professional use in workshops or on-site.

Equipped with the Fast to Load (FTL) system, the jack’s saddle reaches maximum height in just three full strokes without load. This saves valuable time when positioning and improves work efficiency, especially in busy service environments.

Controlled lowering ensures that vehicles are safely and evenly lowered, even under load. The adjustable handle provides comfortable and ergonomic operation regardless of the vehicle type.

Key features:

  • FTL system (Fast to Load)

Maximum lifting height in only 3 full strokes without load.


  • Controlled lowering speed

Ensures safe and smooth descent of the vehicle.


  • Adjustable handle

For flexible and ergonomic operation.


  • 10-ton lifting capacity

Suitable for lifting heavy vehicles like trucks and agricultural machinery.

Specifications

Lifting capacity10000 kg
Lifting height min.160 mm
Lifting height max.650 mm
Platform dimensionsø150 mm
Pump rod length1153 mm
Front wheel diameter ø141 mm
Rear wheel diameterø91 mm
Oil capacity1.050 L
Oil typeOKCH68
Handle length1083 mm
Stroke490 mm

Product dimensions

Length1637 mm
Width494 mm
Height249 mm
Weight133 kg

Package dimensions

Length1670 mm
Width520 mm
Height330 mm
Weight149 kg

EAN 8720028063888
