Shop cranes

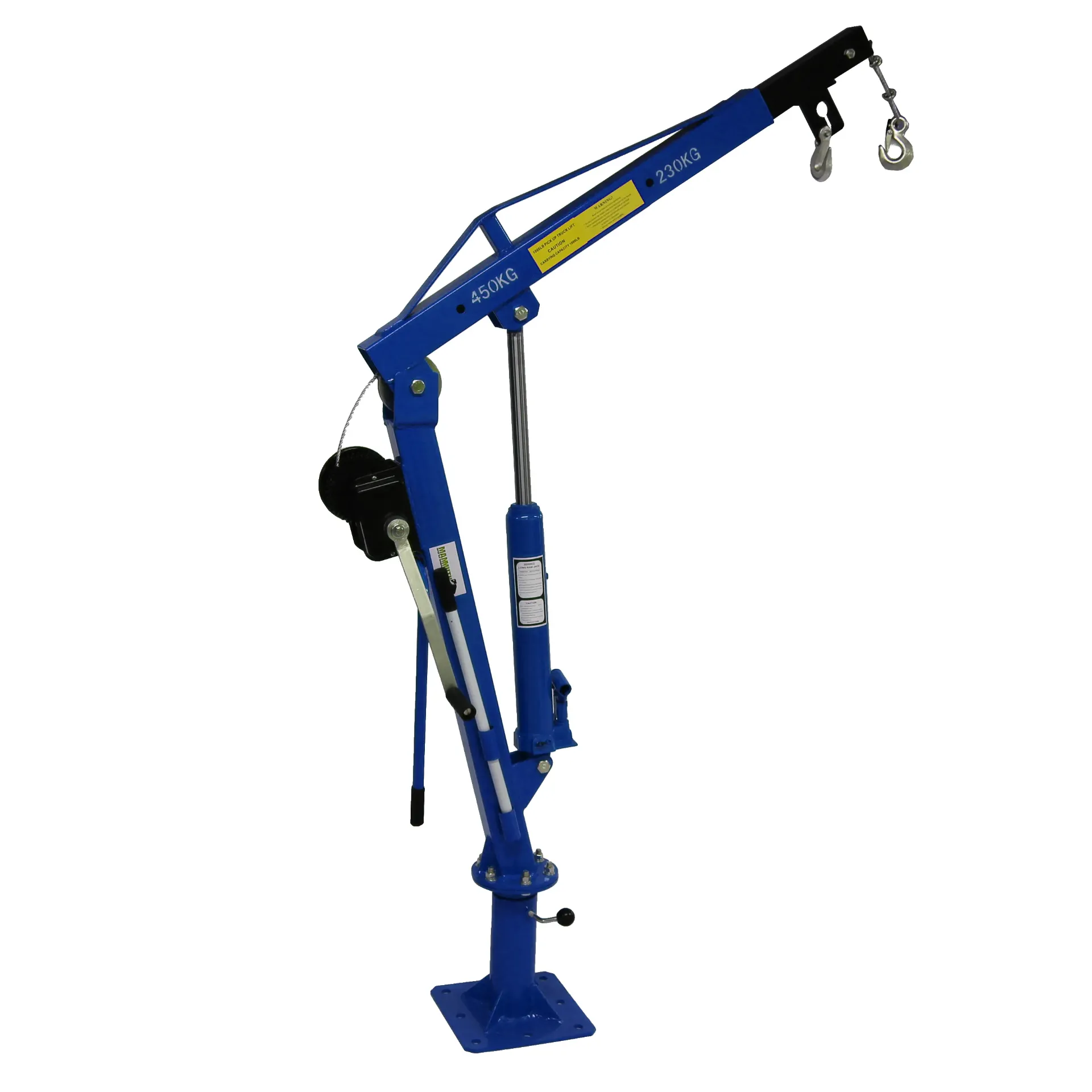

Pickup crane 450kg with hand winch
Article no. TC45HW
- Foldable
- 360-degree rotation
- Easy installation
- Hand winch
-
2 positions
- Material
- Steel
- Lifting capacity
- 450 kg
- Oil capacity
- 0.51 L
- Oil type
- OKCH68
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
This Mammuth trailer crane with hand winch is a reliable choice for lifting and moving loads up to 450kg. Ideal for mounting on trailers and pick-ups, this crane offers the reliability and power needed for loading and unloading.
- Foldable: Takes up minimal space.
- 360-degree rotation: For maximum flexibility.
- Easy installation: Pre-drilled mounting plate for quick assembly.
- Hand winch: Lifts loads precisely with extra control.
- 2 positions: Choose the right position for every task
Position 1 (230Kg)
Minimum height: 0mm
Maximum height: 2150mm
Arm length: 1290mm
Position 2 (450Kg)
Minimum height: 0mm
Maximum height: 1595mm
Arm length: 870mm
The mounting plate has dimensions of 270x270mm, with a hole-to-hole distance of 205x205mm.
Specifications
| Material | Steel |
|---|---|
| Lifting capacity | 450 kg |
| Oil capacity | 0.51 L |
| Oil type | OKCH68 |
Product dimensions
| Length | 720 mm |
|---|---|
| Width | 270 mm |
| Height | 1450 mm |
| Weight | 52 kg |
Package dimensions
| Length | 1130 mm |
|---|---|
| Width | 280 mm |
| Height | 180 mm |
| Weight | 53 kg |
EAN 8720028057382
