Pallet trucks and stackers

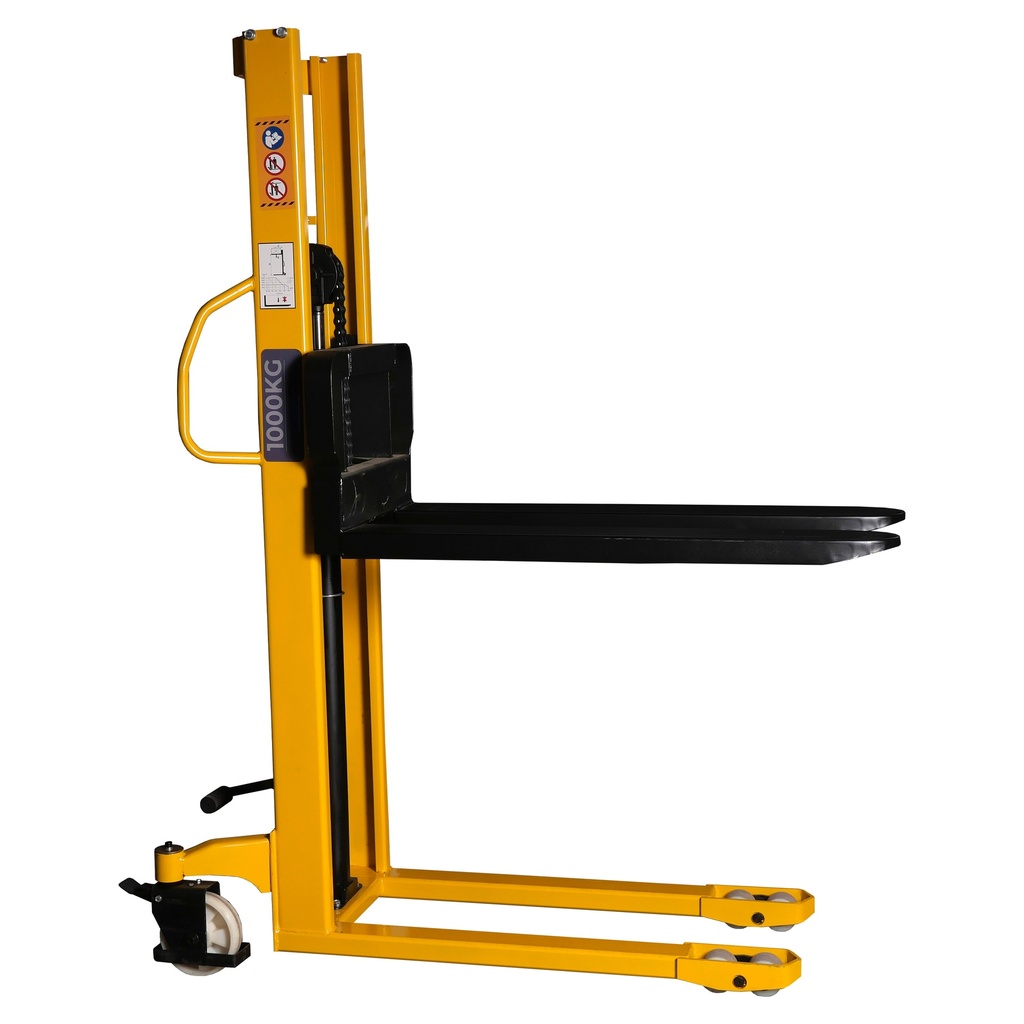

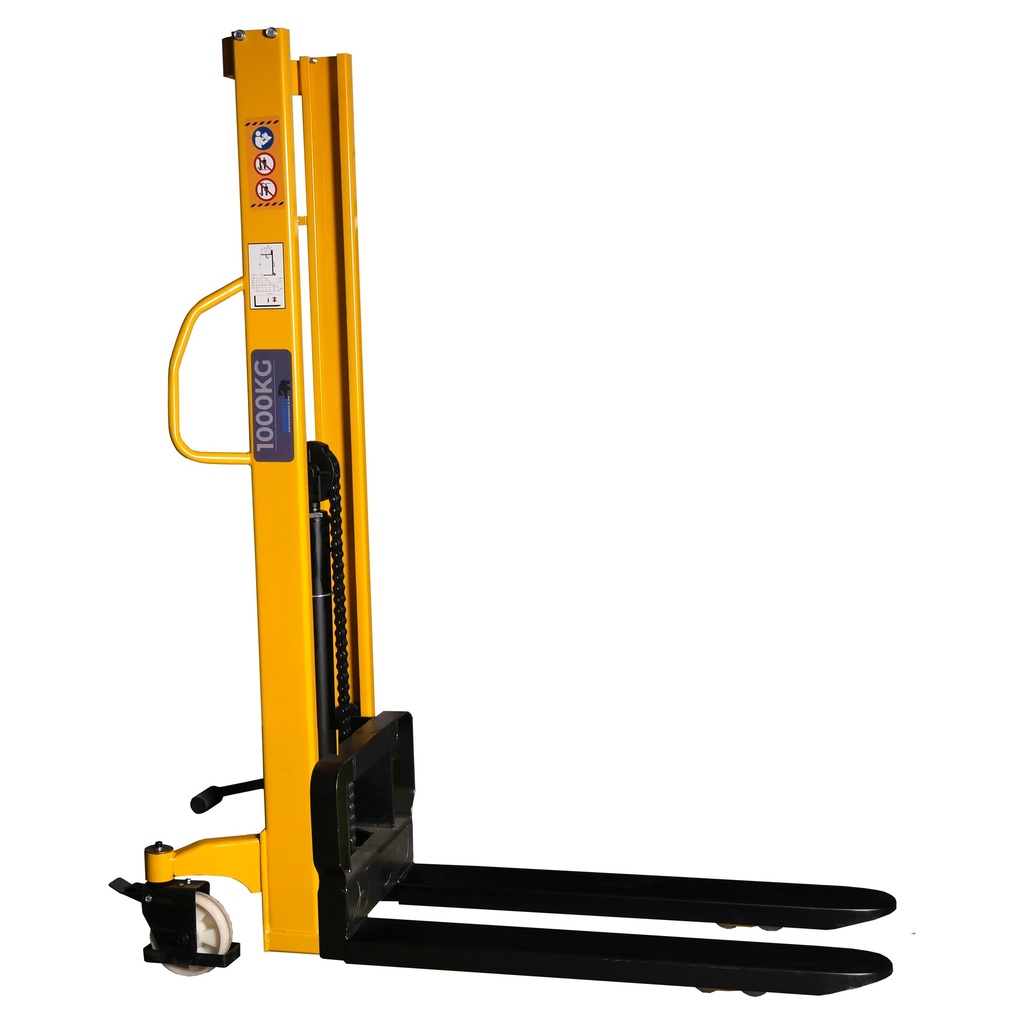

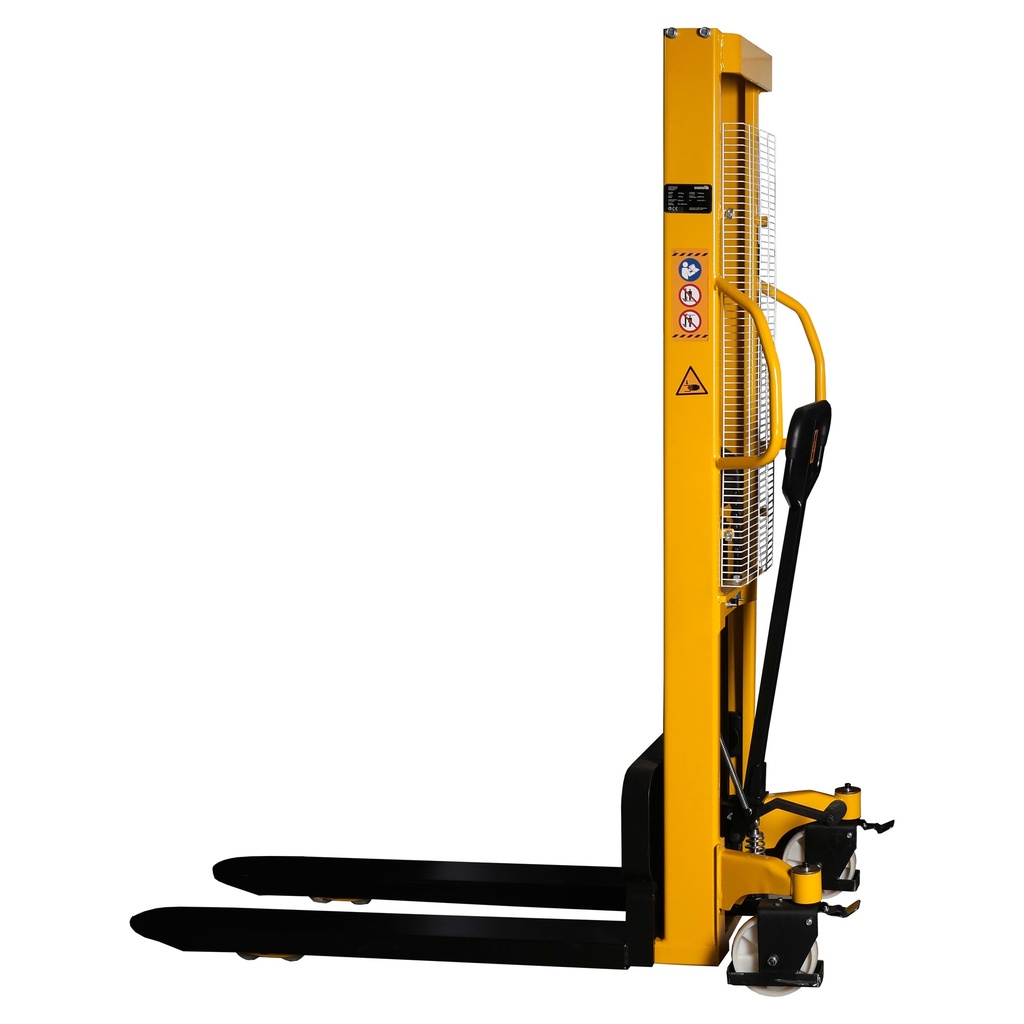

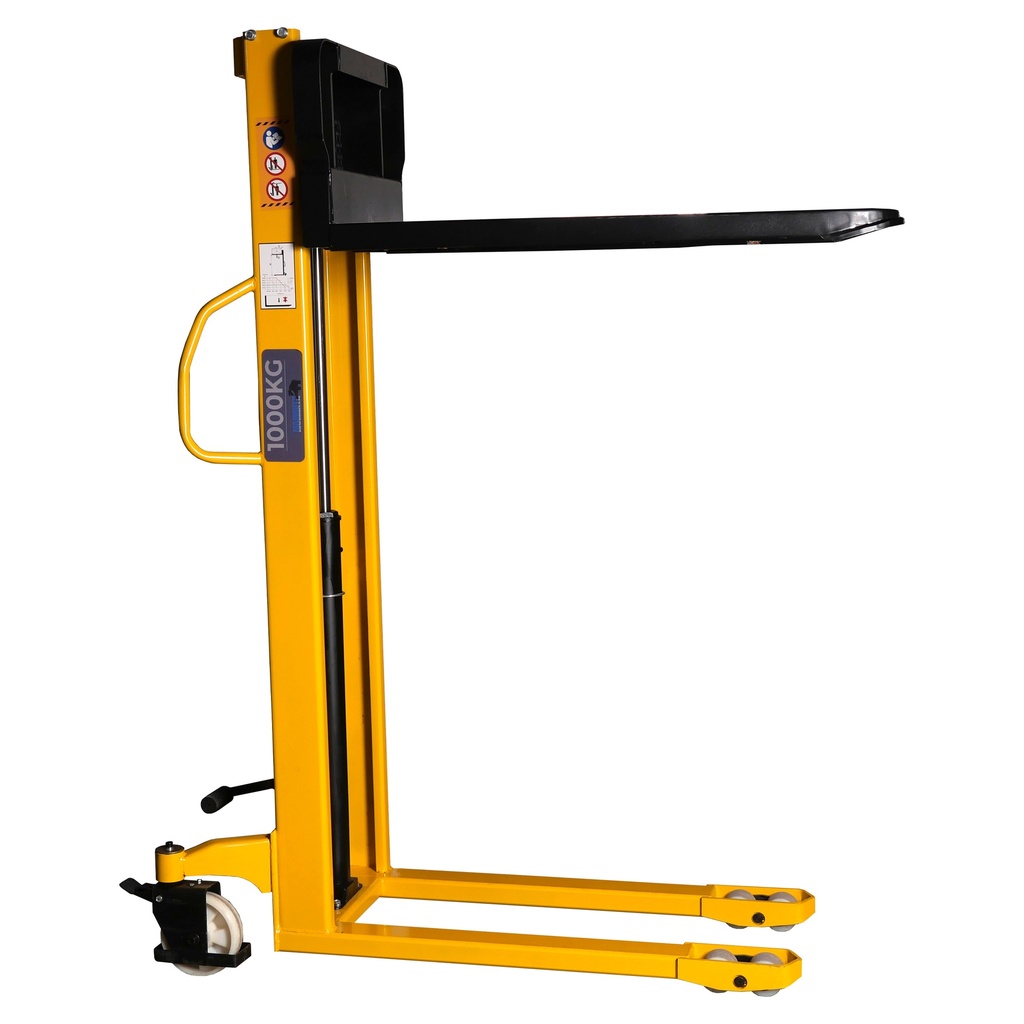

Stacker manual 1000kg 160 cm
Article no. PS10M16
- 160cm lifting height
- Wheels incl. parking brake
- Handle & Foot pedal lifting
- C profile mast
- Double front wheels
- Lifting capacity
- 1000 kg
- Fork size (length x width x height)
- 1150 x 160 x 55 mm
- Wheel material
- Nylon
- Lifting speed loaded
- 16 mm/sec
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
straddle leg manual stacker / hydraulic stacker / manual stacker with straddle legs
The manual stacker from Mammuth is an efficient solution for manual transport, stacking, and pallet positioning. With a lifting capacity of 1000 kg and a maximum lifting height of 160 cm, it is ideal for small warehouses, retail floors.
Designed with a minimized turning radius and compact size, this stacker is perfect for narrow passages and tight spaces, allowing for easy navigation even in confined areas.
Equipped with wheels that include a parking brake, the stacker ensures stability during loading and unloading. The C profile mast adds strength and durability for reliable performance under heavy loads.

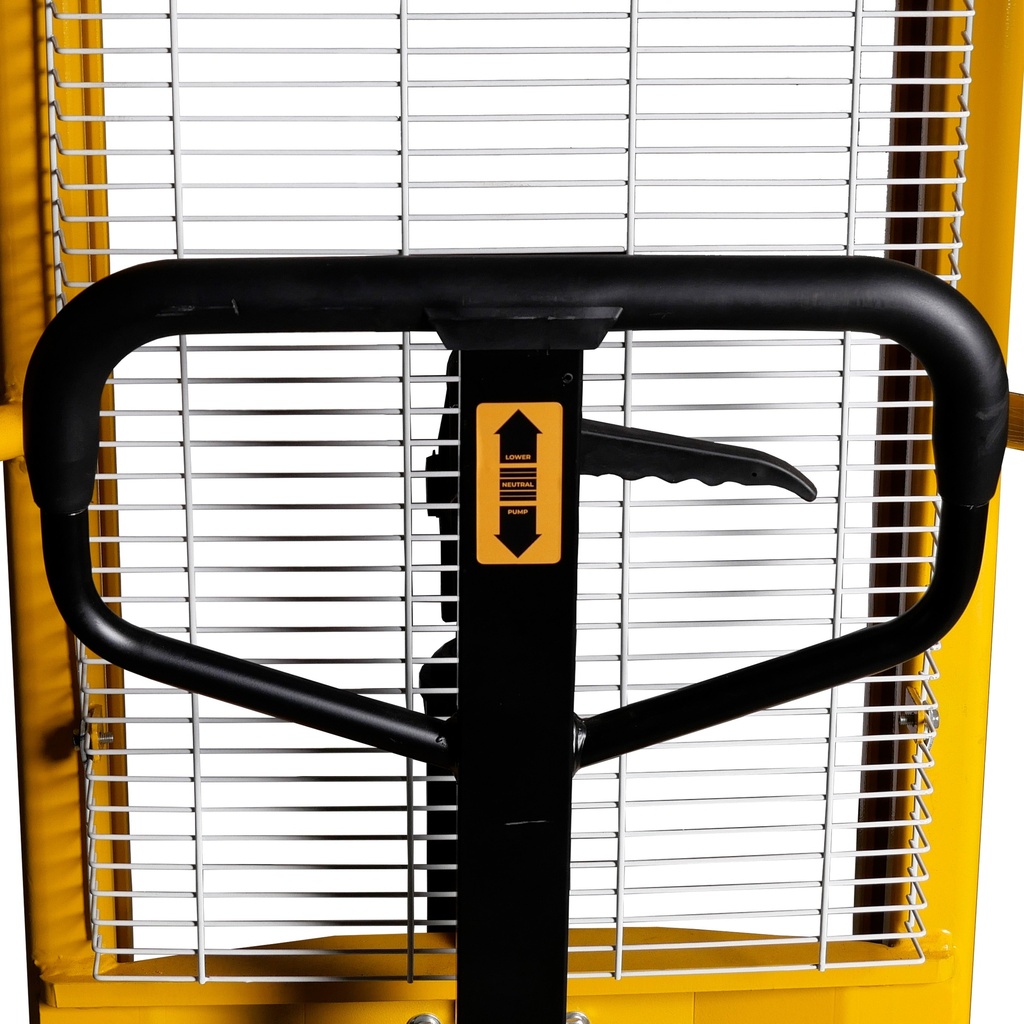

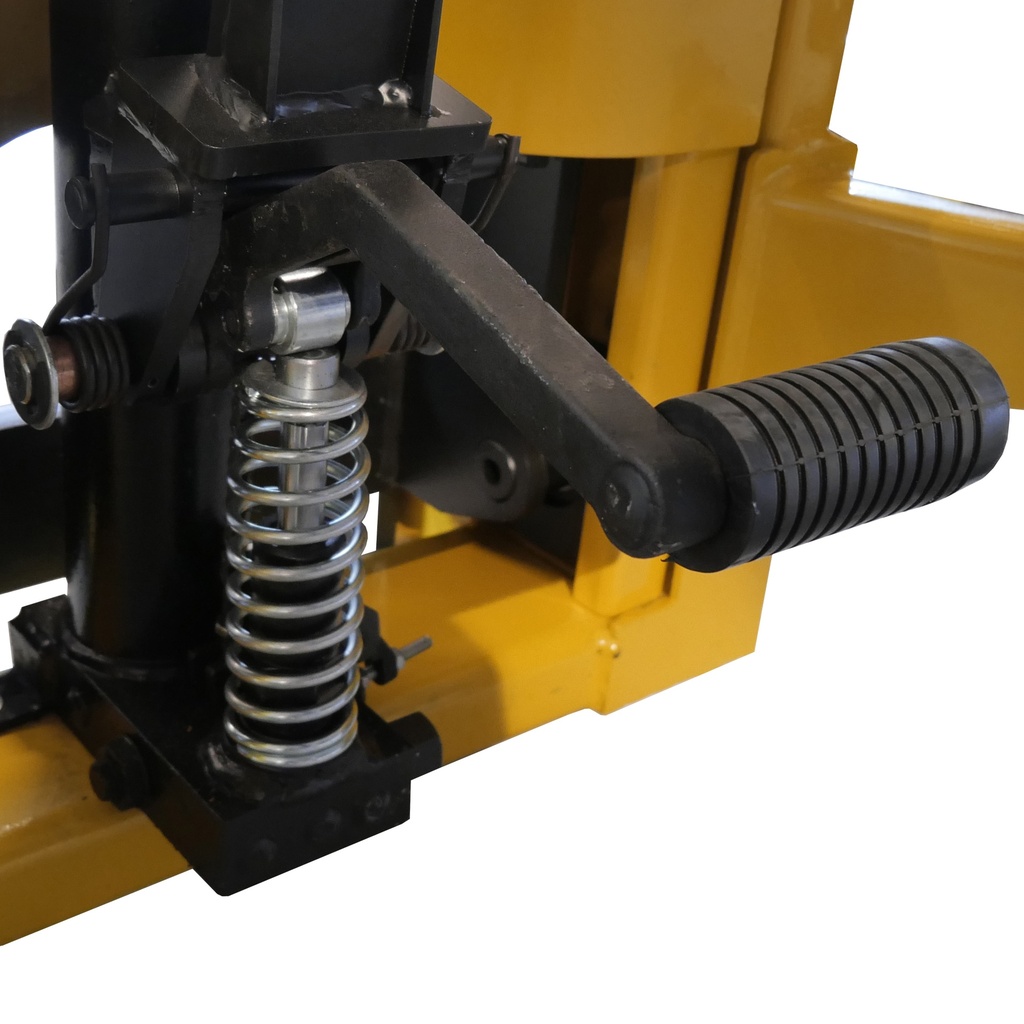

The handle and foot pedal lifting mechanism allows for smooth operation.
Made of high-strength steel, the stacker is durable and long-lasting. The pressure-resistant caster bracket protects the operator from injury, enhancing safety.
Specifications
| Lifting capacity | 1000 kg |
|---|---|
| Fork size (length x width x height) | 1150 x 160 x 55 mm |
| Wheel material | Nylon |
| Lifting speed loaded | 16 mm/sec |
| Turning radius | 1600 mm |
| Fork overall width | 565 mm |
| Lifting height range | 85 -1610 mm |
| Total length | 1750 mm |
| Total width | 750 mm |
| Lowering speed loaded | Controllable |
| Mast lowered height | 2005 mm |
| Mast extend height | 2005 mm |
Product dimensions
| Length | 1600 mm |
|---|---|
| Width | 730 mm |
| Height | 2020 mm |
| Weight | 155 kg |
Package dimensions
| Length | 1600 mm |
|---|---|
| Width | 735 mm |
| Height | 2020 mm |
| Weight | 155 kg |
EAN 8720028122912
