Hydraulic tools

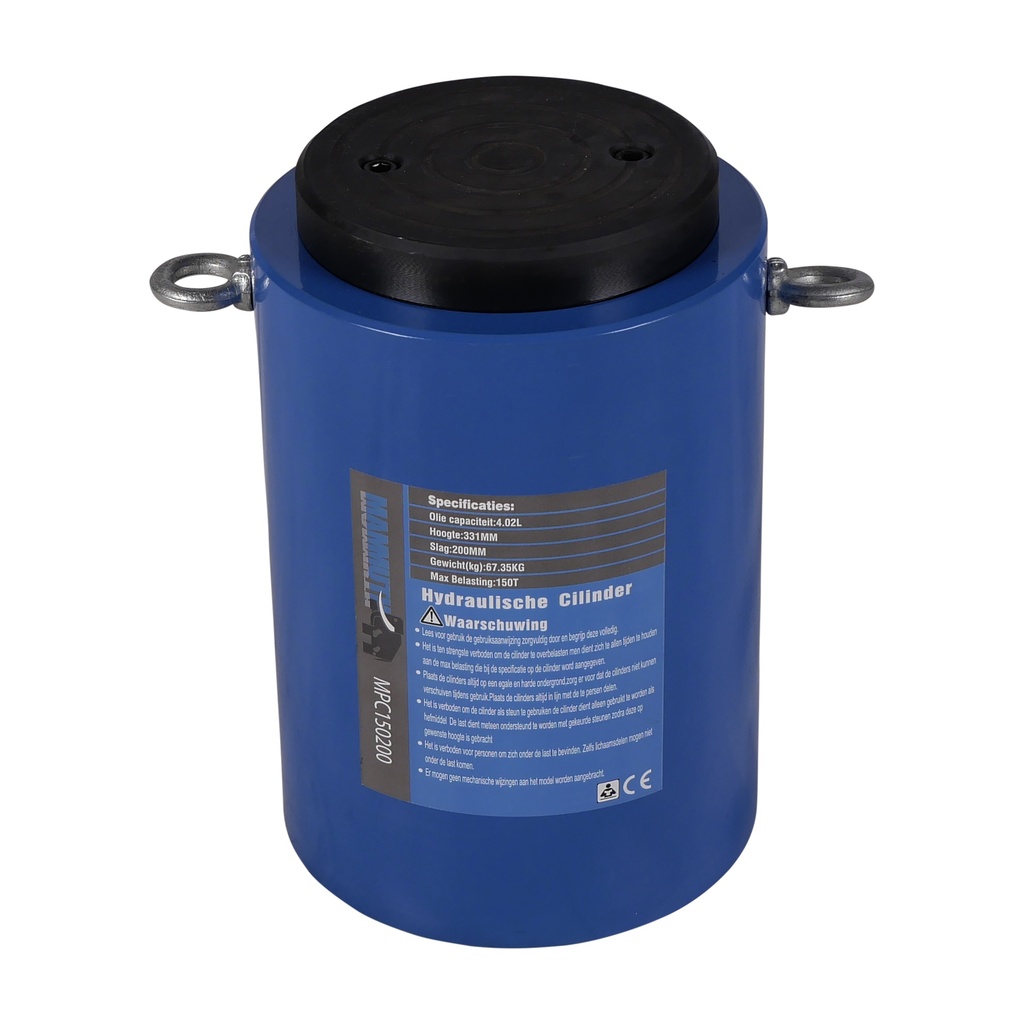

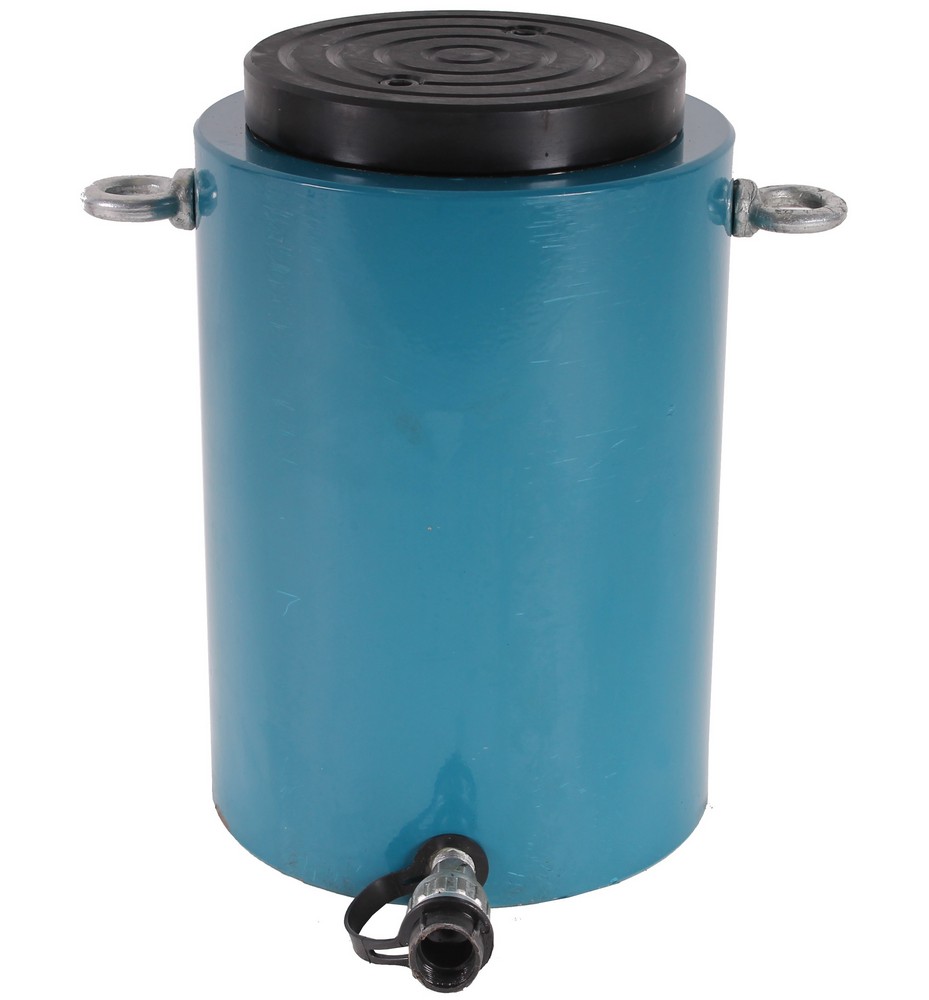

Cylinder 150 ton stroke 200mm
Article no. MPC150200
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
Technical specifications:
output = 150 ton
stroke = 200mm
effective area = 201cm^2
oil capacity = 4,020L
height of product = 316mm
extended height = 531mm
outside diameter = 207mm
bore diameter = 160mm
plunger diameter = 140mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 31mm
saddle is removable
max. pressure = 700bar
Specifications
Product dimensions
| Length | 275 mm |
|---|---|
| Width | 205 mm |
| Height | 330 mm |
| Weight | 70 kg |
Package dimensions
| Length | 285 mm |
|---|---|
| Width | 215 mm |
| Height | 340 mm |
| Weight | 72 kg |
EAN 8720028076963
