Lift tables

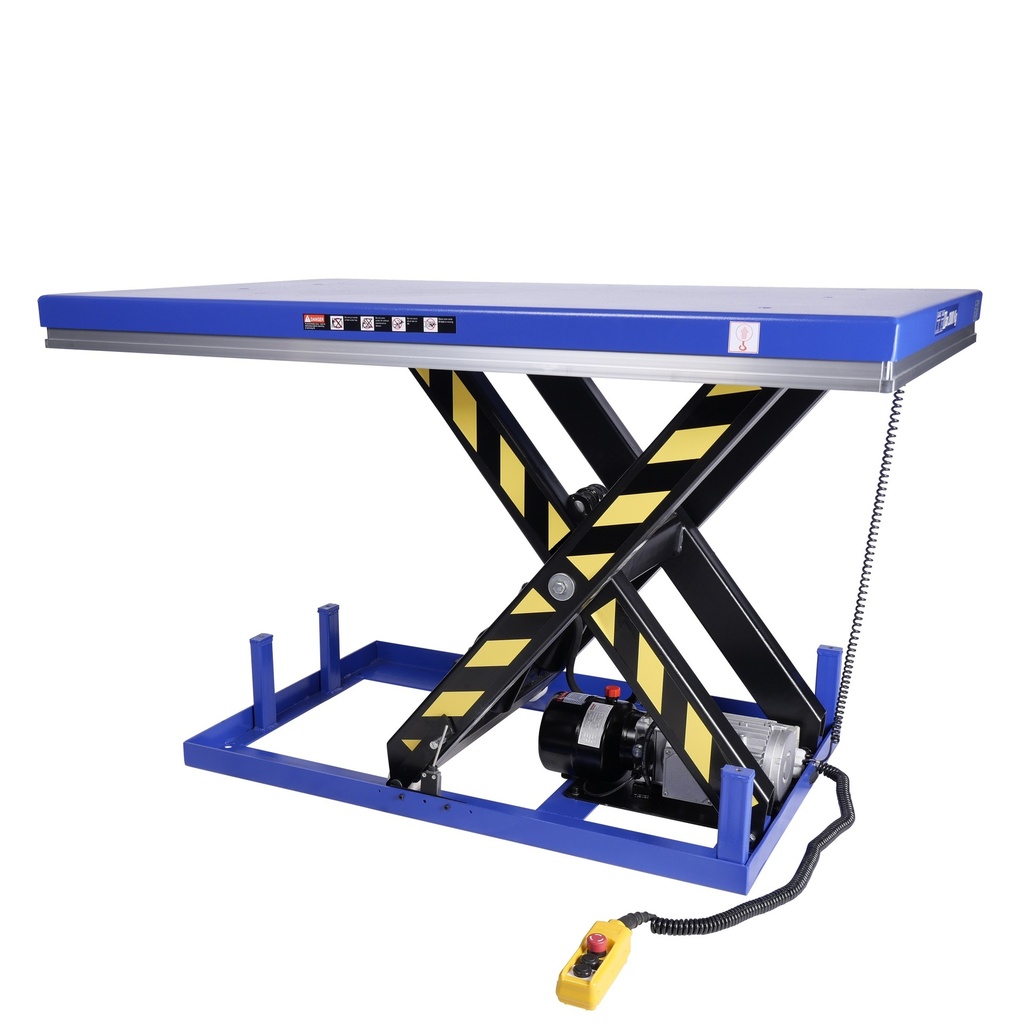

Electric lift table 2000kg 400V
Article no. LT22HE
Both built-in and surface-mounted possible
Ergonomic working height
Stepless height adjustment
Equipped with safety edge
Fixed design, with single scissors
- Lifting capacity
- 2000 kg
- Lifting height min.
- 230 mm
- Voltage
- 400V
- Lifting height max. incl. pads
- 1000 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Scissor lift table / scissor table / platform lift / lift table / fixed lift table
This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.
Due to the electrical operation, ergonomic work is guaranteed.
Technical specifications:
capacity = 2000kg
minimum height = 230mm
maximum height = 1000mm
platform size = 1600 x 1000mm
platform height = 60mm
lifting time unloaded = 17 sec.
cable control length = 3,7m
voltage = 400V
power = 2,2kW
oil capacity = 3L
Note: The lifting table is supplied without a plug!
Specifications
| Lifting capacity | 2000 kg |
|---|---|
| Lifting height min. | 230 mm |
| Voltage | 400V |
| Lifting height max. incl. pads | 1000 mm |
| Platform height | 60 mm |
| Cable control length | 3.7 m |
| Lifting time | 17 sec. |
| Oil capacity | 3 L |
Product dimensions
| Length | 1600 mm |
|---|---|
| Width | 1000 mm |
| Height | 1000 mm |
| Weight | 268 kg |
Package dimensions
| Length | 1630 mm |
|---|---|
| Width | 1030 mm |
| Height | 340 mm |
| Weight | 285 kg |
EAN 8720028087396
