Hydraulic tools

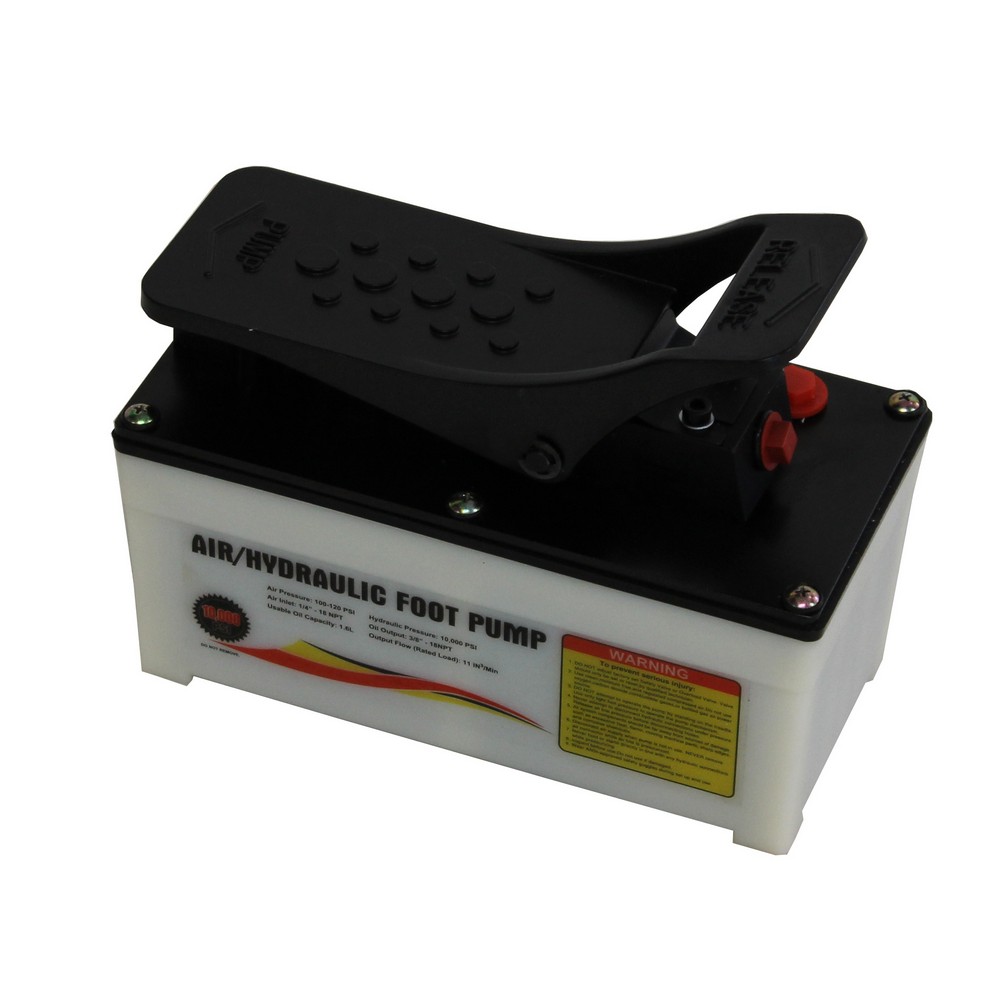

Hydraulic air pump plastic housing
Article no. HA2
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
Hydraulic air pump
- capacity = 1600ml
- pressure = 700 bar
- inlet port thread = 1/4"-18NPT
- outlet port thread = 3/8"-18NPT
- input air pressure = 6 - 10 bar
- output flow rate no load = 0,7L/min
- output flow rate with load = 0,18L/min
Specifications
Product dimensions
| Weight | 7 kg |
|---|
Package dimensions
| Length | 570 mm |
|---|---|
| Width | 280 mm |
| Height | 230 mm |
| Weight | 8 kg |
EAN 8720028063390
