Jacks and stands

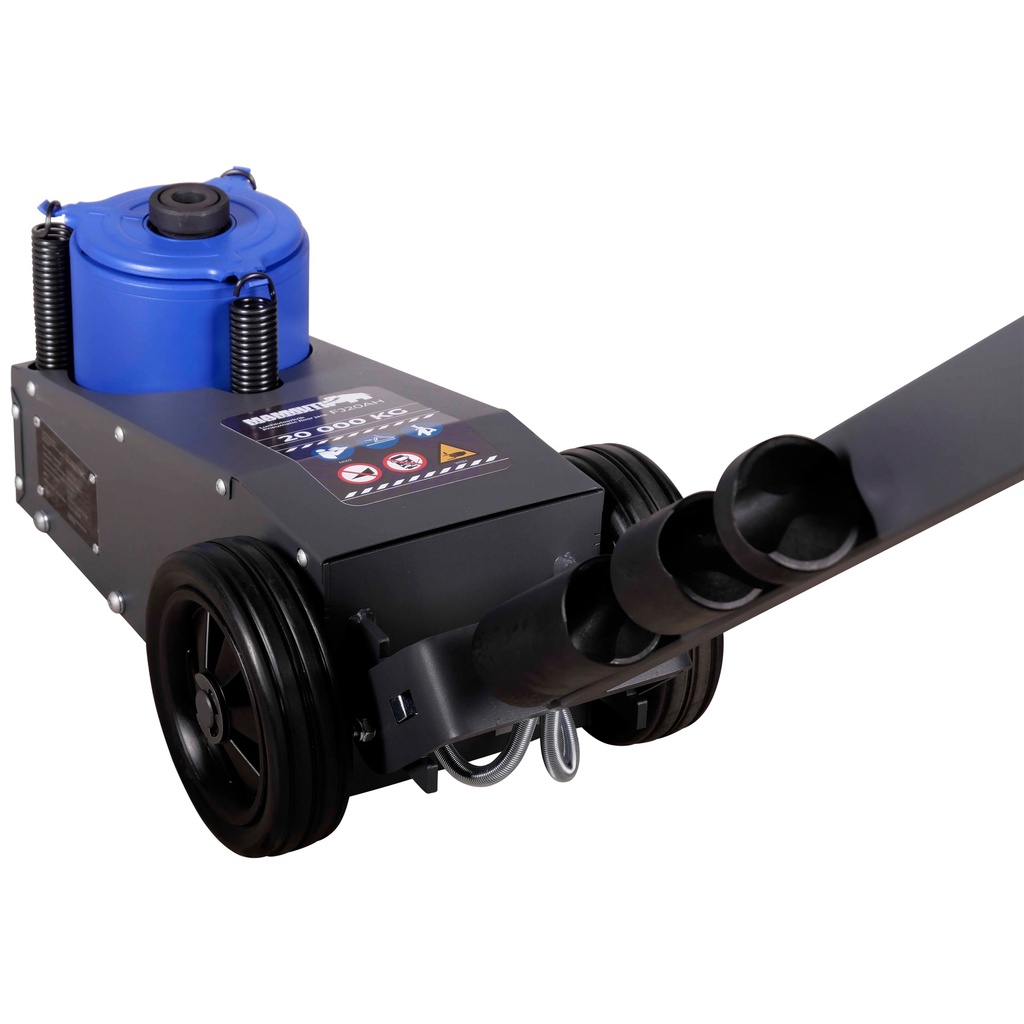

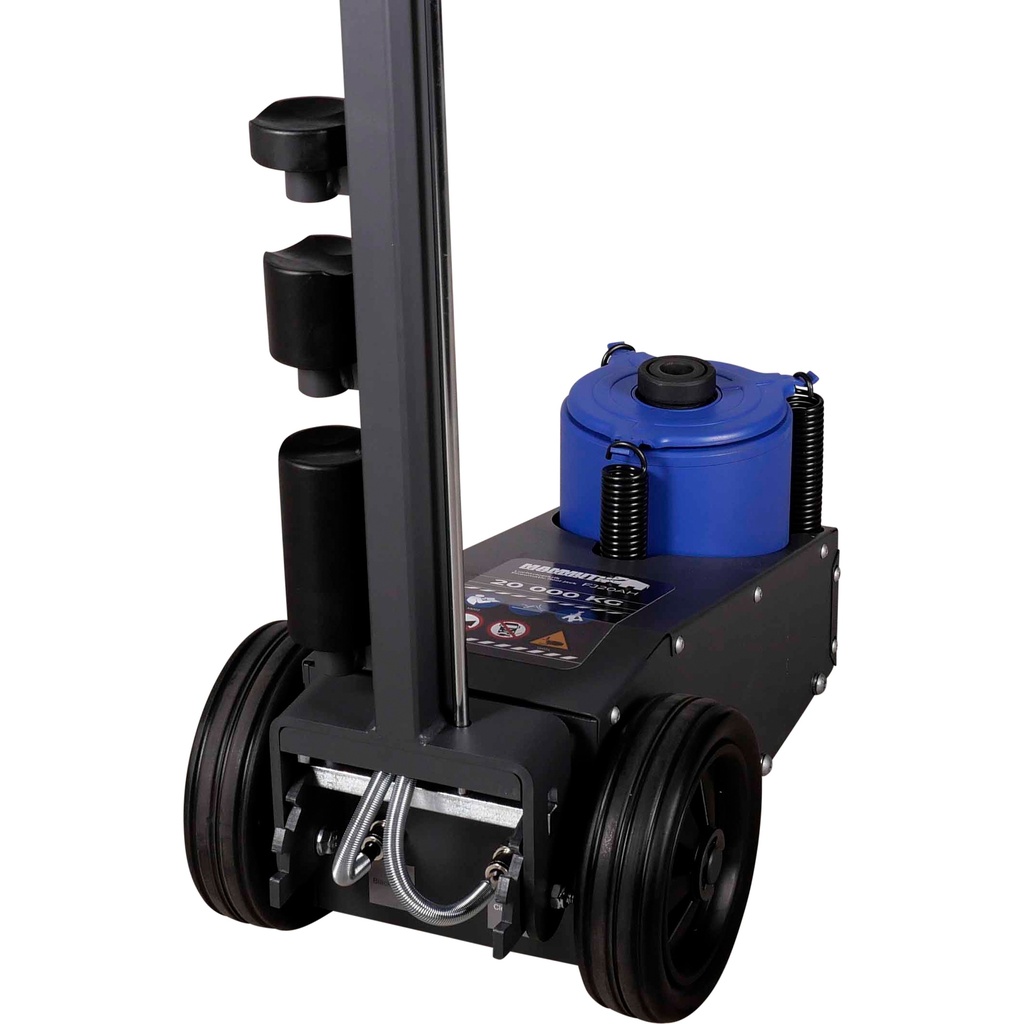

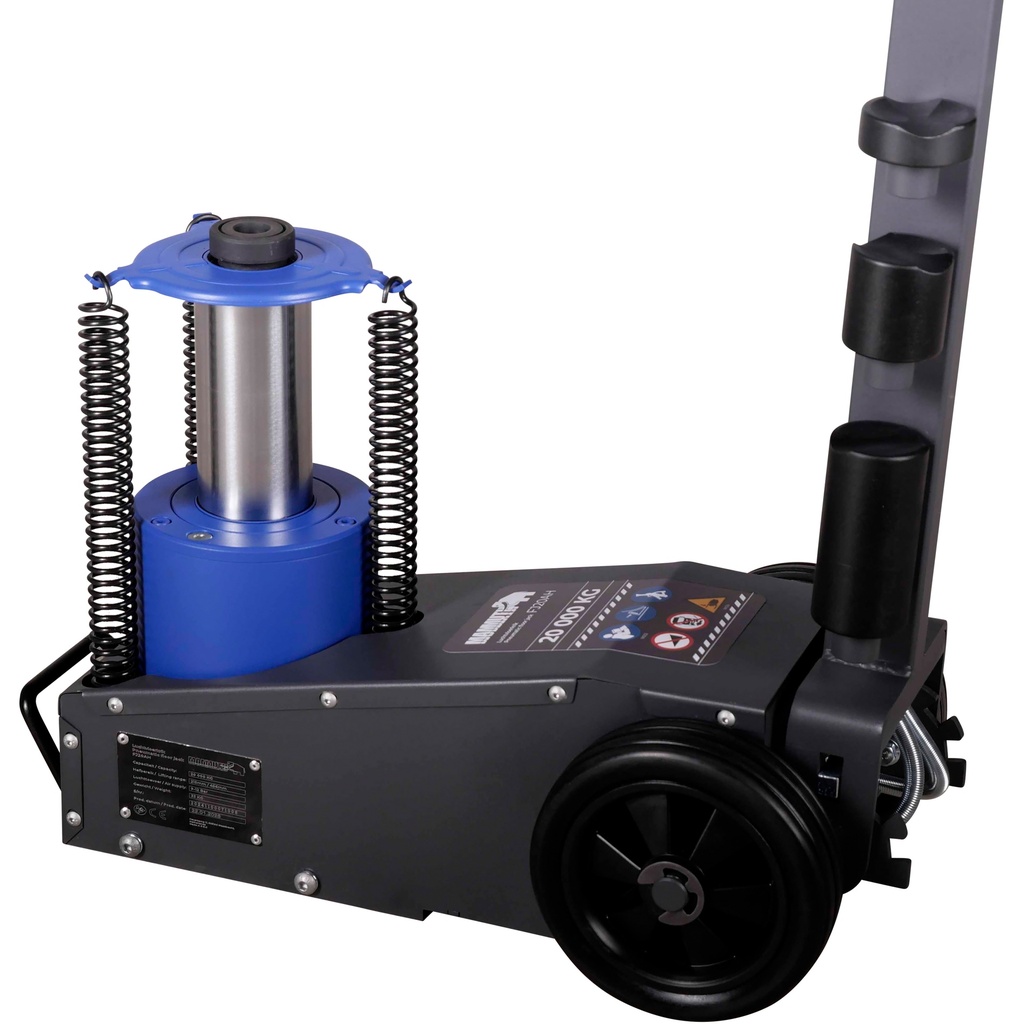

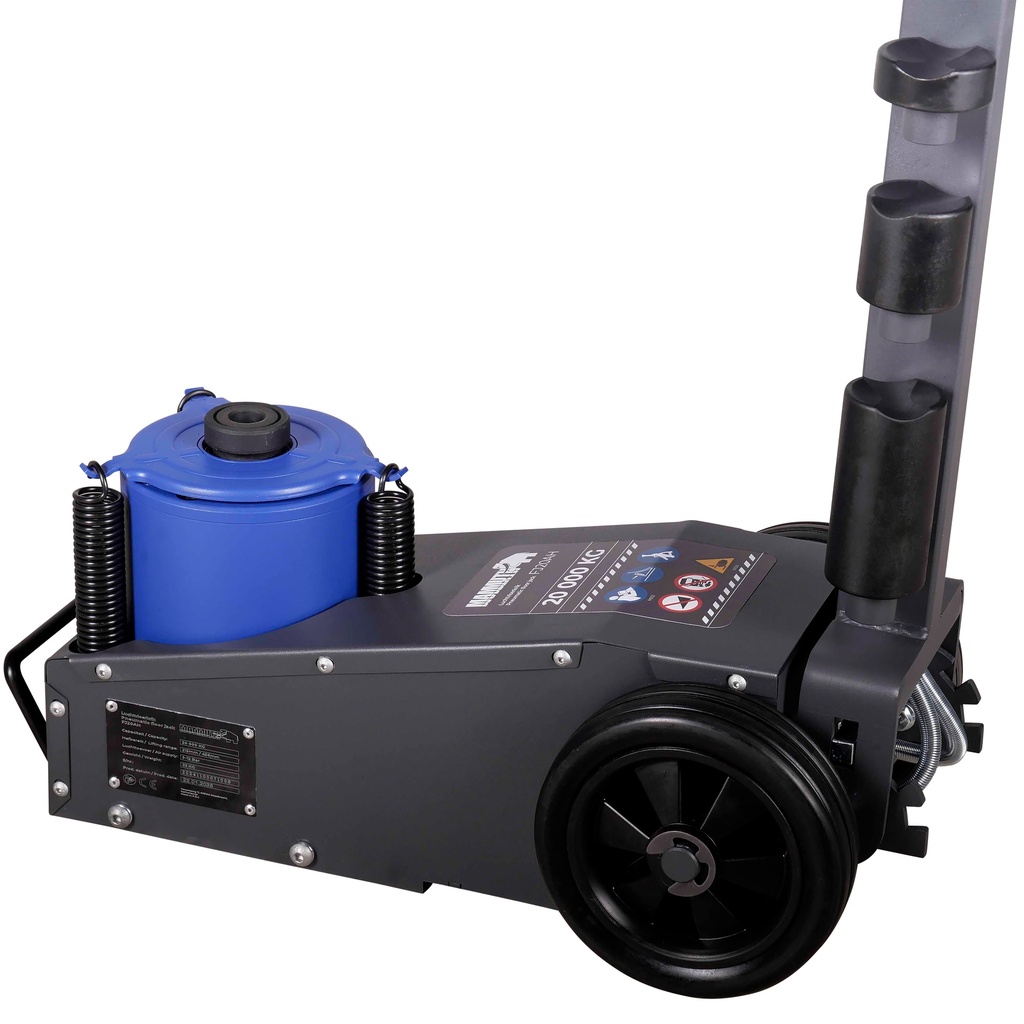

Mammuth Pneumatic hydraulic jack 20 ton
Article no. FJ20AH
- Pneumatic
- 3-position handle
- Ergonomic handle
- Height adapters
- Lifting capacity 20 tons
- Lifting capacity
- 20 ton
- Working air pressure
- 9 ~ 12 Bar
- Average air consumption
- 127 L/min
- Lifting height min.
- 215 mm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
The Mammuth 20 ton air jack is a powerful pneumatic jack designed for quickly and safely lifting heavy vehicles such as vans, trucks, and agricultural machinery. Thanks to the pneumatic-hydraulic operation, you can lift heavy loads effortlessly, ideal for professional use in garages and workshops.
The ergonomic handle is adjustable in three positions, offering a comfortable grip and optimal control during lifting and positioning. The jack comes with three height adapters (20 mm, 50 mm, and 100 mm), making it suitable for different vehicle heights and applications.
Key features:
-
Pneumatic
Fast and effortless operation.
-

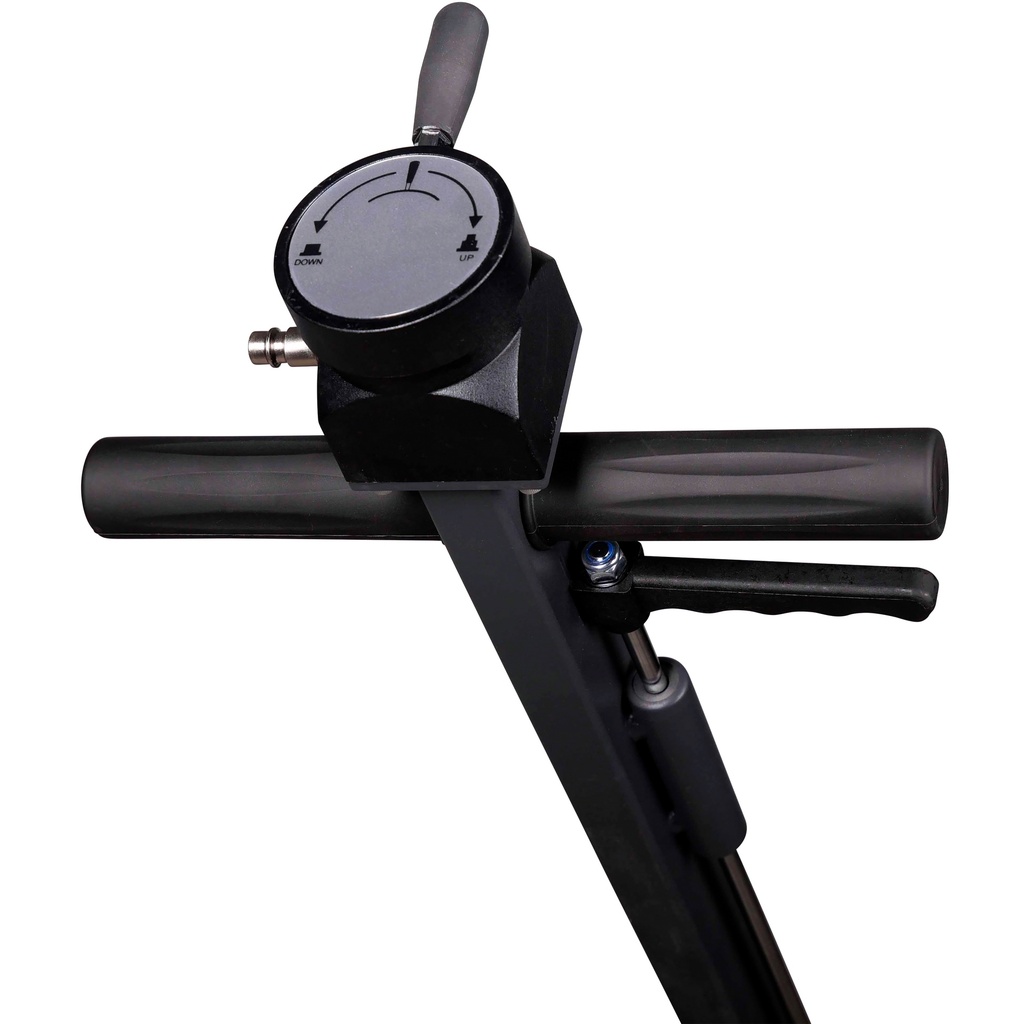

3-position handle
Comfortable and flexible to use.
-
Ergonomic handle
Ensures a secure grip and precise control.
-
Height adapters
Three adapters for various vehicle heights.
-
Lifting capacity 20 tons
Suitable for heavy vehicles.
This truck jack is a reliable and professional choice for anyone looking for a powerful pneumatic jack for heavy-duty workshop use.
Specifications
| Lifting capacity | 20 ton |
|---|---|
| Working air pressure | 9 ~ 12 Bar |
| Average air consumption | 127 L/min |
| Lifting height min. | 215 mm |
| Lifting height max. | 456 mm |
| Adapters included | 3 stuks (20mm, 50mm en 100mm) |
| Platform dimensions | ø47 mm |
| Handle length | 1335 mm |
| Wheel diameter | 165 mm |
| Oil capacity | 0.75 L |
| Oil type | OHCH15V |
Product dimensions
| Length | 530 mm |
|---|---|
| Width | 258 mm |
| Height | 1335 mm |
| Weight | 42.5 kg |
Package dimensions
| Length | 580 mm |
|---|---|
| Width | 290 mm |
| Height | 260 mm |
| Weight | 43.5 kg |
EAN 8720028141289
