Jacks and stands

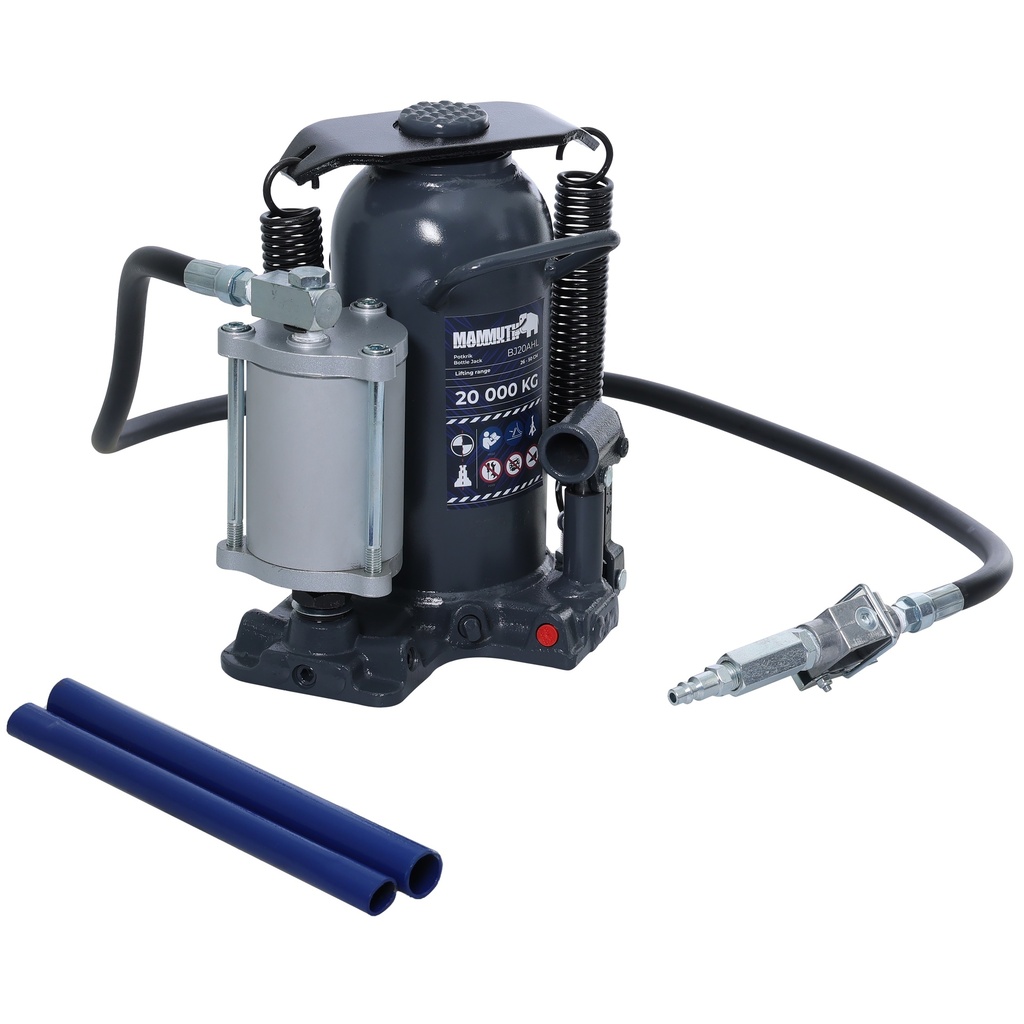

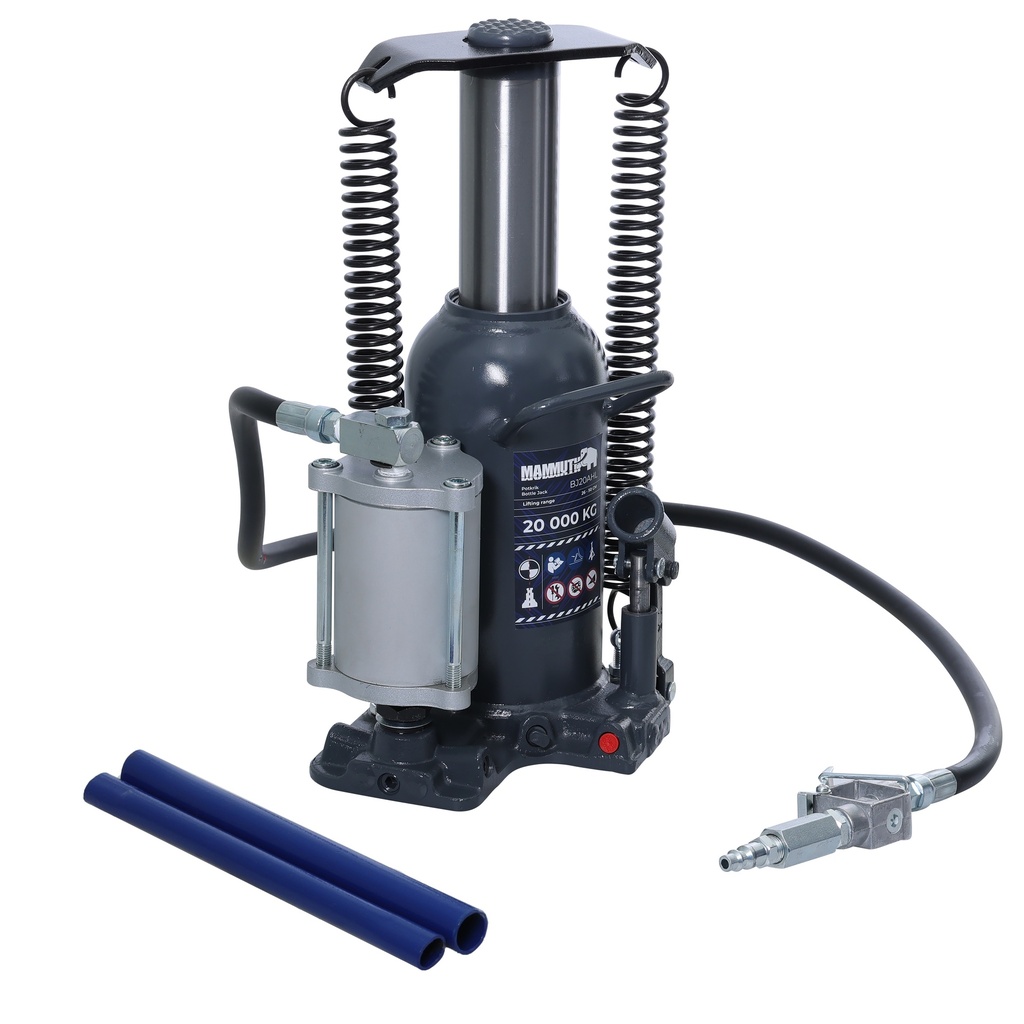

Mammuth pneumatic bottle jack 20 ton
Article no. BJ20AHL
- Pneumatic operation
- Lifting capacity 20 ton
-
Lifting range 261 to 510 mm
-
Adjustable screw
- Welded housing
- Lifting capacity
- 20000 kg
- Lifting height min.
- 261 mm
- Lifting height max.
- 510 mm
- Stroke
- 167 mmm
- Available through our dealer network
- Advice on the right capacity from your dealer
Description
The Mammuth pneumatic bottle jack is suitable for loads up to 20 ton and has a lifting range of 261 to 510 mm. This hydraulic bottle jack is suitable for lifting vehicles, machines and other loads.
In addition to pneumatic operation, manual use is also possible without compressed air. The adjustable screw allows additional height adjustment.
Key features:
- Pneumatic operation
Operation possible both pneumatically and manually.
- Lifting capacity 20 ton
Suitable for lifting vehicles, machines and other loads.
- Lifting range 261 to 510 mm
Minimum height of 261 mm and maximum height of 510 mm.

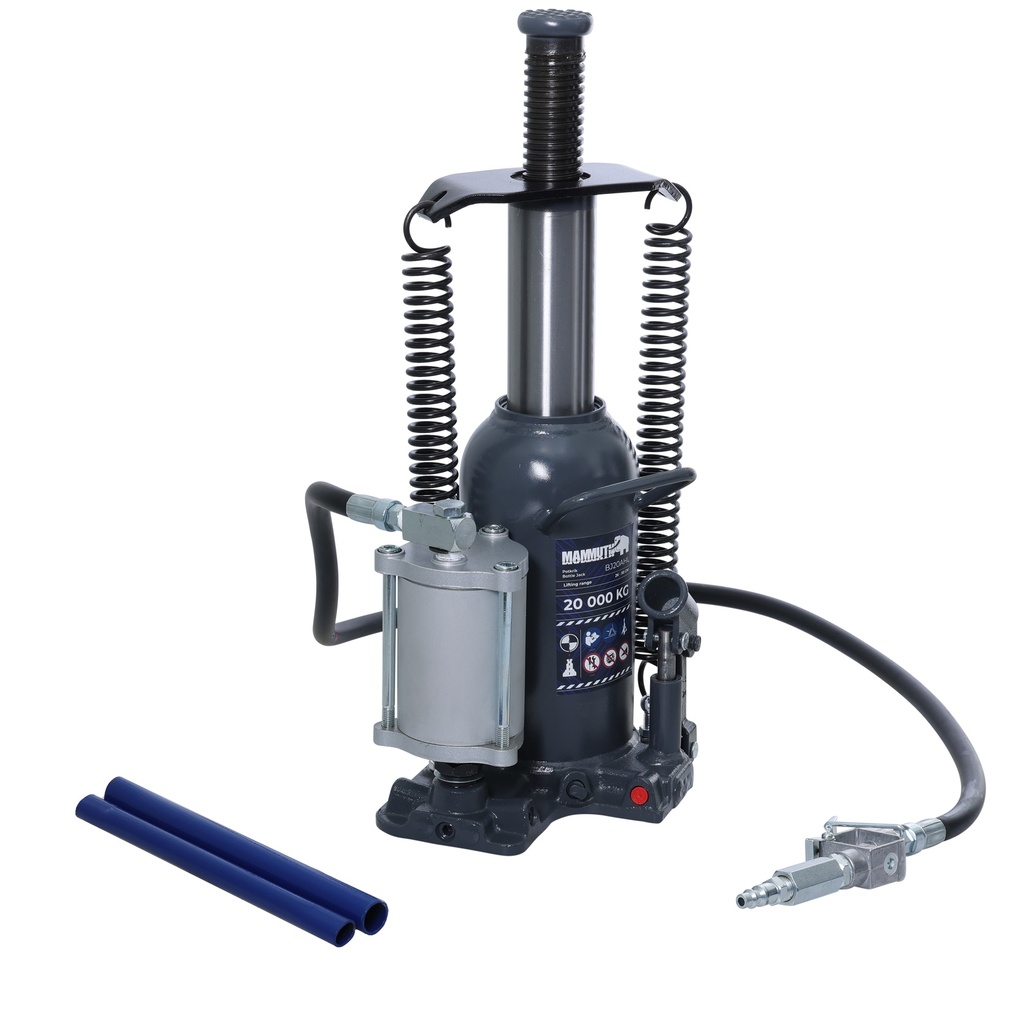

- Adjustable screw
Allows additional height adjustment before lifting.
- Welded housing
Forms a welded unit.
Specifications
| Lifting capacity | 20000 kg |
|---|---|
| Lifting height min. | 261 mm |
| Lifting height max. | 510 mm |
| Stroke | 167 mmm |
| Length of screw spindle | 82 m |
| Saddle diameter | 45 mm |
| Handle length | 496 mm |
| Oil type | CH32 |
| Working air pressure | 6 - 10 Bar |
Product dimensions
| Length | 185 mm |
|---|---|
| Width | 130 mm |
| Height | 245 mm |
Package dimensions
| Length | 280 mm |
|---|---|
| Width | 200 mm |
| Height | 280 mm |
| Weight | 14 kg |
EAN 8720028047000
